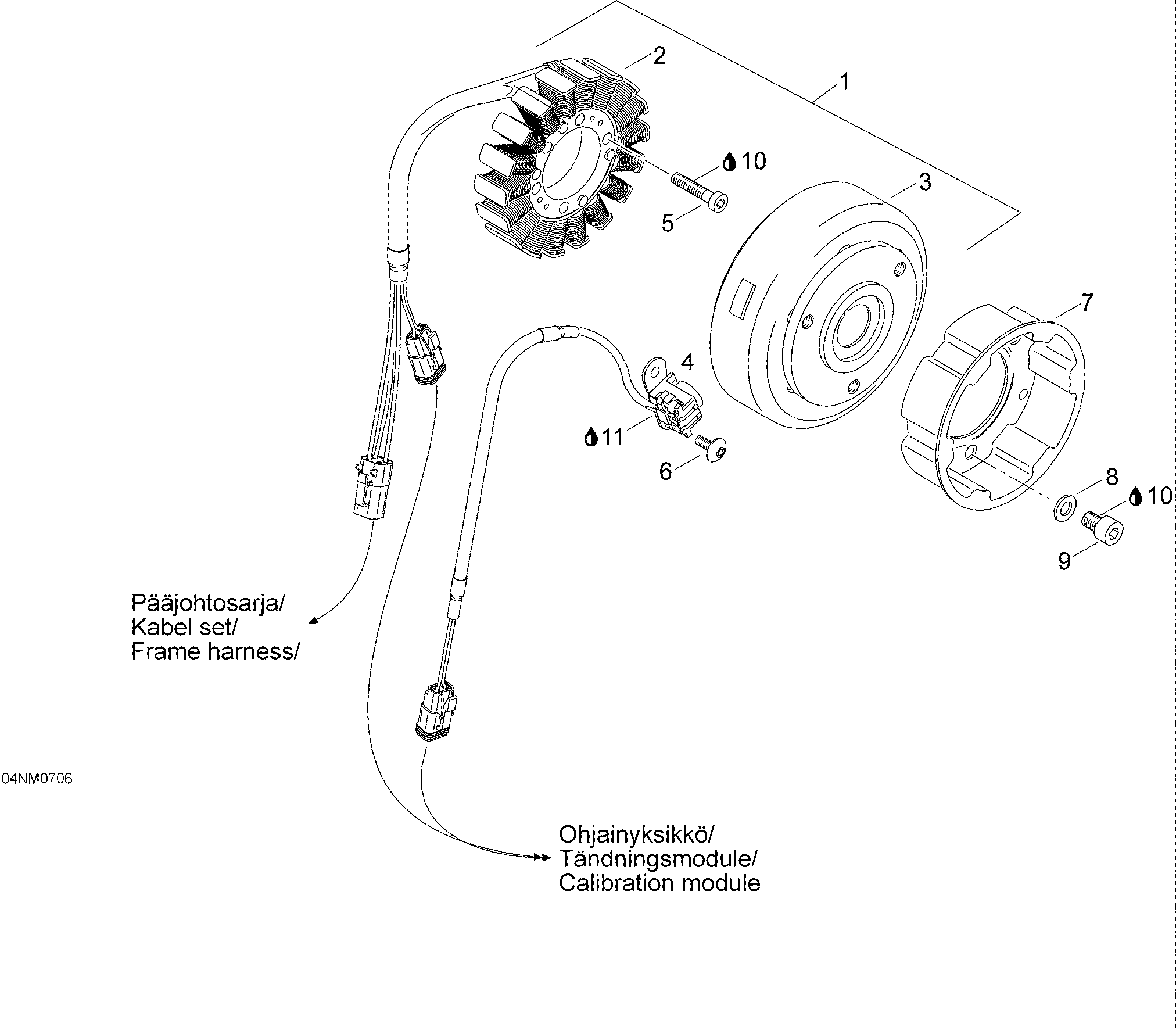

03- Magneto для BRP Lynx Rave RC 440 - 2007
-
№АртикулНазвание
-
1420891540 Magneto 12V/290W. Includes 1 to 4Magneto 12V/290W. Includes 1 to 4
-
2420888314 Stator assyStator assy
-
3420888323 Magneto flywheelMagneto flywheel
-
4420966837 Pick up assyPick up assy
-
5420840886 Allen screw M6 x 30Allen screw M6 x 30
-
6420640321 Taptite screw M6 x 16Taptite screw M6 x 16
-
7420852590 Starter cupStarter cup
-
8420827405 Lock washerLock washer
-
9420841520 Allen screw M8 x 12Allen screw M8 x 12
-
10420899785 Loctite 221/viol.Loctite 221/viol.
-
11293800060 Loctite 243, 10mlLoctite 243, 10ml
-
12420297710 PU-glue, sikaflex 255PU-glue, sikaflex 255
