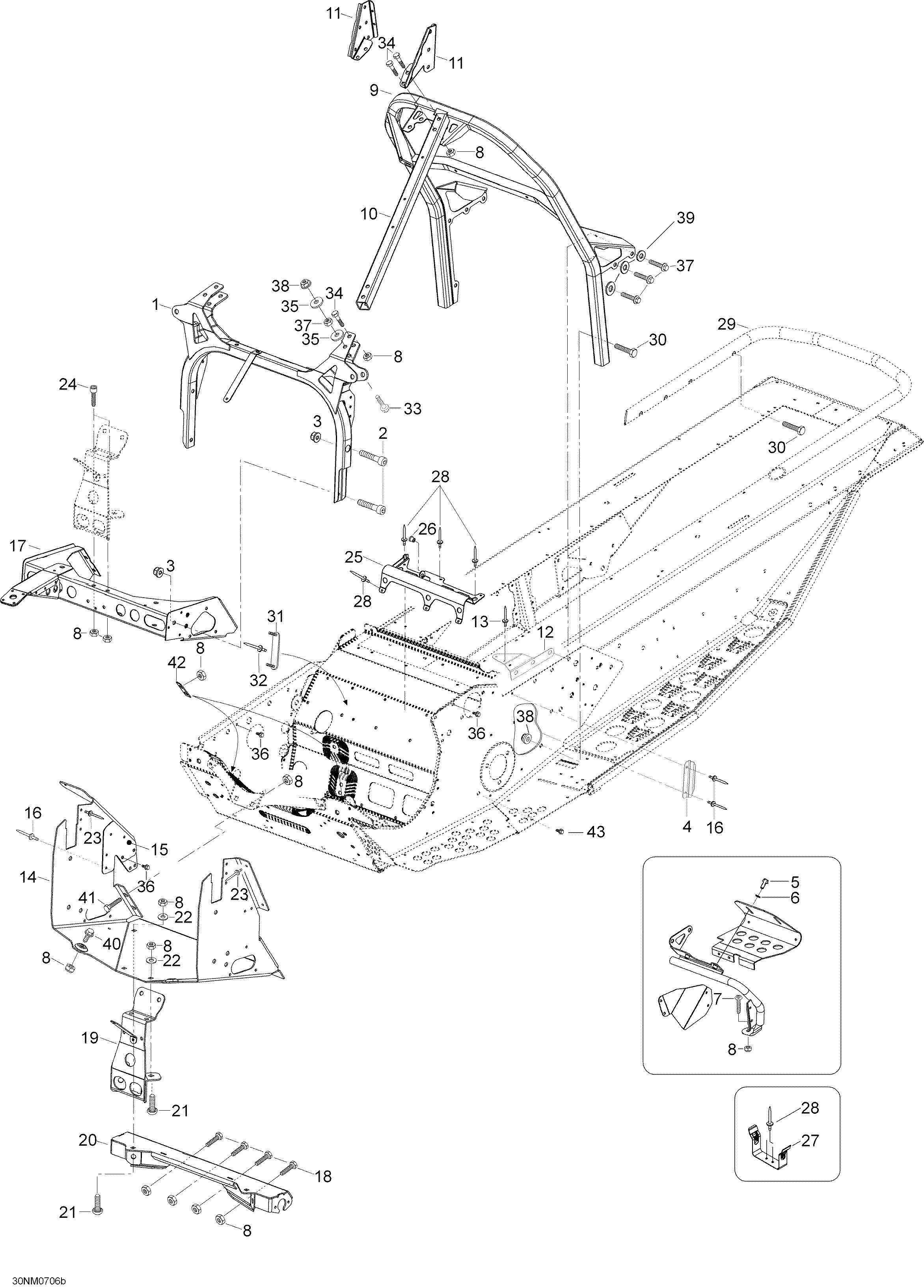

09- Frame And Components для BRP Lynx Rave RC 440 - 2007
-
№АртикулНазвание
-
1605253944 SupportSupport
-
240810 Socket head screw M8 x 20Socket head screw M8 x 20
-
333201 Elastic flanged nut M8Elastic flanged nut M8
-
4518317504 Cable protectorCable protector
-
540381 Socket head screw M6 x 20Socket head screw M6 x 20
-
620117 WasherWasher
-
740399 Socket head screw M8 x 16Socket head screw M8 x 16
-
833011 Elastic stop nut M8Elastic stop nut M8
-
9605255107 Handle supportHandle support
-
10605354045 Side barSide bar
-
11605353933 L.H. SupportL.H. Support
-
11605353934 R.H. SupportR.H. Support
-
12605353555 L.H. SupportL.H. Support
-
12605353556 R.H. SupportR.H. Support
-
1336083 RivetRivet
-
14605253893 Front cross memberFront cross member
-
15605454020 Support plateSupport plate
-
1636489 RivetRivet
-
17605253894 Front supportFront support
-
1840037 Screw M8 x 25Screw M8 x 25
-
19605253892 Front supportFront support
-
20605254414 SubframeSubframe
-
2140058 Locking screw M8 x 20Locking screw M8 x 20
-
2220010 Washer A8,4Washer A8,4
-
23605636005 RivetRivet
-
2440066 Socket head screw M8 x 16Socket head screw M8 x 16
-
25518323532 Air intake supportAir intake support
-
2636086 Rivet nut M6Rivet nut M6
-
27518322726 BracketBracket
-
2836083 RivetRivet
-
29605352470 Rear bumperRear bumper
-
3040336 Screw M8 x 20Screw M8 x 20
-
31605451470 Bracket, fuel pumpBracket, fuel pump
-
3236108 RivetRivet
-
3340123 Screw M8 x 70Screw M8 x 70
-
3440008 Screw M8 x 45Screw M8 x 45
-
3520010 Washer A8,4Washer A8,4
-
3640327 Screw M6 x 12Screw M6 x 12
-
37605640008 Screw M8 x 16Screw M8 x 16
-
3833201 Elastic flanged nut M8Elastic flanged nut M8
-
3920004 Washer A8,4Washer A8,4
-
4040386 Screw M8 x 30Screw M8 x 30
-
4140037 Screw M8 x 25Screw M8 x 25
-
42605452373 Support plateSupport plate
-
43518321954 PlugPlug
