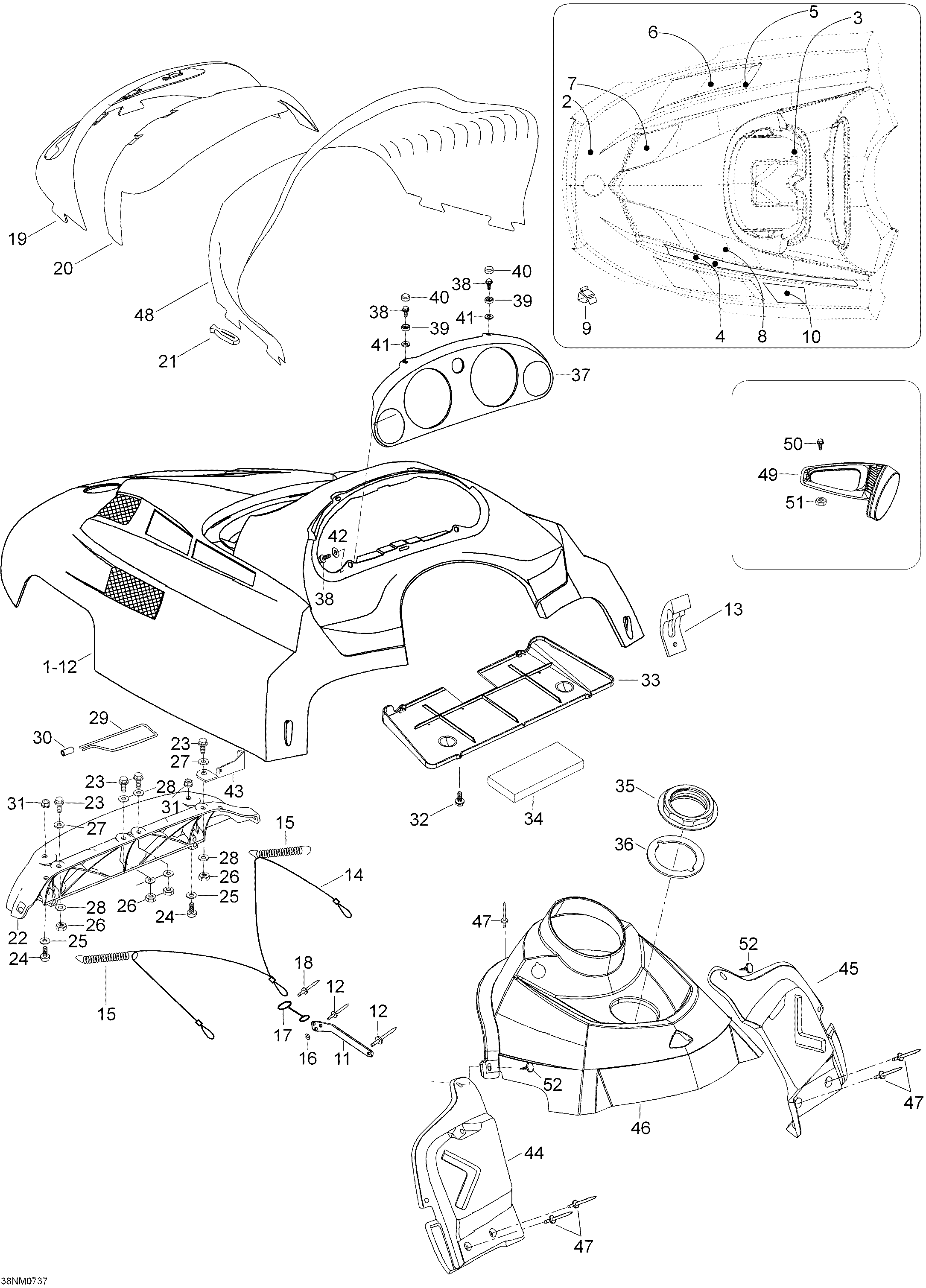

09- Hood And Console для BRP Lynx YETI PRO V-800 - 2007
-
№АртикулНазвание
-
1605154252 Hood. pre ass'y, Velvet blue. Includes 1 to 12Hood. pre ass'y, Velvet blue. Includes 1 to 12
-
2605350919 Heat protectorHeat protector
-
3605350920 Heat protectorHeat protector
-
4605350921 Heat protectorHeat protector
-
544001 Heat protectorHeat protector
-
6605350923 L.H. GrillL.H. Grill
-
6605350924 R.H. GrillR.H. Grill
-
7605350925 L.H. GrillL.H. Grill
-
7605350926 R.H. GrillR.H. Grill
-
8605350927 Grill, rearGrill, rear
-
9414227300 PidikejousiPidikejousi
-
10605350929 Heat protectorHeat protector
-
11605452657 BracketBracket
-
1236002 RivetRivet
-
13517302152 LatchLatch
-
14605351372 Retainer cableRetainer cable
-
155442675 SpringSpring
-
1620001 Washer A4,3Washer A4,3
-
175442870 BracketBracket
-
1836097 RivetRivet
-
19517302158 Moulding Head LampMoulding Head Lamp
-
20517302003 Windshiel supportWindshiel support
-
21570023800 Windshield latchWindshield latch
-
22517302631 Hinge halfHinge half
-
2340030 Hex. screw screw M6 x 20Hex. screw screw M6 x 20
-
2440381 Socket head screw M6 x 20Socket head screw M6 x 20
-
2520117 Washer 6mmWasher 6mm
-
2633010 Elastic stop nut M6Elastic stop nut M6
-
2720003 Washer A 6,4Washer A 6,4
-
2820009 Washer A 6,4Washer A 6,4
-
29605454779 PinPin
-
30605454780 BushingBushing
-
3133200 Elastic flanged nut M6Elastic flanged nut M6
-
32243141640 Screw M4,8 x 16Screw M4,8 x 16
-
33605151831 Air intake plateAir intake plate
-
34605355148 Heat protectorHeat protector
-
35517302043 Plastic nutPlastic nut
-
365447116 GasketGasket
-
37605354134 Indicator supportIndicator support
-
3840611 Screw, Plastofast 4 x 10Screw, Plastofast 4 x 10
-
39414436800 CirclipCirclip
-
40414436900 CapCap
-
4120037 Washer A4,3Washer A4,3
-
4220039 Washer 4mmWasher 4mm
-
43605351463 L.H. support, hoodL.H. support, hood
-
43605351464 R.H. support, hoodR.H. support, hood
-
44605251384 L.H. ConsoleL.H. Console
-
45605251385 R.H. ConsoleR.H. Console
-
46605251387 Center consoleCenter console
-
4736037 RivetRivet
-
48605152073 WindscreenWindscreen
-
49619400009 R.H. /L.HMirrorR.H. /L.HMirror
-
50732600030 ScrewScrew
-
5133062 Elastic flanged nut M5Elastic flanged nut M5
-
52414644300 DartDart
