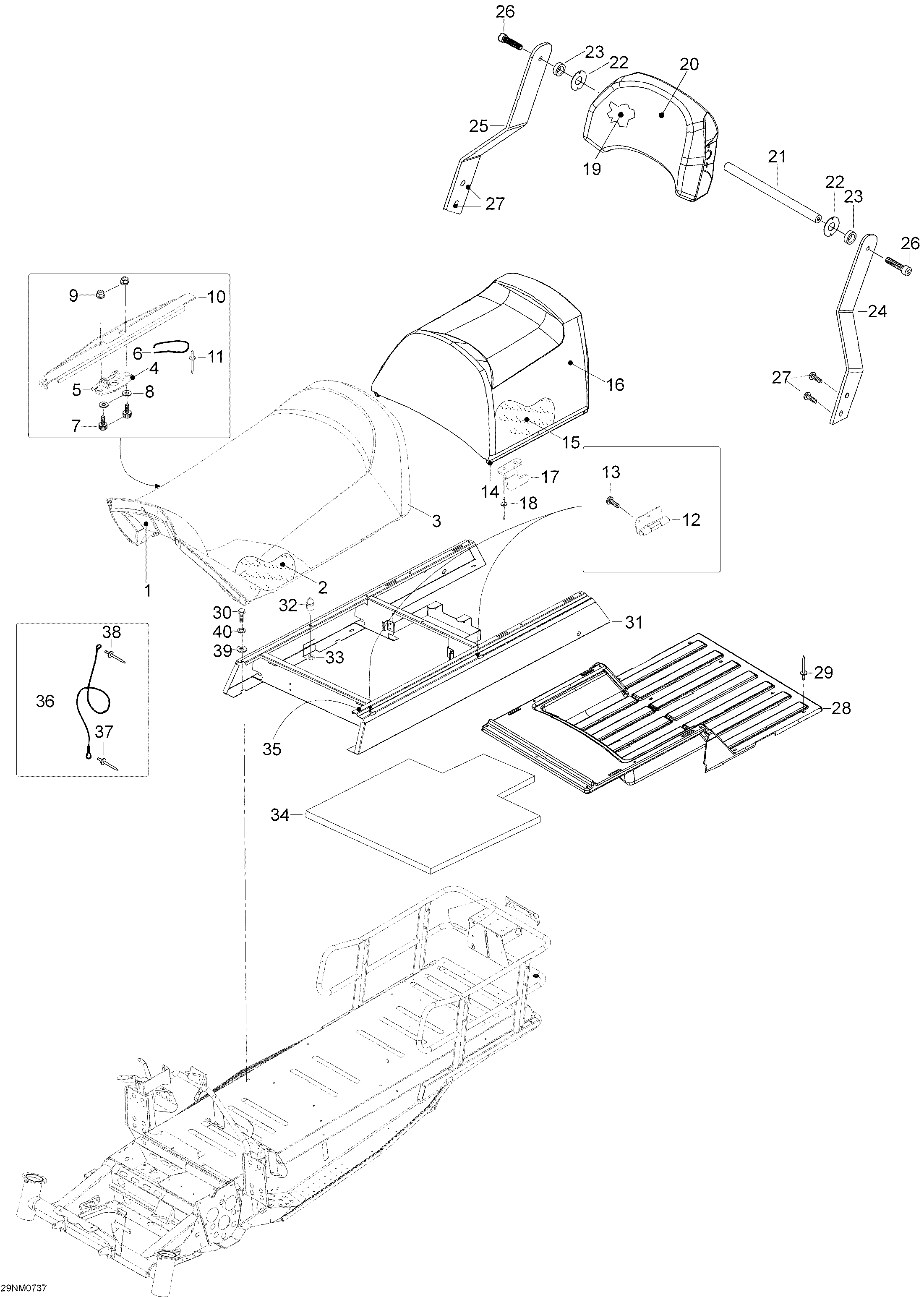

09- Seat для BRP Lynx YETI PRO V-800 - 2007
-
№АртикулНазвание
-
1605251388 Seat base, frontSeat base, front
-
2605254497 Foam, frontFoam, front
-
3605254494 Cover, frontCover, front
-
4269700076 CoverCover
-
5269700077 HandleHandle
-
6269700017 SpringSpring
-
740276 Socket head screw M6 x 25Socket head screw M6 x 25
-
820003 Washer A6,4Washer A6,4
-
933010 Elastic stop nut M6Elastic stop nut M6
-
10605352483 Support plateSupport plate
-
1136088 RivetRivet
-
12605351798 HingeHinge
-
1340890 Wronic-screw 4,2 x 16Wronic-screw 4,2 x 16
-
14605251390 Seat base, rear. Only available as kit P/N 605155187Seat base, rear. Only available as kit P/N 605155187
-
15605254498 Foam, rear. Only available as kit P/N 605155187Foam, rear. Only available as kit P/N 605155187
-
16605254496 Cover, rear. Only available as kit P/N 605155187Cover, rear. Only available as kit P/N 605155187
-
17605351808 L.H. Locking hook. Only available as kit P/N 605155187L.H. Locking hook. Only available as kit P/N 605155187
-
17605352007 R.H. Locking hook. Only available as kit P/N 605155187R.H. Locking hook. Only available as kit P/N 605155187
-
1836087 Rivet. Only available as kit P/N 605155187Rivet. Only available as kit P/N 605155187
-
19605254497 Foam. Only available as kit P/N 605155187Foam. Only available as kit P/N 605155187
-
20605353881 Cover. Only available as kit P/N 605155187Cover. Only available as kit P/N 605155187
-
21510004377 Upper backrest axle. Only available as kit P/N 605155187Upper backrest axle. Only available as kit P/N 605155187
-
22510004379 Washer. Only available as kit P/N 605155187Washer. Only available as kit P/N 605155187
-
23510004378 Rubber shim. Only available as kit P/N 605155187Rubber shim. Only available as kit P/N 605155187
-
24605354797 L.H. Arm. Only available as kit P/N 605155187L.H. Arm. Only available as kit P/N 605155187
-
25605354796 R.H. Arm. Only available as kit P/N 605155187R.H. Arm. Only available as kit P/N 605155187
-
26205982586 Socket head screw M8 x 25. Only available as kit P/N 605155187Socket head screw M8 x 25. Only available as kit P/N 605155187
-
2740316 Screw M8 x 20. Only available as kit P/N 605155187Screw M8 x 20. Only available as kit P/N 605155187
-
28605154593 CoverCover
-
2936036 RivetRivet
-
3040316 Hex. screw M6 x 16Hex. screw M6 x 16
-
31605254706 Seat baseSeat base
-
32605452035 Lock pinLock pin
-
3333010 Elastic stop nut M6Elastic stop nut M6
-
34605352460 FoamFoam
-
3528413 GasketGasket
-
36546777 Retainer cableRetainer cable
-
3736037 RivetRivet
-
3836489 RivetRivet
-
3920009 WasherWasher
-
4020052 Lock washerLock washer
