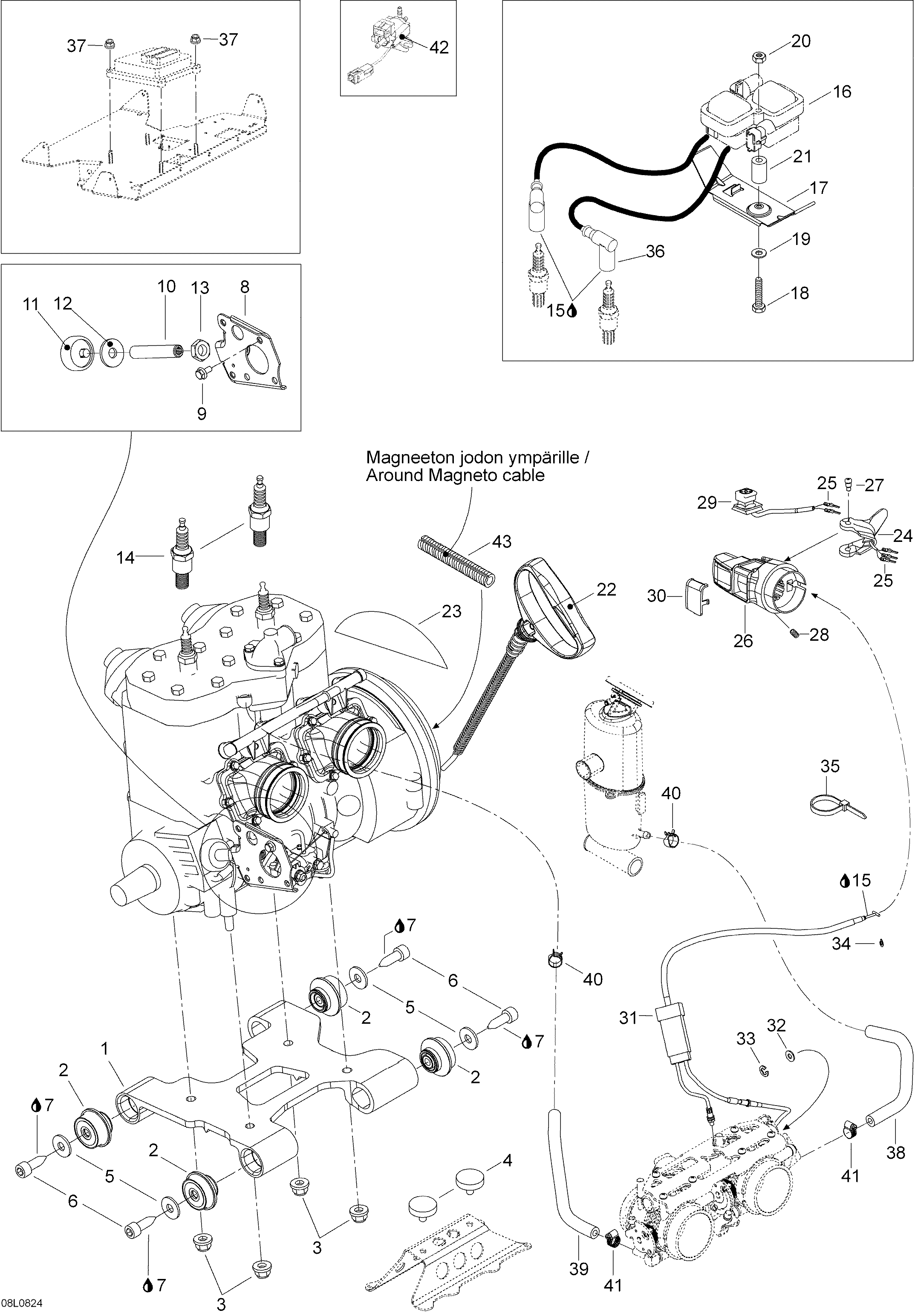

01- Engine And Engine Support для BRP Lynx Adventure GT 600 HO SDI - 2008
-
№АртикулНазвание
-
1512060050 Engine supportEngine support
-
2512059691 Rubber mountRubber mount
-
333074 Elastic flanged nut M10Elastic flanged nut M10
-
4512059738 Rubber damperRubber damper
-
5506151251 WasherWasher
-
6250000094 Screw M10 x 30Screw M10 x 30
-
7293800060 Liima Loctite 243, 10mlLiima Loctite 243, 10ml
-
8512059840 PlatePlate
-
940327 Hex. screw M6 x 12Hex. screw M6 x 12
-
10250500007 Stopper screwStopper screw
-
11512059610 StopperStopper
-
1220023 WasherWasher
-
13232170411 Nut M14Nut M14
-
14512060029 Spark plug BR8 ECSSpark plug BR8 ECS
-
15293550004 GreaseGrease
-
16278001546 Ignition coilIgnition coil
-
17512059865 Support, Ignition coilSupport, Ignition coil
-
1840084 Hex. screw M6 x 45Hex. screw M6 x 45
-
1920003 Washer A6,4Washer A6,4
-
2033010 Elastic stop nut M6Elastic stop nut M6
-
21512059812 SleeveSleeve
-
22572084400 GripGrip
-
23512059893 Reflection sheetReflection sheet
-
24512059107 Throttle handleThrottle handle
-
25605642628 Connector housingConnector housing
-
26512059763 Throttle handle bodyThrottle handle body
-
27732601143 ScrewScrew
-
28414440800 ScrewScrew
-
29515175410 Kill switchKill switch
-
30572100901 CoverCover
-
31512060087 Throttle cableThrottle cable
-
32234081100 WasherWasher
-
3331035 CirclipCirclip
-
3431038 CirclipCirclip
-
3527026 Tie RapTie Rap
-
36278000237 CapCap
-
3733200 Elastic flanged nut M6Elastic flanged nut M6
-
38605354600 HoseHose
-
39605354601 HoseHose
-
40513033029 ClampClamp
-
41605627003 ClampClamp
-
42512059809 BracketBracket
-
4328004 TubingTubing
