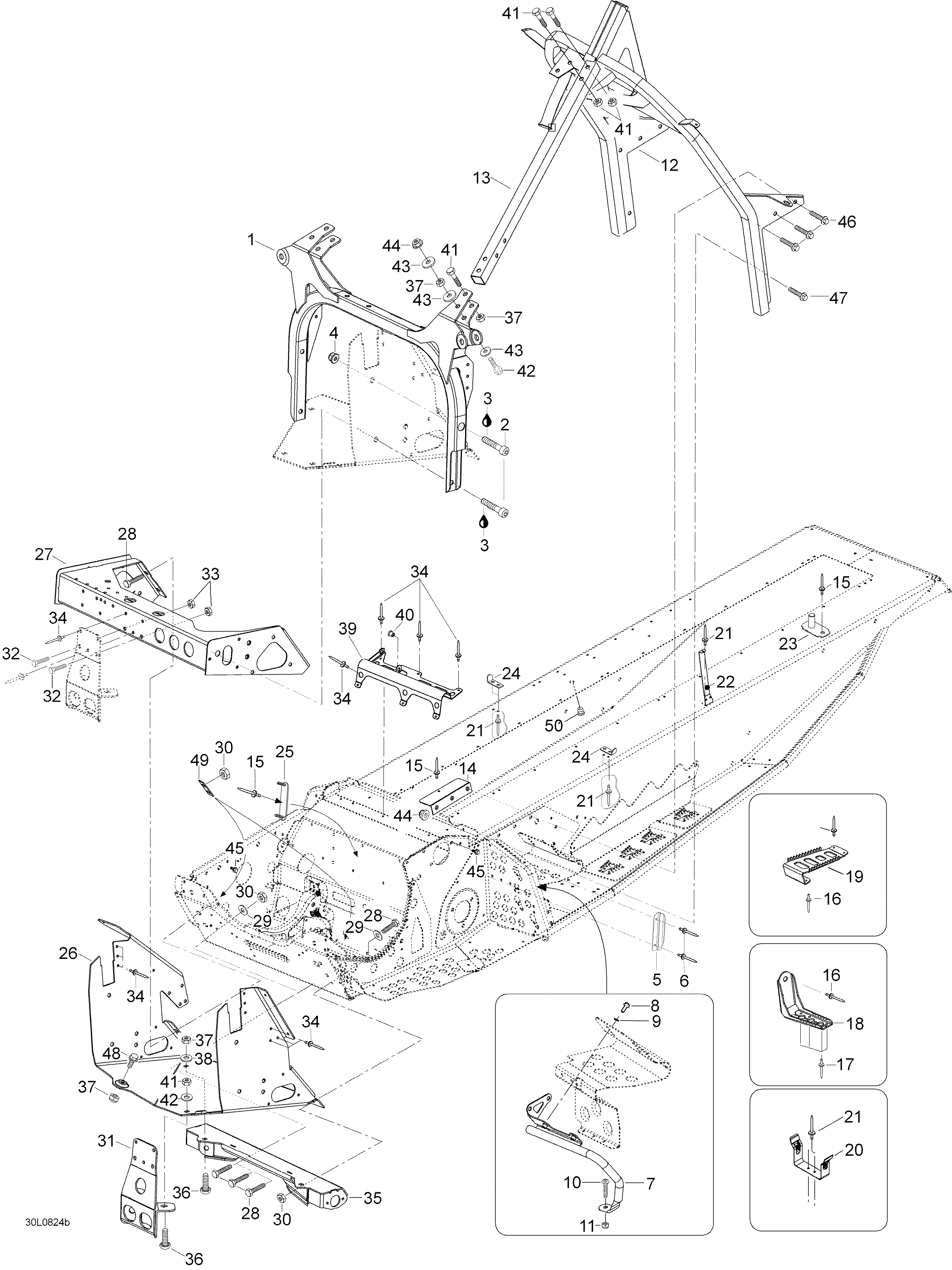

09- Frame And Components для BRP Lynx Adventure GT 600 HO SDI - 2008
-
№АртикулНазвание
-
1605253709 SupportSupport
-
240810 Socket head screw M8 x 20Socket head screw M8 x 20
-
3293800060 Liima Loctite 243 50mlLiima Loctite 243 50ml
-
433201 Elastic flanged nut M8Elastic flanged nut M8
-
5518317504 Cable protectorCable protector
-
6
-
7605351595 R.H. Toe hold supportR.H. Toe hold support
-
7605351594 L.H. Toe hold supportL.H. Toe hold support
-
840381 Socket head screw M6 x 20Socket head screw M6 x 20
-
920117 WasherWasher
-
1133011 Elastic stop nut M8Elastic stop nut M8
-
12605250887 Handle supportHandle support
-
13605353547 Side barSide bar
-
14605454115 PlatePlate
-
1536108 RivetRivet
-
1636489 RivetRivet
-
17605636005 RivetRivet
-
18605353939 R.H. Side bracketR.H. Side bracket
-
18605353938 L.H. Side bracketL.H. Side bracket
-
19520000492 FotrestFotrest
-
20518322726 Belt guardBelt guard
-
2136083 RivetRivet
-
22605353557 R.H. Steel stripR.H. Steel strip
-
22605353558 L.H. Steel stripL.H. Steel strip
-
23518324384 BracketBracket
-
24605452615 Seat bracketSeat bracket
-
25605451470 Bracket, fuel pumpBracket, fuel pump
-
26605253545 Front cross memberFront cross member
-
27605354991 Front supportFront support
-
2840037 Screw M8 x 25Screw M8 x 25
-
2920010 Washer A8,4Washer A8,4
-
3033011 Elastic stop nut M8Elastic stop nut M8
-
31605253612 Support plateSupport plate
-
3240030 Screw M6 x 20Screw M6 x 20
-
3333010 Elastic stop nut M6Elastic stop nut M6
-
3436108 RivetRivet
-
35605254414 SubframeSubframe
-
3640058 Locking screw M8 x 20Locking screw M8 x 20
-
3733011 Elastic stop nut M8Elastic stop nut M8
-
3820010 Washer A8,4Washer A8,4
-
39518323532 Air intake supportAir intake support
-
4036086 Rivet nut M6Rivet nut M6
-
4140008 Screw M8 x 45Screw M8 x 45
-
4240123 Screw M8 x 70Screw M8 x 70
-
4320010 Washer A8,4Washer A8,4
-
4433201 Elastic flanged nut M8Elastic flanged nut M8
-
4540327 Screw M6 x 12Screw M6 x 12
-
46605640008 Screw M8 x 20Screw M8 x 20
-
4740336 Screw M8 x 20Screw M8 x 20
-
4840386 Screw M8 x 30Screw M8 x 30
-
49605452373 WasherWasher
-
50518321954 PlugPlug
