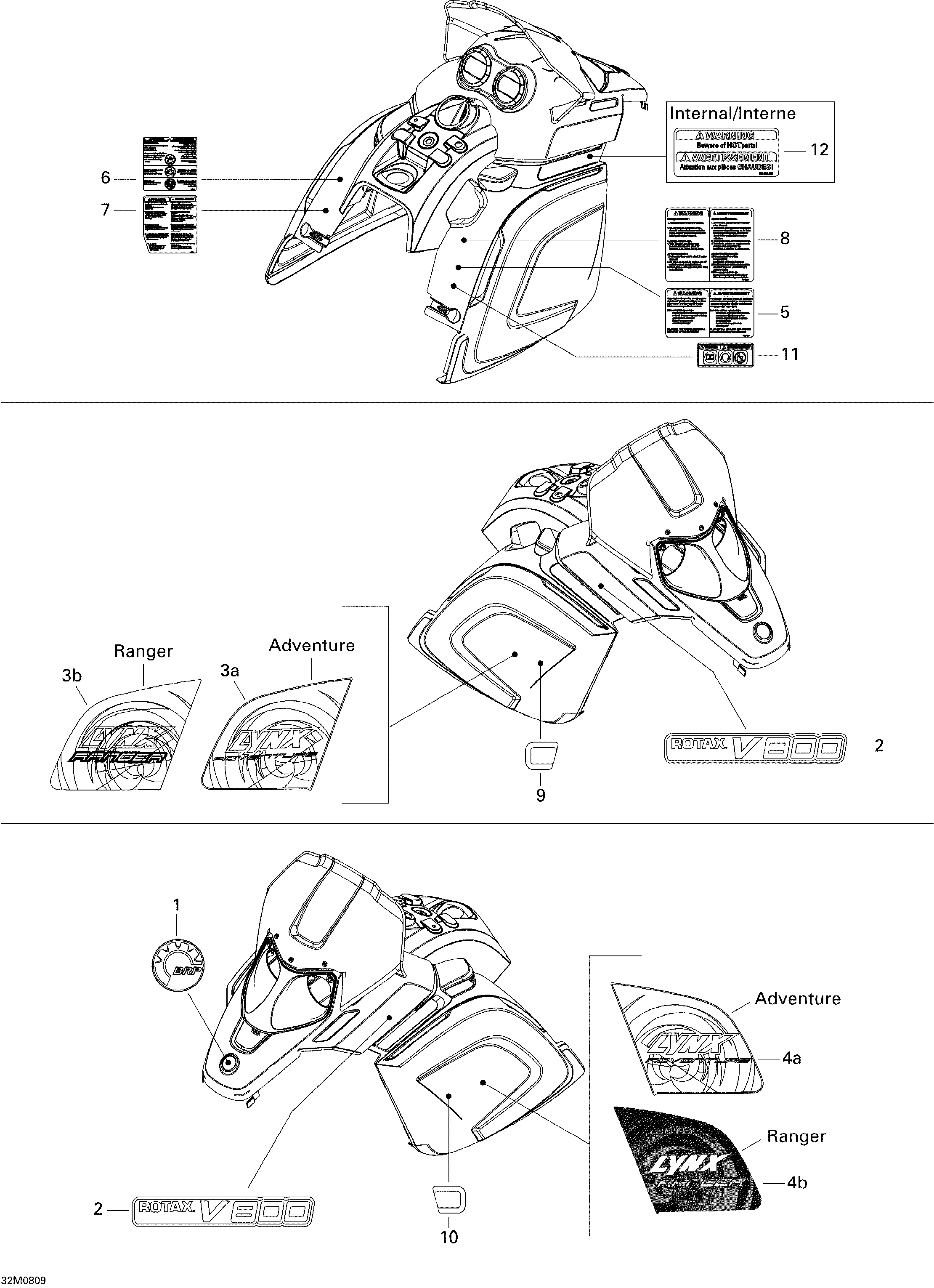

09- Decals ADVENTURE для BRP Lynx Adventure V-800 - 2008
-
№АртикулНазвание
-
1219902468 BRP Logo, 48 mmBRP Logo, 48 mm
-
2605353004 Hood Decal, Rotax V800Hood Decal, Rotax V800
-
3a516003235 RH Side Decal. AdventureRH Side Decal. Adventure
-
4a516003234 LH Side Decal. AdventureLH Side Decal. Adventure
-
5516003026 Security Label, Passenger NumberSecurity Label, Passenger Number
-
6516002908 Security Label, GeneralSecurity Label, General
-
7516003029 Security Label, FamiliarizationSecurity Label, Familiarization
-
8516003024 Security Label, StartingSecurity Label, Starting
-
9516001910 RH Protector DecalRH Protector Decal
-
10516001911 LH Protector DecalLH Protector Decal
-
11516003027 Europe Pictogram DecalEurope Pictogram Decal
-
12516002965 Security Label, Hot PartsSecurity Label, Hot Parts
