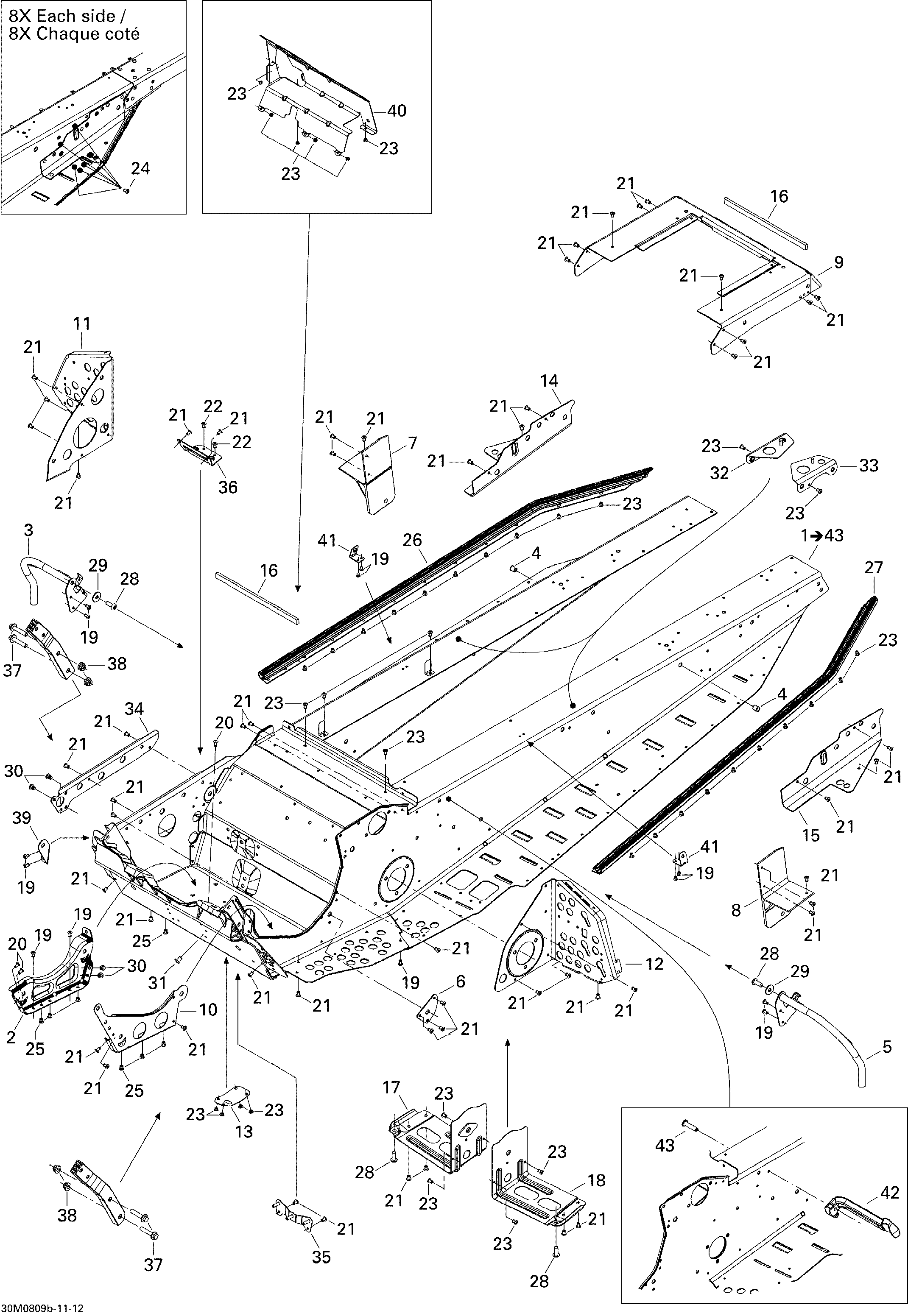

09- Frame Adventure для BRP Lynx Adventure V-800 - 2008
-
№АртикулНазвание
-
1415129311 Frame 136 Ass'y. Includes 1 to 43Frame 136 Ass'y. Includes 1 to 43
-
2518323346 Engine Support, BlackEngine Support, Black
-
3518324162 RH Toe Hold SupportRH Toe Hold Support
-
4415107300 InsertInsert
-
5518324163 LH Toe Hold SupportLH Toe Hold Support
-
6518323507 Outer ReinforcementOuter Reinforcement
-
7518325343 RH Slide BracketRH Slide Bracket
-
8518325344 LH Slide BracketLH Slide Bracket
-
9518324831 Extention FrameExtention Frame
-
10518323995 Inner Reinforcement, BlackInner Reinforcement, Black
-
11518325196 RH Footrest ReinforcementRH Footrest Reinforcement
-
12518324527 LH Footrest ReinforcementLH Footrest Reinforcement
-
13518324169 PlatePlate
-
14518325039 RH Tunnel LinerRH Tunnel Liner
-
15518325040 LH Tunnel LinerLH Tunnel Liner
-
16293200104 GasketGasket
-
17518325345 RH Footrest Reinforcement, BlackRH Footrest Reinforcement, Black
-
18518325346 LH Footrest Reinforcement, BlackLH Footrest Reinforcement, Black
-
19390909200 Avex RivetAvex Rivet
-
20390909100 Avex RivetAvex Rivet
-
21390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
22390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
23390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
24390908600 RivetRivet
-
25390910300 Henrob RivetHenrob Rivet
-
26518324957 RH RollerRH Roller
-
27518324958 LH RollerLH Roller
-
28205982086 Socket Head Screw M8 X 20, Scotch GripSocket Head Screw M8 X 20, Scotch Grip
-
29234082410 Flat Washer 8 mmFlat Washer 8 mm
-
30293150096 RivetRivet
-
31293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
32518324385 RH Frame Reinforcement, BlackRH Frame Reinforcement, Black
-
33518324386 LH Frame Reinforcement, BlackLH Frame Reinforcement, Black
-
34518323328 RH Tunnel StiffenerRH Tunnel Stiffener
-
35518324599 HolderHolder
-
36518324207 Holder PlateHolder Plate
-
37207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
38233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
39518324906 RH SupportRH Support
-
40514054097 Heat ShieldHeat Shield
-
41518324688 Trunk BracketTrunk Bracket
-
42517302448 Panel LatchPanel Latch
-
43390410100 Pop Rivet 3/16”Pop Rivet 3/16”
