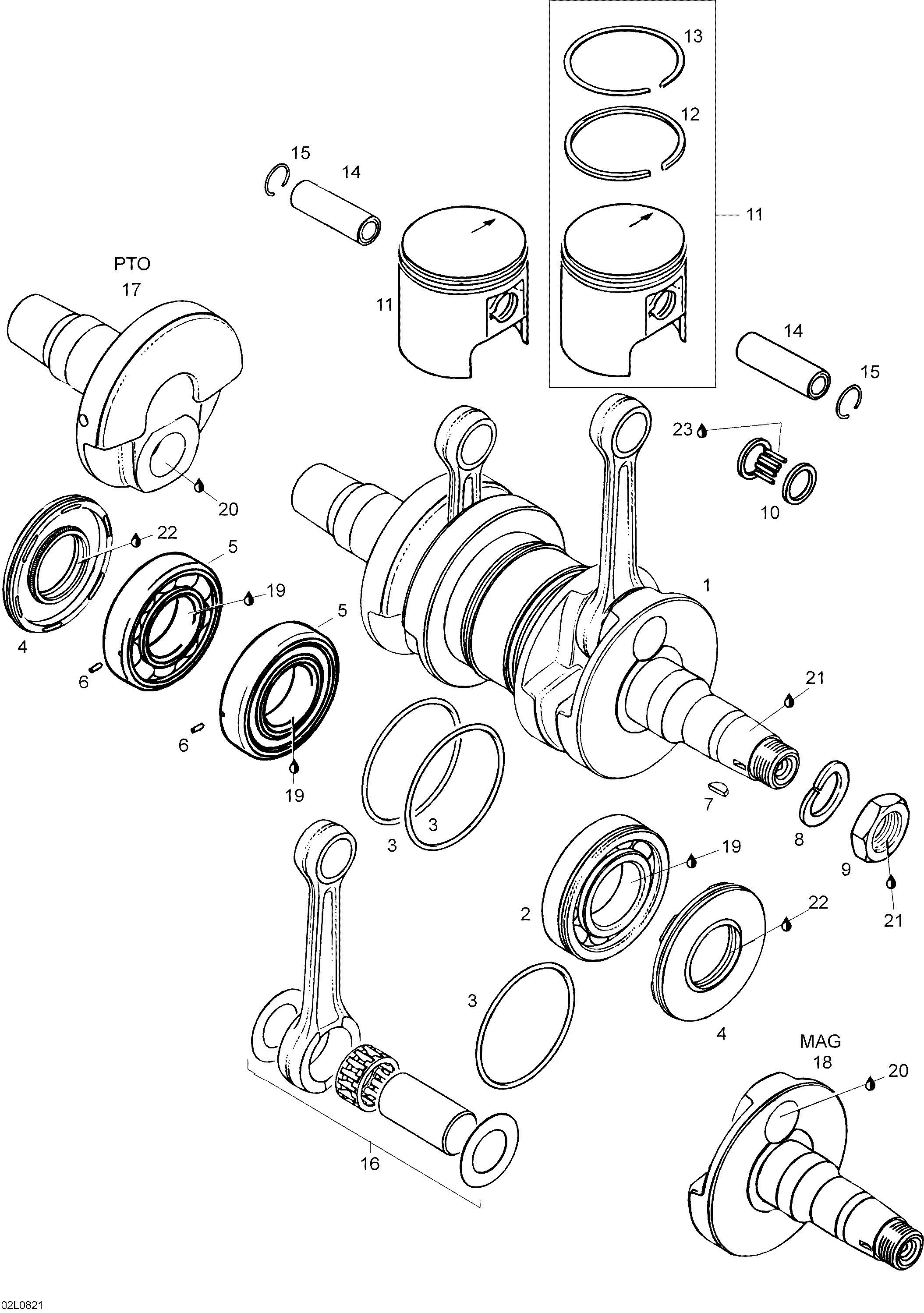

01- Crankshaft для BRP Lynx Forest Fox - 2008

№

Артикул

Название
1

420889630 Crankshaft ass'y. Includes 1 to 7

Crankshaft ass'y. Includes 1 to 7

92 120 ₽
2

420832570 Ball bearing >

Ball bearing >

4 050 ₽
3

420250165 O-ring 64 mm

O-ring 64 mm

0 ₽
4

420831950 Oil seal

Oil seal

0 ₽
5

420832574 Ball Bearing >. Includes 5 to 6

Ball Bearing >. Includes 5 to 6

15 440 ₽
6

420929972 Drive pin

Drive pin

280 ₽
7

420246055 Woodruff Key

Woodruff Key

230 ₽
8

420945759 Lock washer 22 mm

Lock washer 22 mm

660 ₽
9

420842230 Hex. nut M22

Hex. nut M22

0 ₽
10

420832325 Needle bearing

Needle bearing

2 590 ₽
11

420887485 Piston ass'y, 67.43 mm. Includes 11 to 13

Piston ass'y, 67.43 mm. Includes 11 to 13

13 460 ₽
11

420887486 Piston ass'y, 67.68 mm. Includes 11 to 13

Piston ass'y, 67.68 mm. Includes 11 to 13

13 460 ₽
11

420887487 Piston ass'y, 67.93 mm. Includes 11 to 13

Piston ass'y, 67.93 mm. Includes 11 to 13

13 460 ₽
12

420915960 Rectangular ring 67.5 mm

Rectangular ring 67.5 mm

1 840 ₽
12

420915961 Rectangular ring 67.75 mm

Rectangular ring 67.75 mm

3 800 ₽
12

420915962 Rectangular ring 68 mm

Rectangular ring 68 mm

3 800 ₽
13

420915845 Semi-Trapez ring 67.5 mm

Semi-Trapez ring 67.5 mm

4 210 ₽
13

420915846 Semi-trapez ring 67.75 mm

Semi-trapez ring 67.75 mm

5 040 ₽
13

420915847 Semi-Trapez ring 68 mm

Semi-Trapez ring 68 mm

5 040 ₽
14

420916136 Piston pin

Piston pin

2 370 ₽
15

420945735 Circlip

Circlip

1 610 ₽
16

420889634 Rod repair kit

Rod repair kit

14 510 ₽
17

420818204 Crankshaft half PTO

Crankshaft half PTO

17 370 ₽
18

420819010 Crankshaft half MAG

Crankshaft half MAG

23 810 ₽
19

293800070 Loctite 767, antiseize lubricant, 8 oz

Loctite 767, antiseize lubricant, 8 oz

3 130 ₽
20

413711400 Loctite 648, 10ml

Loctite 648, 10ml

3 420 ₽
21

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml

2 760 ₽
22

413707000 Molykote 111

Molykote 111

7 550 ₽
23

413802900 Injection oil (12 x 1 liter)

Injection oil (12 x 1 liter)

1 050 ₽
