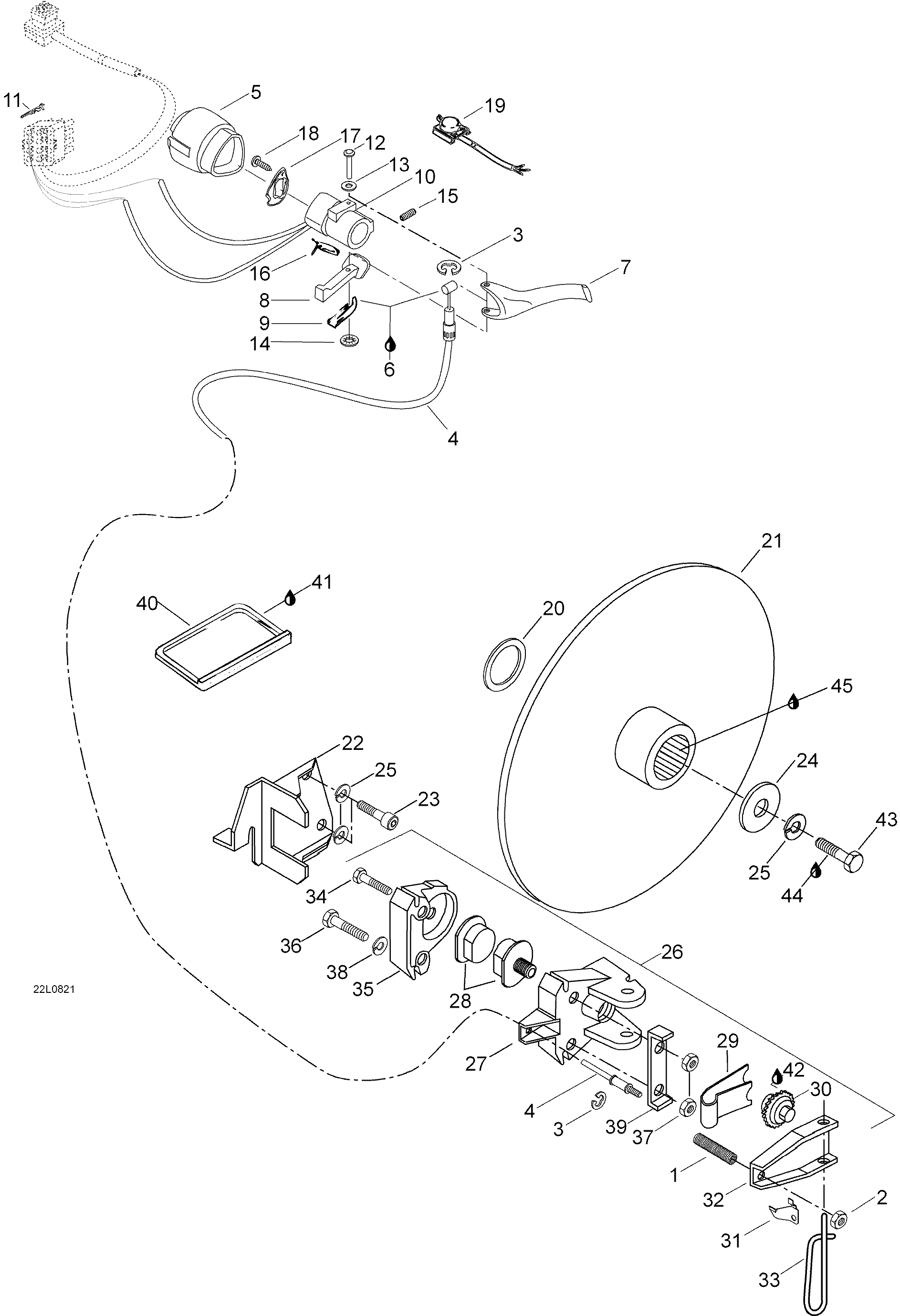

06- Brake для BRP Lynx Forest Fox - 2008
-
№АртикулНазвание
-
1414460600 SpringSpring
-
233010 Elastic stop nut M6Elastic stop nut M6
-
331038 LasringLasring
-
4414922500 Brake cableBrake cable
-
5507032311 AdaptorAdaptor
-
6293550004 Dielectric greaseDielectric grease
-
7572025700 Handle brakeHandle brake
-
8572025200 Brake leverBrake lever
-
9507032317 Spring plateSpring plate
-
10507032313 HousingHousing
-
1142603 ConnectorConnector
-
12517229400 PinPin
-
13414729400 Spring washerSpring washer
-
14389804300 CirclipCirclip
-
15414440800 Screw M8 x 10Screw M8 x 10
-
16415085700 SwitchSwitch
-
17572086600 CoverCover
-
18414473200 ScrewScrew
-
19415085800 Dimmer switchDimmer switch
-
2031013 ShimShim
-
21605353393 Brake diskBrake disk
-
225340079 Brake supportBrake support
-
2340305 Socket head screw M8 x 20Socket head screw M8 x 20
-
2420010 Washer A8,4Washer A8,4
-
2520014 Lock washer A8Lock washer A8
-
26507032331 Brake caliber. Includes 26 to 42Brake caliber. Includes 26 to 42
-
27507026600 Caliper-mach.Caliper-mach.
-
28860700700 Brake pad kitBrake pad kit
-
29507020200 Release springRelease spring
-
30507032310 Ratchel wheelRatchel wheel
-
31507009400 Ratchet wheel springRatchet wheel spring
-
32507021500 Brake leverBrake lever
-
33507032306 Hair pinHair pin
-
34207151444 Screw M5 x 14Screw M5 x 14
-
35414466800 Caliper-anuilCaliper-anuil
-
36207085044 Hex. screw M8 x 50Hex. screw M8 x 50
-
37232581414 Las mutter M8Las mutter M8
-
38507023600 Lock-tabLock-tab
-
39507020400 Locking tabLocking tab
-
40572013500 SliderSlider
-
41219700417 Synthetic grease, 400gSynthetic grease, 400g
-
42293800070 Loctite 76732, Antiseize Lubricant, 8 ozLoctite 76732, Antiseize Lubricant, 8 oz
-
4340036 Hex. screw M8 x 20Hex. screw M8 x 20
-
44293800060 Liima Loctite 243 10mlLiima Loctite 243 10ml
-
45293800070 Loctite 767, 8 ozLoctite 767, 8 oz
