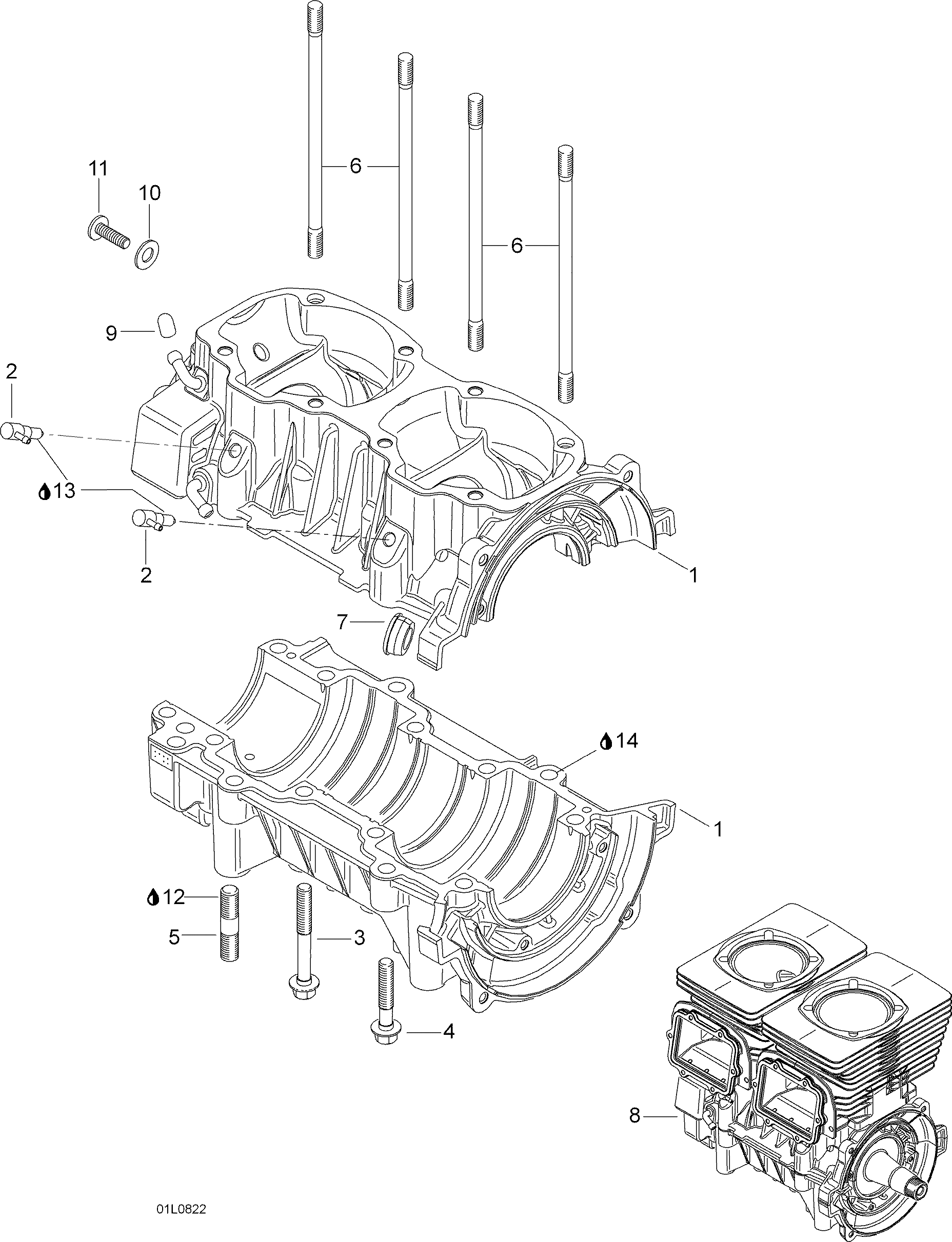

01- Crankcase для BRP Lynx Rave 550 - 2008
-
№АртикулНазвание
-
1420890231 Crankcase. Includes 1 to 4Crankcase. Includes 1 to 4
-
2420956510 Check valve assyCheck valve assy
-
3420640951 Screw M8 x 68,5Screw M8 x 68,5
-
4420640431 Screw M8 x 45Screw M8 x 45
-
5420641834 StudStud
-
6420840556 StudStud
-
7420860962 Cable grommetCable grommet
-
8300055206 Short block engineShort block engine
-
9420960772 CapCap
-
10420250311 Washer A8,4Washer A8,4
-
11420640896 Screw M5 x 12Screw M5 x 12
-
12293800060 Loctite 243, 10mlLoctite 243, 10ml
-
13413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
14420297906 Sealing compound, 30 mlSealing compound, 30 ml
