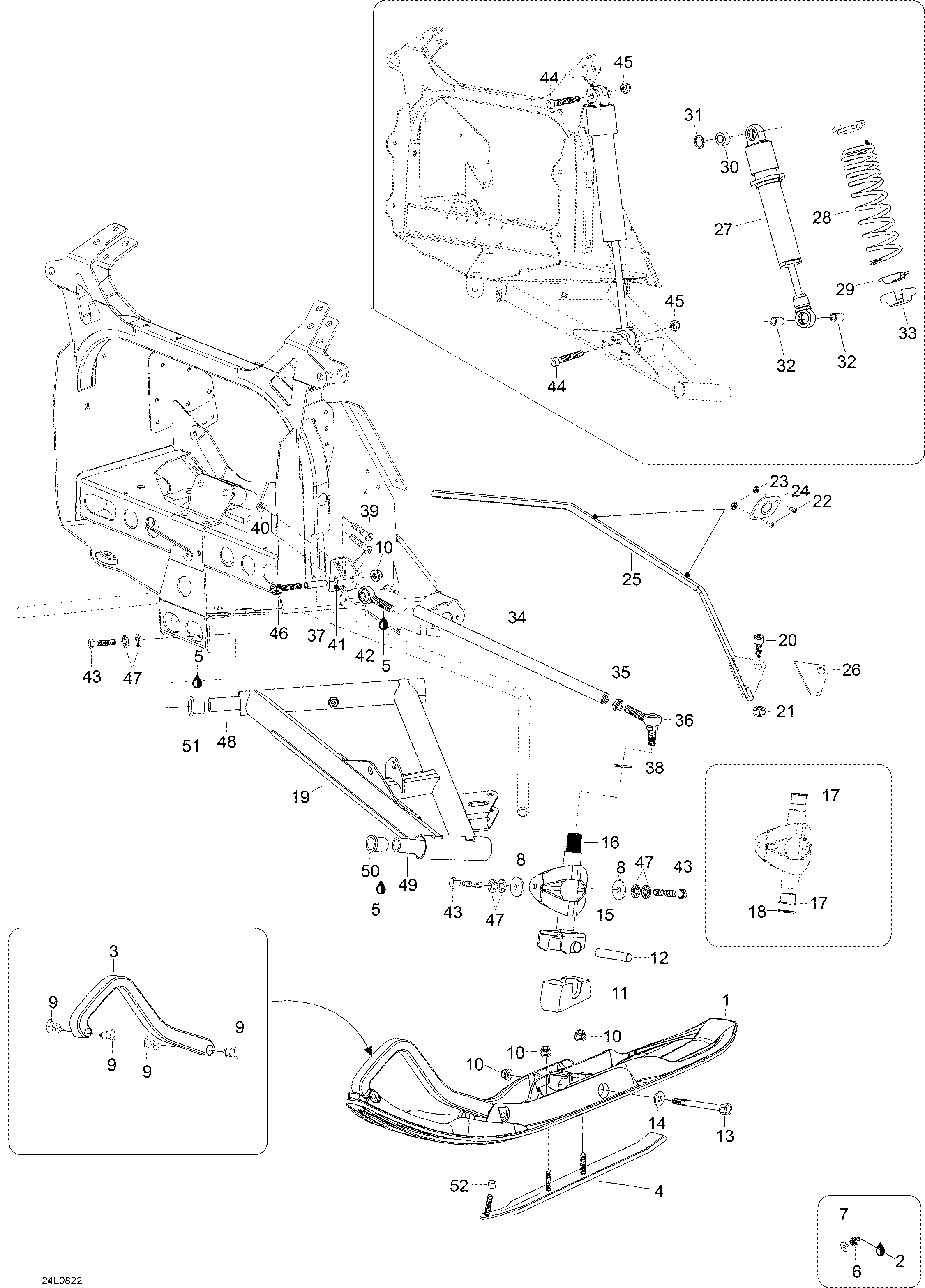

07- Front Suspension And Ski для BRP Lynx Rave 550 - 2008
-
№АртикулНазвание
-
1605153720 CTRL-SkiCTRL-Ski
-
2293550033 Synthetic grease, 400gSynthetic grease, 400g
-
3505071556 Plastic handle, Full moonPlastic handle, Full moon
-
4619400041 Runner ass'yRunner ass'y
-
5293800060 Liima Loctite 243, 10mlLiima Loctite 243, 10ml
-
634011 Grease fittingGrease fitting
-
720003 WasherWasher
-
8512056700 WasherWasher
-
9505071812 RetainerRetainer
-
1033074 Elastic flanged nut M10Elastic flanged nut M10
-
11570070400 Stopper-skiStopper-ski
-
12506133300 SpacerSpacer
-
1340391 Socket head screw M10 x 130Socket head screw M10 x 130
-
1420105 Washer M10, hardenedWasher M10, hardened
-
15605254215 Skilegtube, fullSkilegtube, full
-
16605354982 Ski legSki leg
-
17505070003 CushionCushion
-
18505070004 WasherWasher
-
19605253875 L.H. Lower armL.H. Lower arm
-
19605253874 R.H. Lower armR.H. Lower arm
-
20605640001 Socket head screw M6 x 35Socket head screw M6 x 35
-
2133010 Elastic stop nut M6Elastic stop nut M6
-
2240247 Screw M5 x 16Screw M5 x 16
-
2333009 Elastic stop nut M5Elastic stop nut M5
-
24605454723 BushingBushing
-
25605354775 StabilisatorStabilisator
-
26605354025 SliderSlider
-
27605623021 .Shock.Shock
-
-605354527 Shock ass'y, ski. Includes 26 to 32Shock ass'y, ski. Includes 26 to 32
-
2825069 SpringSpring
-
29503140600 CapCap
-
30414562900 Ball jointBall joint
-
31371910600 CirclipCirclip
-
32506120200 SleeveSleeve
-
33505071195 Spring stopperSpring stopper
-
34605354696 Upper armUpper arm
-
3540140 Nut M14Nut M14
-
3631096 Ball jointBall joint
-
37605454118 SleeveSleeve
-
3820075 Lock washer M14Lock washer M14
-
3940344 Socket head screw M8 x 25Socket head screw M8 x 25
-
4033201 Elastic flanged nut M8Elastic flanged nut M8
-
41605453877 BracketBracket
-
4231096 Ball jointBall joint
-
43605640002 Screw M10 x 40Screw M10 x 40
-
4440852 Socket head screw M10 x 55Socket head screw M10 x 55
-
4533012 Elastic stop nut M10Elastic stop nut M10
-
46605640002 Screw M10 x 40Screw M10 x 40
-
4720068 Lock bricka 10mmLock bricka 10mm
-
48605353783 Shaft, lower armShaft, lower arm
-
49605352749 Shaft, lower armShaft, lower arm
-
5031027 CushionCushion
-
51605631001 CushionCushion
-
52605454185 SleeveSleeve
