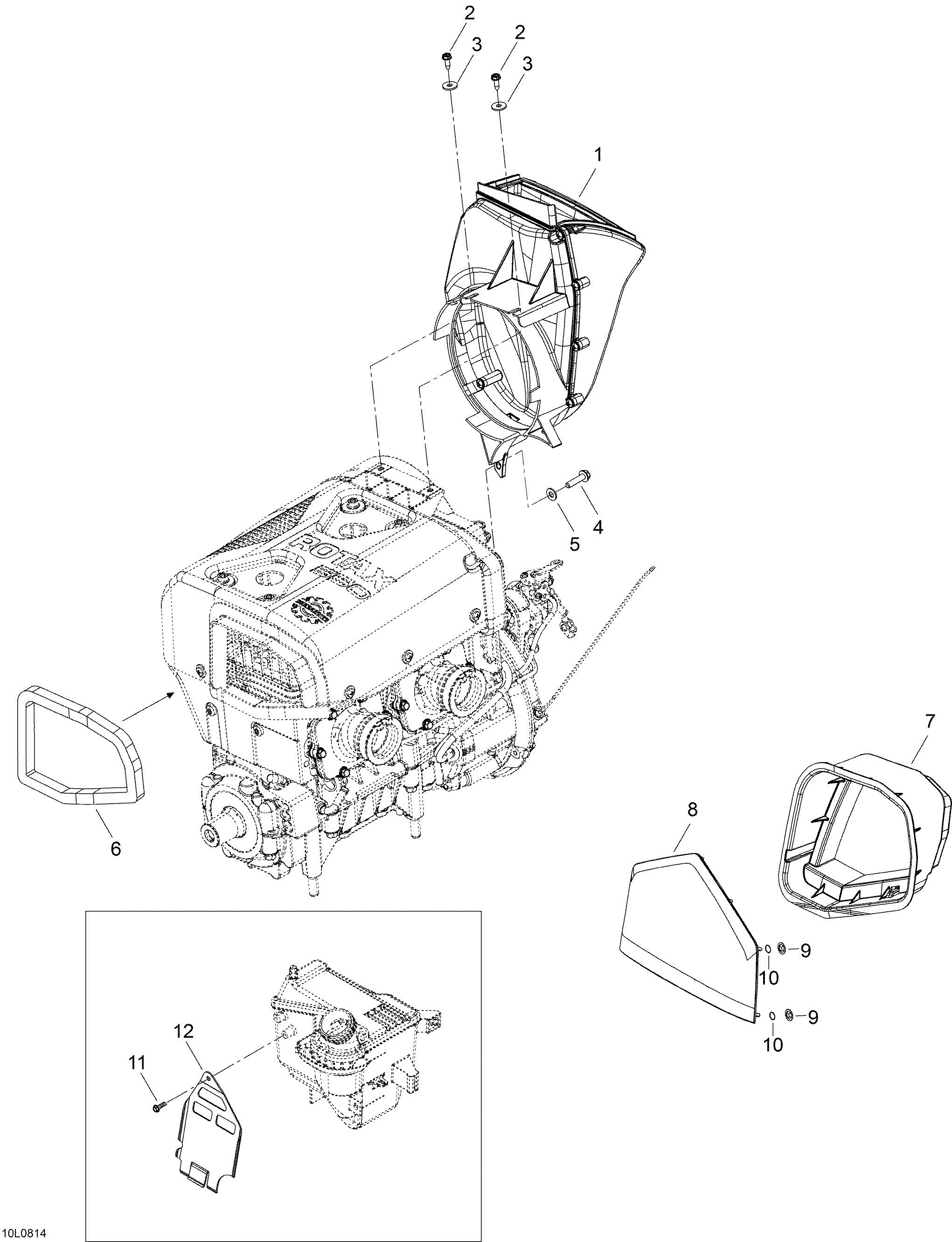

01- Cooling для BRP Lynx Xtrim 550 - 2008
-
№АртикулНазвание
-
1605153722 Duct inlet ass'y. Includes 1 to 9Duct inlet ass'y. Includes 1 to 9
-
2250000222 ScrewScrew
-
3391301600 WasherWasher
-
4210262580 Screw M6 x 25Screw M6 x 25
-
5224061121 WasherWasher
-
6508000450 FoamFoam
-
7605352786 Inner duct outletInner duct outlet
-
8605352787 Outer duct outletOuter duct outlet
-
936084 Push nutPush nut
-
1048231 O-ringO-ring
-
11241151640 Screw K50 x 16Screw K50 x 16
-
12509000257 DeflectorDeflector
