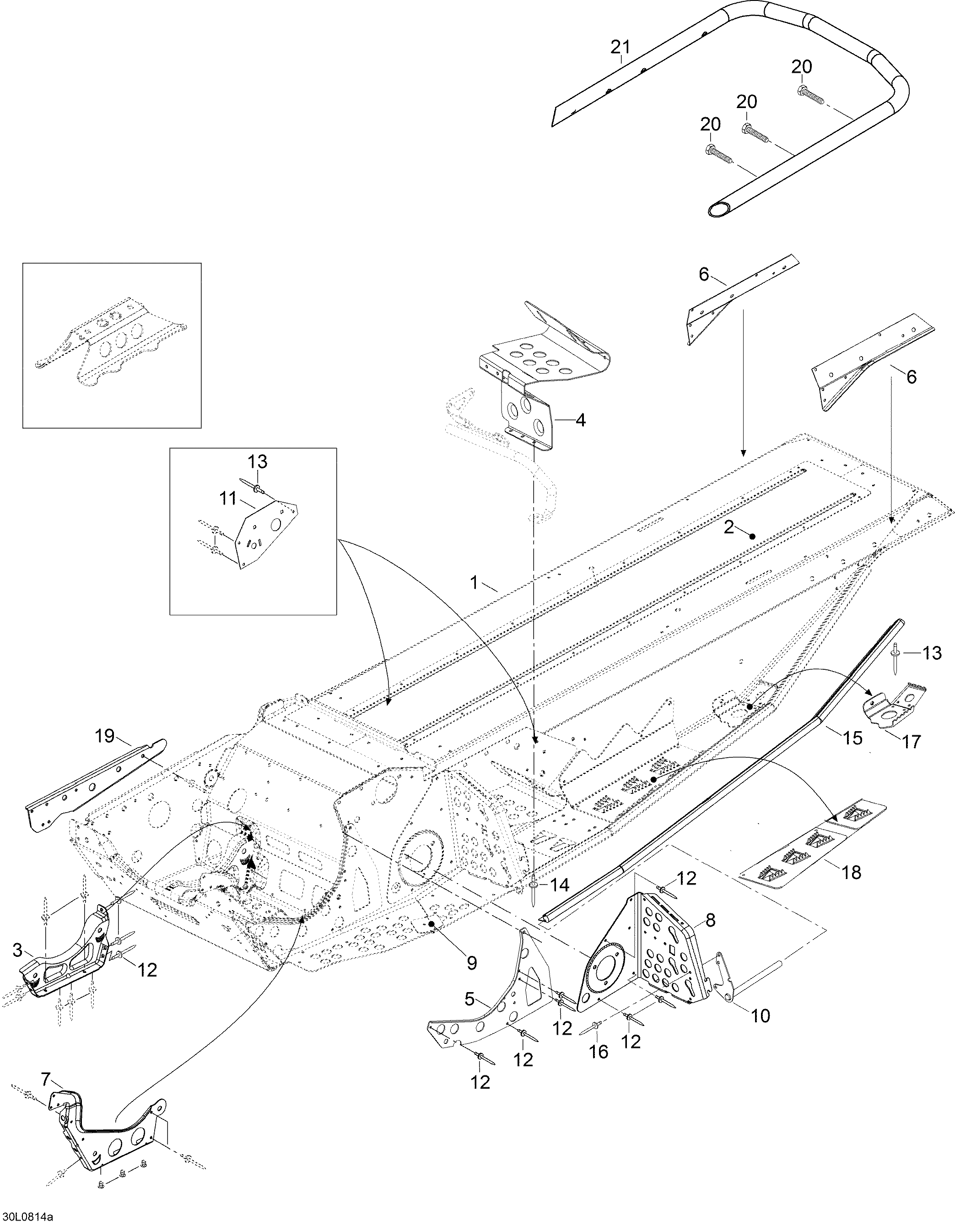

09- Frame для BRP Lynx Xtrim 550 - 2008
-
№АртикулНазвание
-
1605154738 Frame ass'y. Includes 1 to 23Frame ass'y. Includes 1 to 23
-
2605253375 tunnel covertunnel cover
-
3518323346 StiffenerStiffener
-
4605353980 R.H. Toe holdR.H. Toe hold
-
4605353981 L.H. Toe holdL.H. Toe hold
-
5605350345 Inner reinforcementInner reinforcement
-
7605451826 Engine supportEngine support
-
8518323805 R.H. footrest reinforcementR.H. footrest reinforcement
-
8518324527 L.H. footrest reinforcementL.H. footrest reinforcement
-
9605451590 Rivet plateRivet plate
-
10605453453 L.H. Support plateL.H. Support plate
-
10605453454 R.H. Support plateR.H. Support plate
-
1236007 RivetRivet
-
1336108 RivetRivet
-
1436489 RivetRivet
-
15605353808 L.H. RollerL.H. Roller
-
15605353809 R.H. RollerR.H. Roller
-
1636006 RivetRivet
-
17605353945 L.H. SupportL.H. Support
-
17605353946 R.H. SupportR.H. Support
-
19605353544 StiffenerStiffener
-
21605253597 Rear bumperRear bumper
-
2040351 Screw M8 x 20Screw M8 x 20
