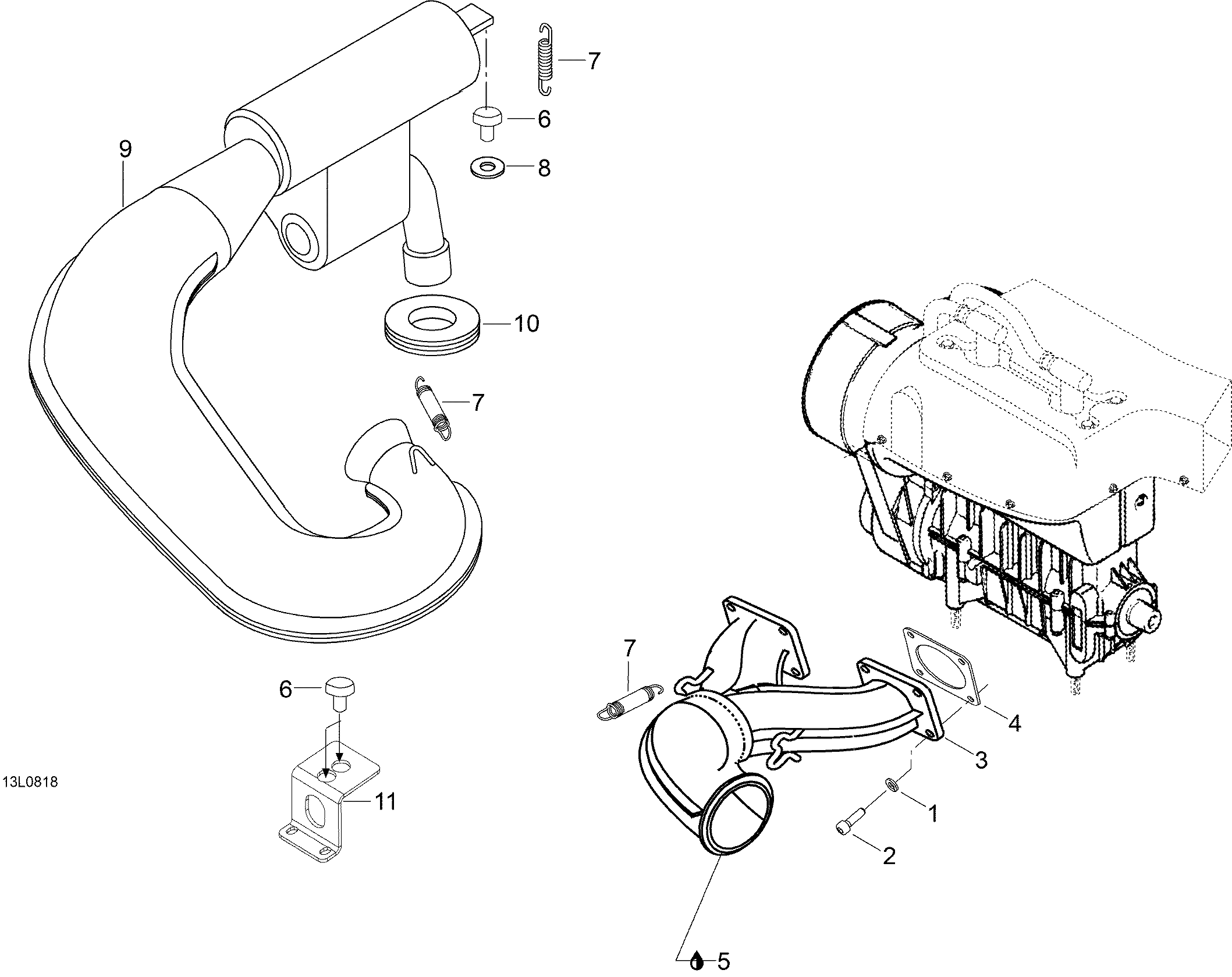

01- Exhaust System для BRP Lynx YETI 550 - 2008
-
№АртикулНазвание
-
120014 Lock washer A8Lock washer A8
-
240135 Socket head screw M8 x 30Socket head screw M8 x 30
-
35242517 Branch-YBranch-Y
-
4420831849 SealSeal
-
5293800090 Loctite, 80mlLoctite, 80ml
-
6514053654 Rubber damperRubber damper
-
7420938795 SpringSpring
-
820087 Washer M14Washer M14
-
9605155510 Tuned pipeTuned pipe
-
10570039000 GrommetGrommet
-
11605455781 BracketBracket
