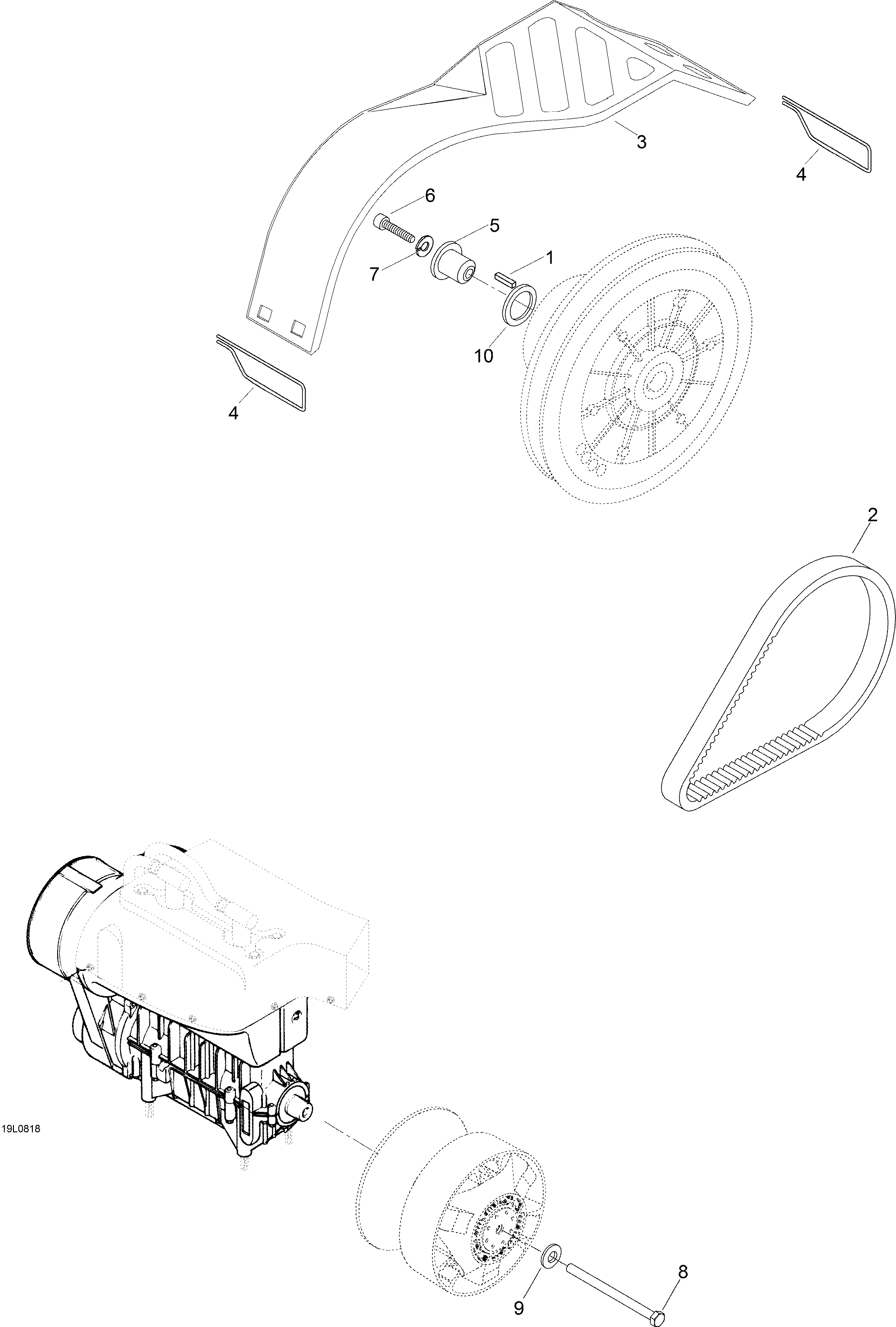

05- Pulley System для BRP Lynx YETI 550 - 2008
-
№АртикулНазвание
-
1418763 KeyKey
-
2605348425 Drive beltDrive belt
-
3605149860 Belt guardBelt guard
-
45442726 PinPin
-
55443201 Shaft extensionShaft extension
-
640286 Socket head screw M8 x 45. SWTSocket head screw M8 x 45. SWT
-
720014 Lock washer A8Lock washer A8
-
8417113800 ScrewScrew
-
920090 Lock washerLock washer
-
103125351 Shim. SWTShim. SWT
