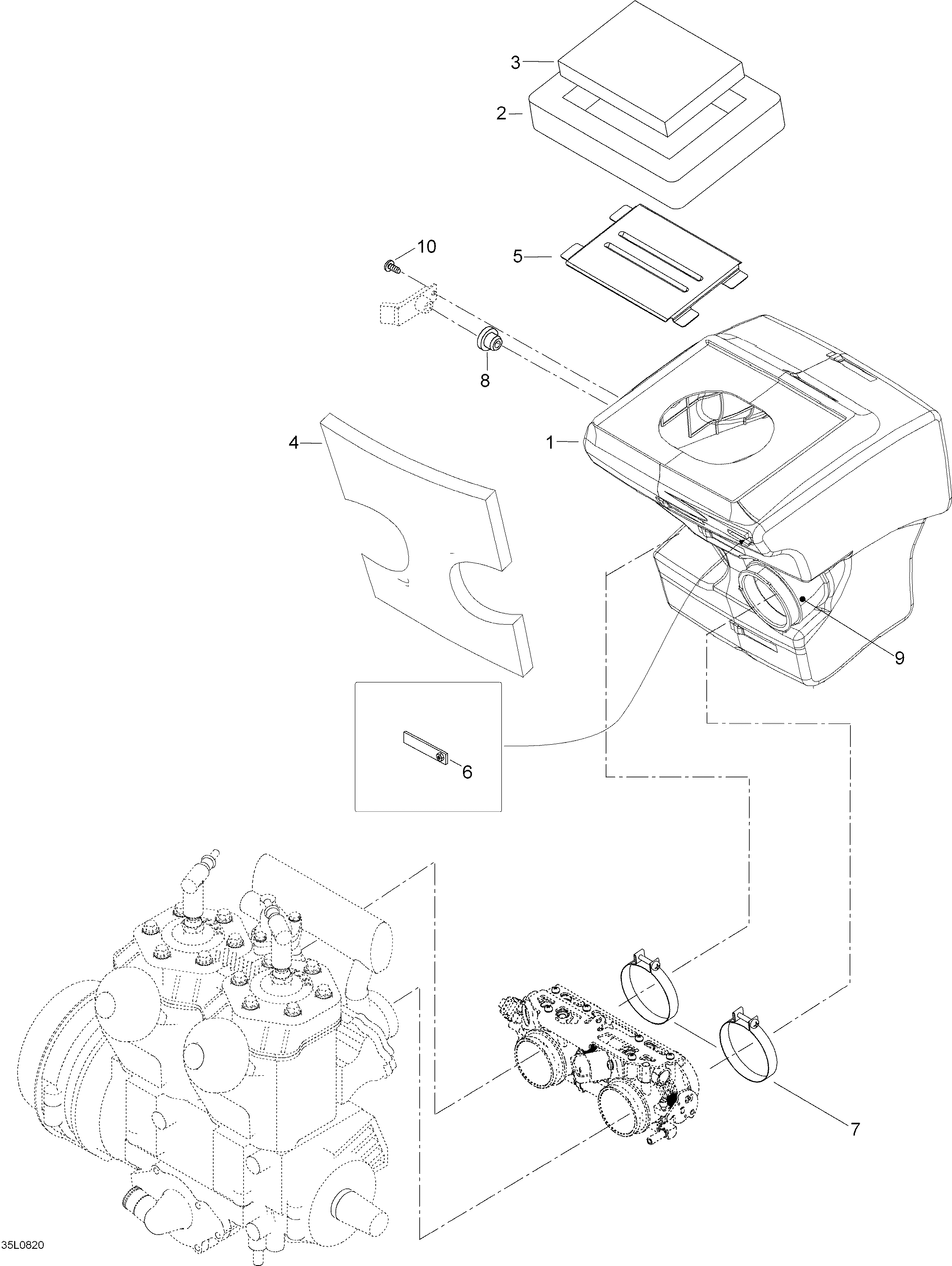

02- Air Silencer для BRP Lynx YETI TUV 600 HO SDI - 2008
-
№АртикулНазвание
-
1605254205 Air intake ass'y. Includes 1 to 5Air intake ass'y. Includes 1 to 5
-
2605352046 SealSeal
-
3605352047 FilterFilter
-
4605352048 FoamFoam
-
5508000004 GrillGrill
-
6605452851 Bracket, ignition coilBracket, ignition coil
-
7508000382 ClampClamp
-
8570065500 GrommetGrommet
-
9605351756 Intake adaptorIntake adaptor
-
1040905 Plastofast-screw M6 x 16Plastofast-screw M6 x 16
