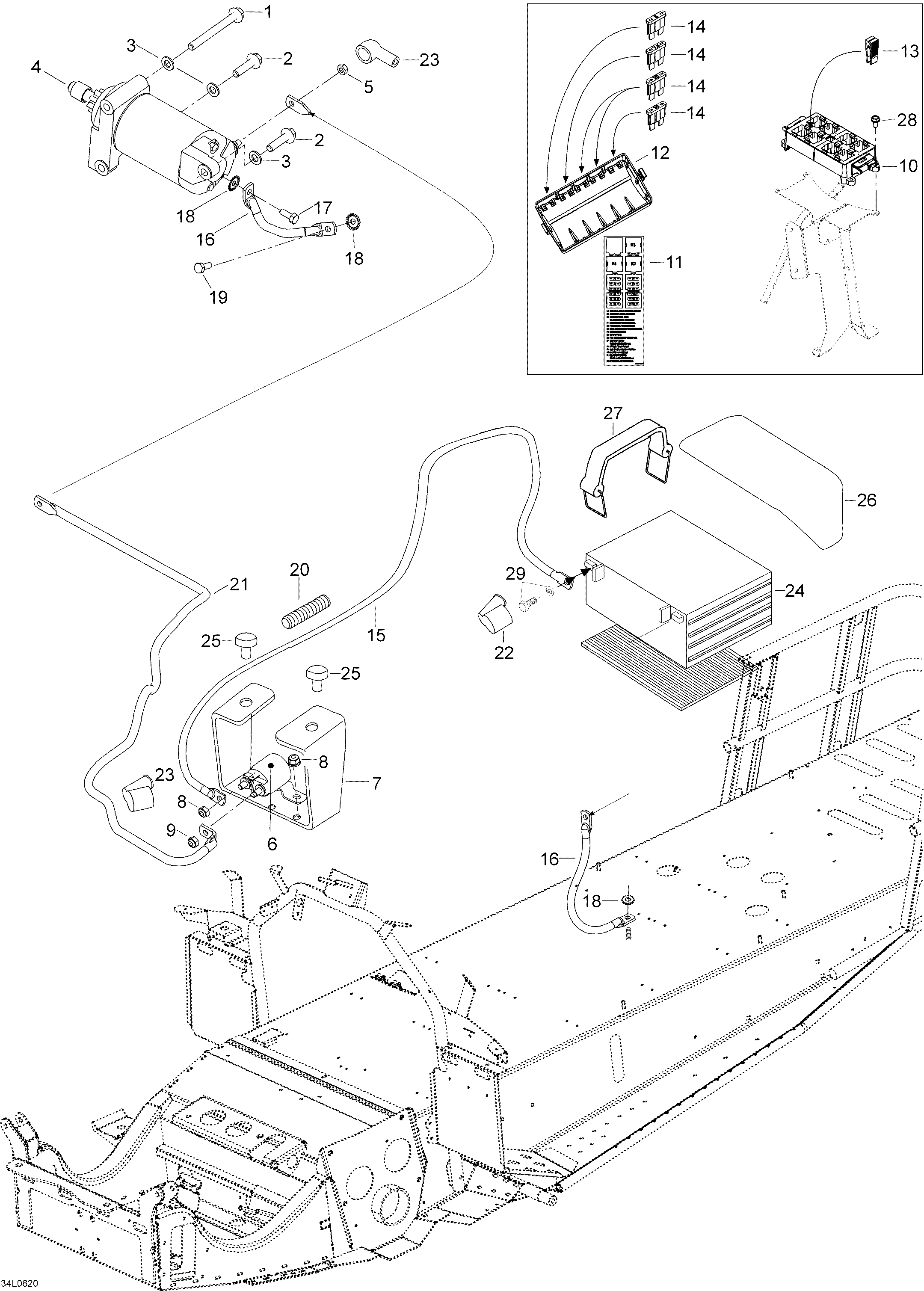

10- Electrical System для BRP Lynx YETI TUV 600 HO SDI - 2008
-
№АртикулНазвание
-
1207587544 ScrewScrew
-
2207583044 Hex.screwHex.screw
-
3250200008 WasherWasher
-
4515176133 Electric startElectric start
-
533010 Elastic stop nut M6Elastic stop nut M6
-
6515176011 Starter relayStarter relay
-
7605351708 BracketBracket
-
833200 Elastic flanged nut M6Elastic flanged nut M6
-
933010 Elastic stop nut M6Elastic stop nut M6
-
10515176065 Fuse housingFuse housing
-
11605453790 DecalDecal
-
12515176066 CoverCover
-
13515175811 ToolTool
-
1442042 Fuse 20 AFuse 20 A
-
1442040 Fuse 5 AFuse 5 A
-
1442043 Fuse 30 AFuse 30 A
-
1442044 Fuse 1 AFuse 1 A
-
1442041 Fuse 7.5 AFuse 7.5 A
-
15605151524 Battery wireBattery wire
-
16515175483 Ground wireGround wire
-
1740327 Hex. screw M6 x 12Hex. screw M6 x 12
-
1820017 Serrated lock washer 6mmSerrated lock washer 6mm
-
19210251680 Screw M5 x 16Screw M5 x 16
-
2028012 TubingTubing
-
215348358 Battery wireBattery wire
-
22570151000 CoverCover
-
23570151000 CoverCover
-
24410301203 BatteryBattery
-
25570044700 Rubber stopperRubber stopper
-
26605352572 CoverCover
-
27605352573 Retainer strapRetainer strap
-
28207361644 Screw hex.Screw hex.
-
29295500849 Battery fastener kitBattery fastener kit
