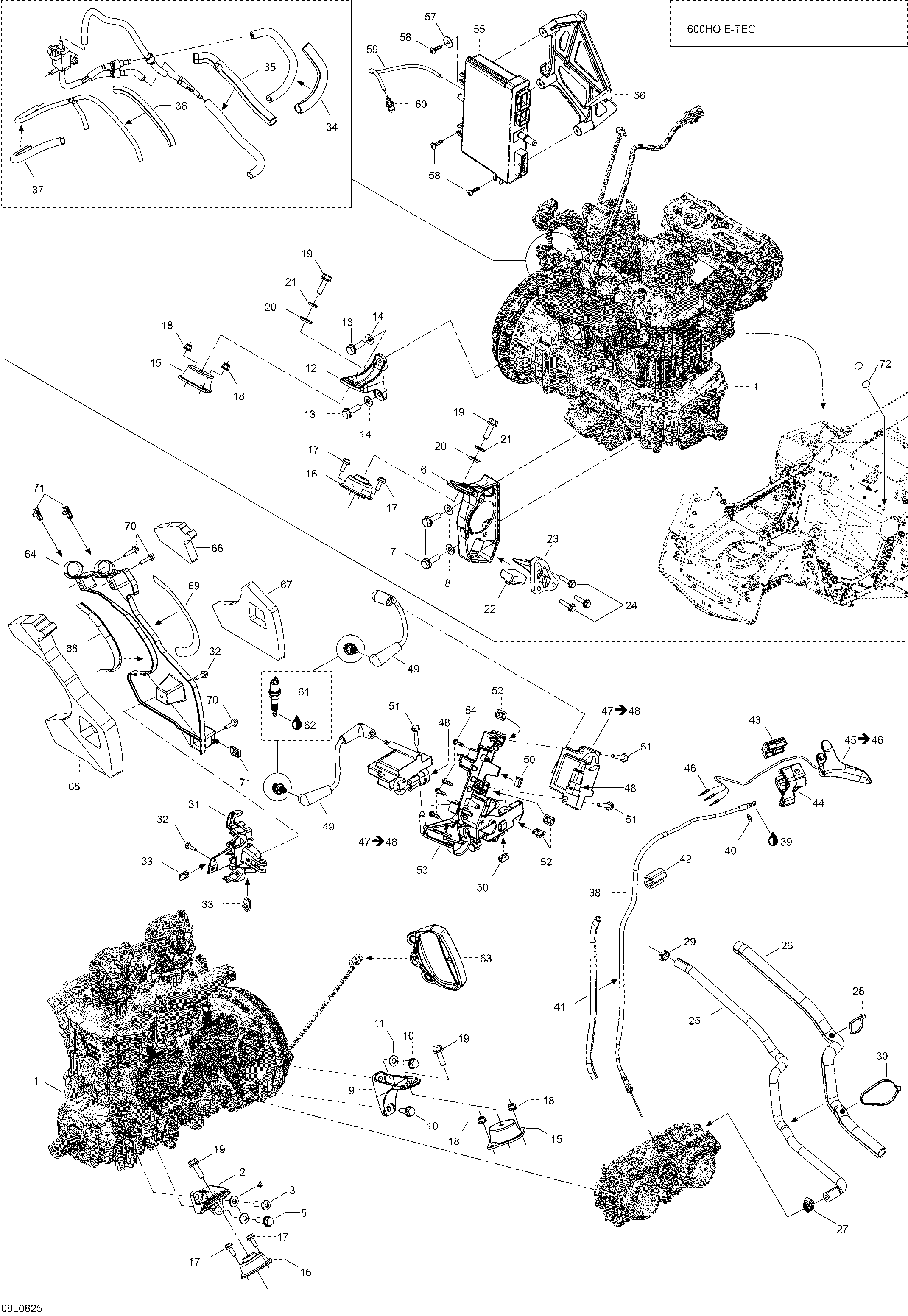

01- Engine And Engine Support для BRP Lynx Rave RE 600 E-TEC - 2009
-
№АртикулНазвание
-
2512060478 Rear PTO SupportRear PTO Support
-
3250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
4234281474 Conical Spring Washer M8Conical Spring Washer M8
-
5207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
6512060406 Front PTO SupportFront PTO Support
-
7207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
8234281474 Conical Spring Washer M8Conical Spring Washer M8
-
9512060470 Rear MAG SupportRear MAG Support
-
10207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
11234281474 Conical Spring Washer M8Conical Spring Washer M8
-
12512060469 Front MAG SupportFront MAG Support
-
13207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
14234281474 Conical Spring Washer M8Conical Spring Washer M8
-
15512060457 Rubber MountRubber Mount
-
16512060387 Rubber MountRubber Mount
-
17207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
18233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
19207583086 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
20503183200 Washer, YellowWasher, Yellow
-
21234281474 Conical Spring Washer M8Conical Spring Washer M8
-
22512060488 StopperStopper
-
23512060489 Stopper SupportStopper Support
-
24207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
25512060349 Formed Hose Output TBFormed Hose Output TB
-
26415080000 Tubing 16 mmTubing 16 mm
-
27293650170 Hose ClampHose Clamp
-
28414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
29293650025 Oetiker ClampOetiker Clamp
-
30414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
31512060298 Solenoid SupportSolenoid Support
-
32207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
33250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
34409901800 Tubing 13 mmTubing 13 mm
-
35409901800 Tubing 13 mmTubing 13 mm
-
36409901800 Tubing 9 mmTubing 9 mm
-
37409901800 Tubing 9 mmTubing 9 mm
-
38512060230 Throttle CableThrottle Cable
-
39293550004 Dielectric Grease, 150 GDielectric Grease, 150 G
-
40414274500 CirclipCirclip
-
41409901700 Tubing 6 mmTubing 6 mm
-
42409901700 ProtectorProtector
-
43512060198 Upper HousingUpper Housing
-
44512060430 Lower HousingLower Housing
-
45512060468 Throttle Handle Ass'y. Includes 45 to 46Throttle Handle Ass'y. Includes 45 to 46
-
46515175232 Male TerminalMale Terminal
-
47512060093 Ignition Coil. Includes 47 to 48Ignition Coil. Includes 47 to 48
-
48710000568 HousingHousing
-
49512060094 Ignition Cable, 177 mmIgnition Cable, 177 mm
-
50710000992 ClipClip
-
51250000253 Hex. Flange ScrewHex. Flange Screw
-
52293100003 NutNut
-
53512060287 Support CoilsSupport Coils
-
54241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
55512060479 Calibrated ModuleCalibrated Module
-
56512060297 Calibrated Module SupportCalibrated Module Support
-
57250200040 Flat WasherFlat Washer
-
58250000297 Truss Head Torx Screw K50 X 20Truss Head Torx Screw K50 X 20
-
59415080100 LineLine
-
60414814100 Male ConnectorMale Connector
-
61415129432 Spark PlugSpark Plug
-
62293550004 Dielectric Grease, 150 GDielectric Grease, 150 G
-
63512060136 Starter GripStarter Grip
-
64512060339 Noise ShieldNoise Shield
-
65512060343 Interior Noise FoamInterior Noise Foam
-
66512060344 Upper Exterior Noise FoamUpper Exterior Noise Foam
-
67512060362 Lower Exterior Noise FoamLower Exterior Noise Foam
-
68512060358 Reflective SheetReflective Sheet
-
69512060371 Reflective SheetReflective Sheet
-
70207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
71250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
72518325560 Adhesive PatchAdhesive Patch
