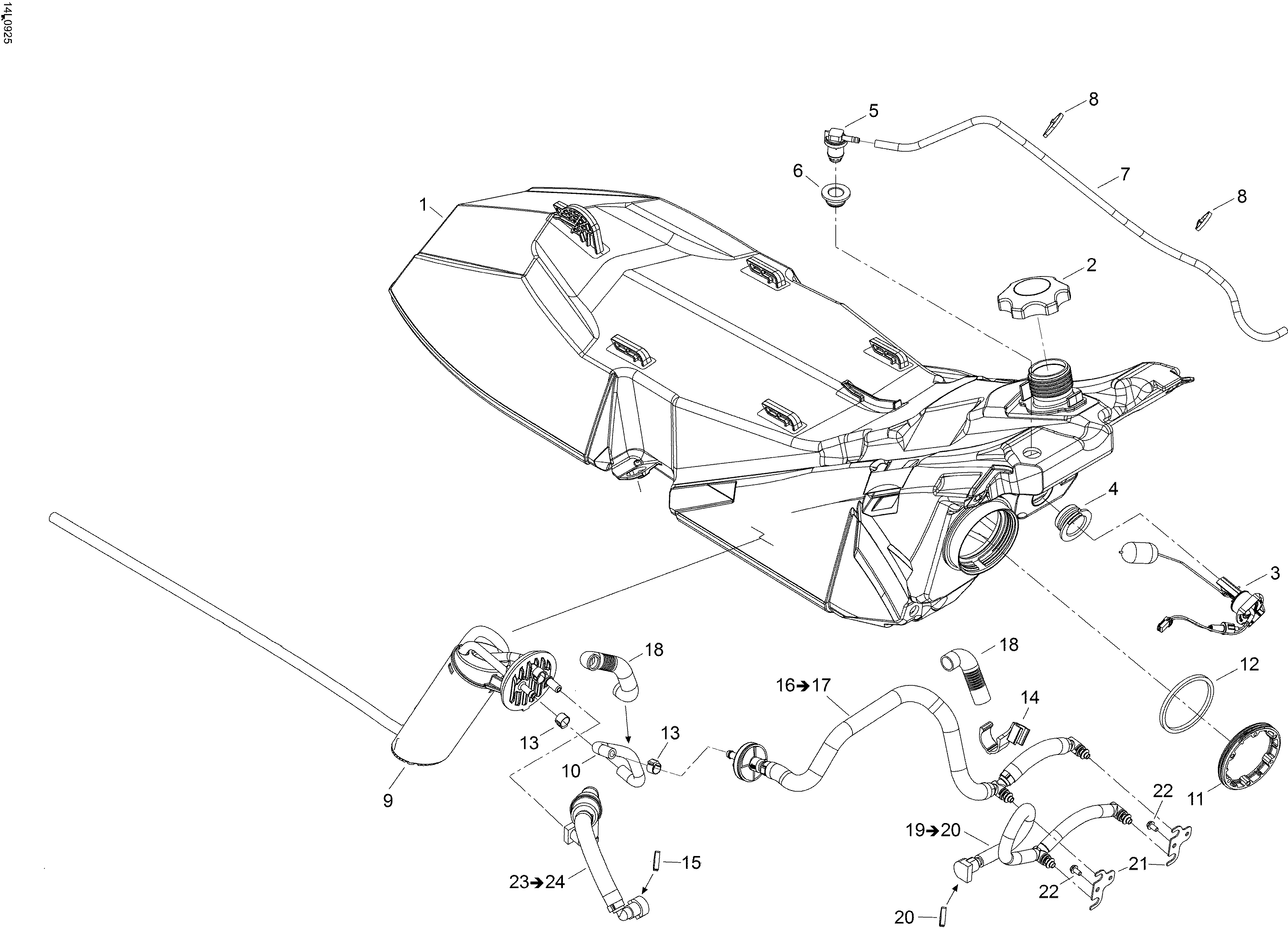

02- Fuel System для BRP Lynx Rave RE 600 E-TEC - 2009
-
№АртикулНазвание
-
1513033428 Fuel TankFuel Tank
-
2513033025 CapCap
-
3513033168 Fuel SensorFuel Sensor
-
4513033555 GrommetGrommet
-
5513033188 Check ValveCheck Valve
-
6513033189 GrommetGrommet
-
7415080200 Polyurethane HosePolyurethane Hose
-
8414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9513033507 Fuel PumpFuel Pump
-
10513033544 HoseHose
-
11513033180 RingRing
-
12513033334 GasketGasket
-
13293650047 Oetiker ClampOetiker Clamp
-
14513033336 Filter ClipFilter Clip
-
15513033135 ClipClip
-
16513033560 Fuel Hose Ass'y. Includes 16 to 17Fuel Hose Ass'y. Includes 16 to 17
-
17513033135 ClipClip
-
18415080000 Tubing 16 mmTubing 16 mm
-
19513033548 Hose Ass'y. Includes 19 to 20Hose Ass'y. Includes 19 to 20
-
20513033135 ClipClip
-
21513033542 BracketBracket
-
22207551044 Flanged Hex. Screw M5 X 10Flanged Hex. Screw M5 X 10
-
23513033599 Hose Ass'y. Includes 23 to 24Hose Ass'y. Includes 23 to 24
