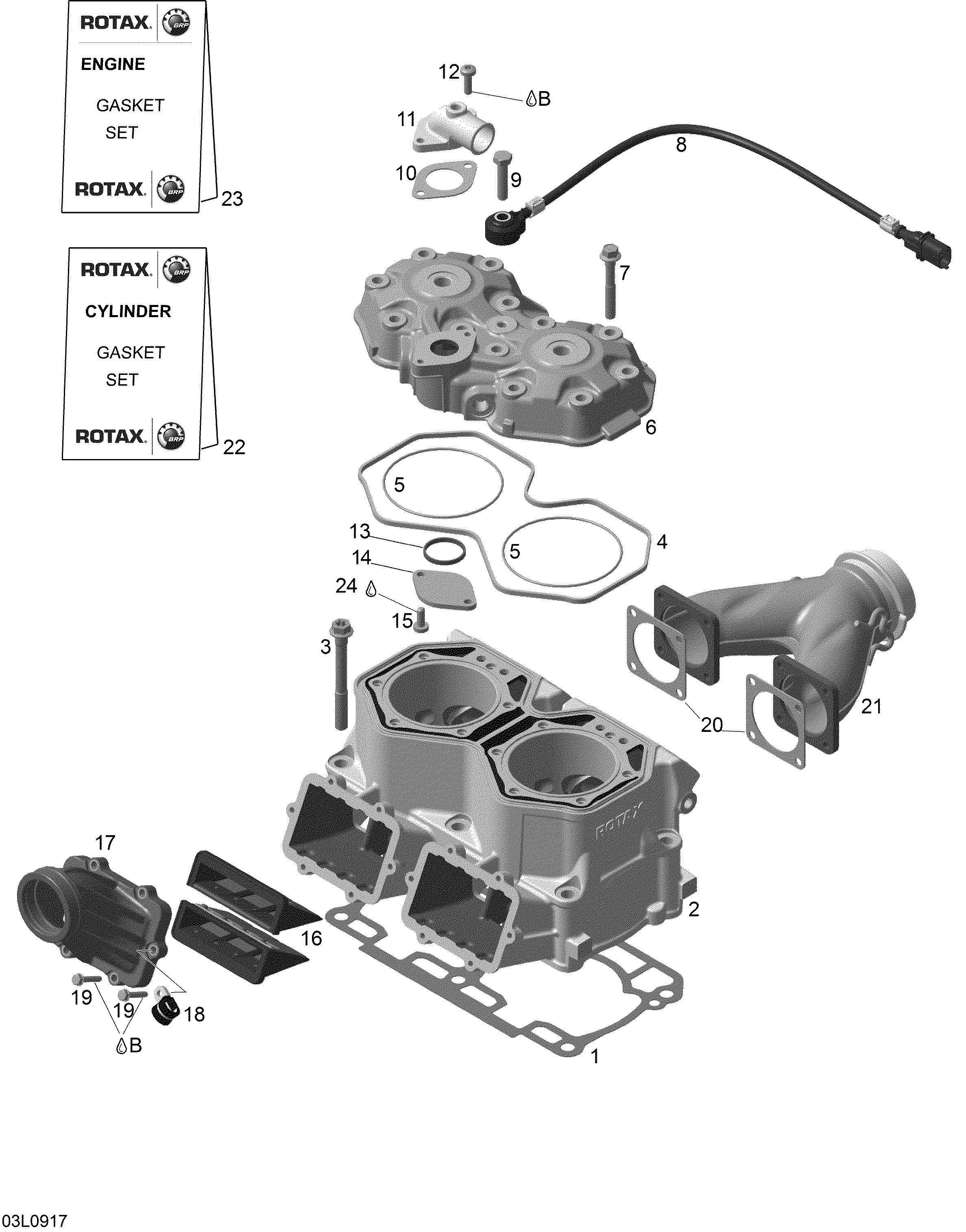

01- Cylinder And Cylinder Head для BRP Lynx Xtrim SC 800R PowerTEK - 2009
-
№АртикулНазвание
-
1420430080 Gasket, double 0.5 mmGasket, double 0.5 mm
-
1420430081 Gasket, double 0.6 mmGasket, double 0.6 mm
-
1420430082 Gasket, double 0.7 mmGasket, double 0.7 mm
-
1420430083 Gasket, double 0.8 mmGasket, double 0.8 mm
-
1420430084 Gasket, double 0.9 mmGasket, double 0.9 mm
-
2420623241 Cylinder, nicasilCylinder, nicasil
-
3420441187 Screw M10x90 Sw 13/T50Screw M10x90 Sw 13/T50
-
4420430040 O-ringO-ring
-
5420931410 O-ringO-ring
-
6420613925 CylinderheadCylinderhead
-
7420941627 Screw M8 x 56,5Screw M8 x 56,5
-
8420664035 Knock sensorKnock sensor
-
9420940491 Hex. Screw M8 x 35Hex. Screw M8 x 35
-
10420850338 Thermostat gasketThermostat gasket
-
11420922062 Bent outlet socketBent outlet socket
-
12420941256 Screw M6 x 20Screw M6 x 20
-
13420630780 GasketGasket
-
14420926260 CoverCover
-
15420640321 Screw M6x16Screw M6x16
-
16420924792 Reed valve assyReed valve assy
-
17420667470 Intake socketIntake socket
-
18420853412 ClampClamp
-
19420241270 Screw M5 x 25Screw M5 x 25
-
20420430480 GasketGasket
-
21420673370 Exhaust manifold assyExhaust manifold assy
-
22420892476 Gasket set, cylinderGasket set, cylinder
-
23420892471 Gasket set, engineGasket set, engine
-
24293800060 Loctite 243Loctite 243
