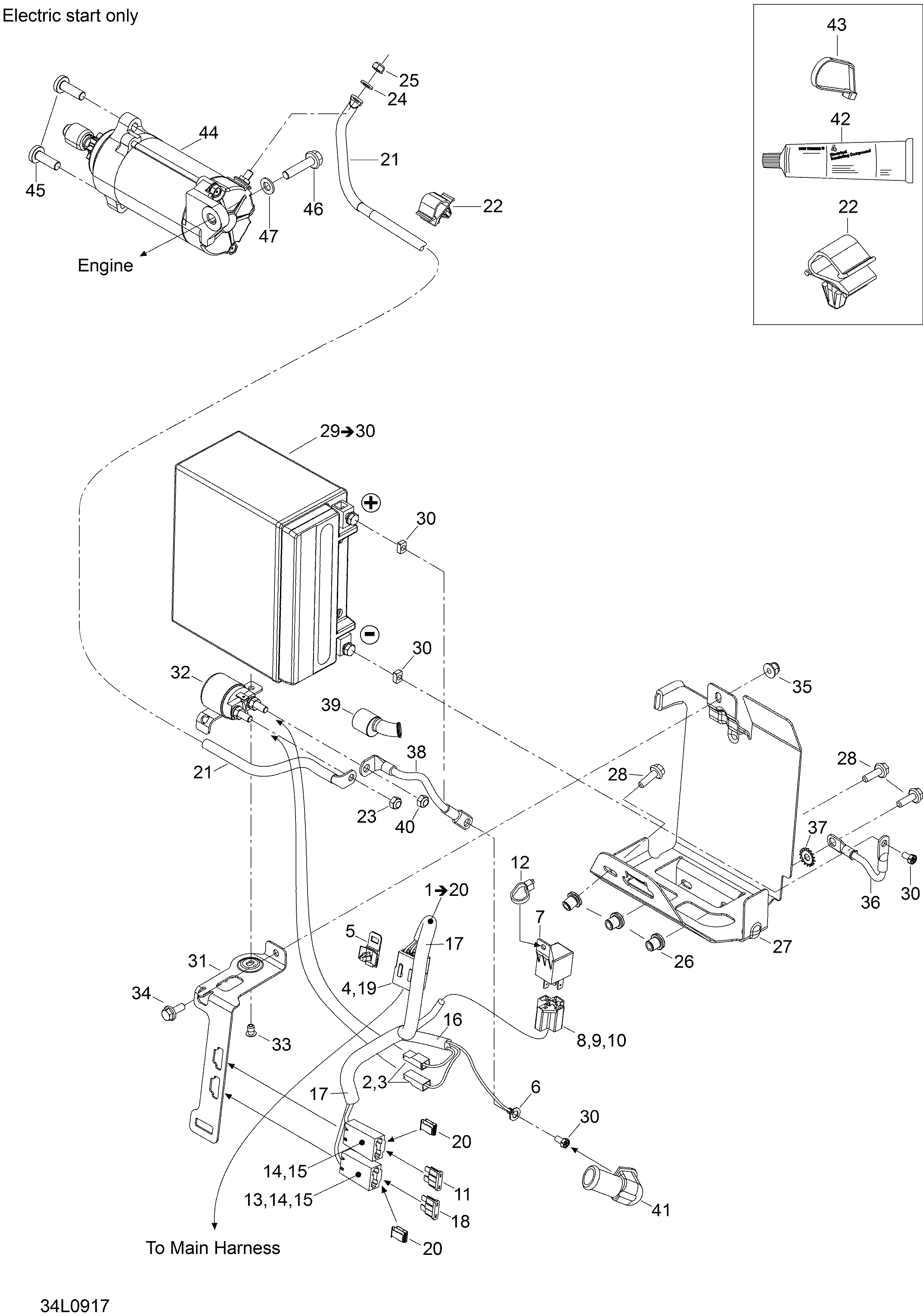

10- Electrical System для BRP Lynx Xtrim SC 800R PowerTEK - 2009
-
№АртикулНазвание
-
1515176773 Battery harnessBattery harness
-
2409010100 Female terminalFemale terminal
-
3409010400 Female terminal housingFemale terminal housing
-
4515175232 Male terminalMale terminal
-
5515175283 Hoiusing supportHoiusing support
-
6278000992 Open barellOpen barell
-
7410113200 Relay-starterRelay-starter
-
8409209900 Female housing 5 circuitsFemale housing 5 circuits
-
9561503100 Female terminalFemale terminal
-
10561503100 Female terminalFemale terminal
-
11410917200 Fuse 30AFuse 30A
-
12414115200 Tie-rap 180mmTie-rap 180mm
-
13409011600 Female terminalFemale terminal
-
14409004200 Female terminalFemale terminal
-
15409004000 Fyse holderFyse holder
-
16515175442 Tubing 6mmTubing 6mm
-
17409901700 Tubing 6mmTubing 6mm
-
18278000344 Fyse 5 ampsFyse 5 amps
-
19515175817 Male terminal housing 8 circuitsMale terminal housing 8 circuits
-
20710000992 ClipClip
-
21515176785 Battery wireBattery wire
-
22515176795 ClipClip
-
23232561414 NutNut
-
24234061410 WasherWasher
-
25232561414 NutNut
-
26415107300 InsertInsert
-
27515176830 SupportSupport
-
28207662044 Wuloc-screwWuloc-screw
-
29710000928 BatteryBattery
-
30295500849 Battery fastener kitBattery fastener kit
-
31515176368 Strip-batteryStrip-battery
-
32515176501 Start relayStart relay
-
33390402200 RivetRivet
-
34207661644 ScrewScrew
-
35233261414 NutNut
-
36515176358 Groud wireGroud wire
-
37250200041 Lock washerLock washer
-
38515176556 Battery wireBattery wire
-
39515175919 Protector capProtector cap
-
40232561414 NutNut
-
41710000495 Protector capProtector cap
-
42293550004 Dielectric Grease 150gDielectric Grease 150g
-
43293750001 Tie-rapTie-rap
-
43293750008 Tie-rap 350mmTie-rap 350mm
-
44515176754 StarterStarter
-
45250000248 ScrewScrew
-
46207583044 ScrewScrew
-
47250200008 WasherWasher
