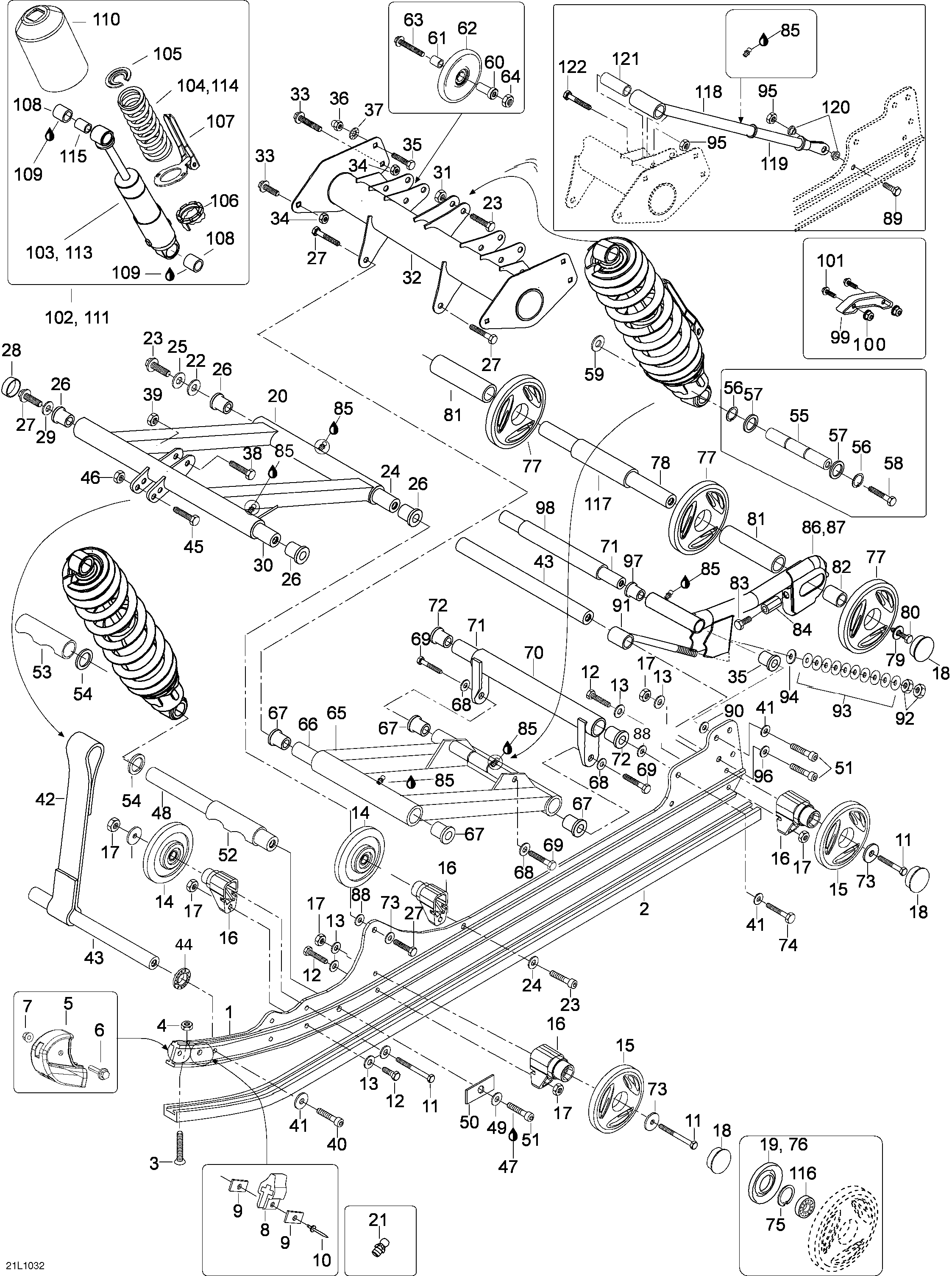

07- Rear Suspension для BRP Lynx Adventure GT 1200 4-TEC - 2010
-
№АртикулНазвание
-
1503191837 RunnerRunner
-
2503192021 Slider ShoeSlider Shoe
-
3208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503192299 Runner ProtectorRunner Protector
-
6207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
7233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
8503192106 Rubber StopperRubber Stopper
-
9503191273 WasherWasher
-
10293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
11207667044 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
12207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
13503191820 Wheel Cup M6Wheel Cup M6
-
14503191316 Wheel 141 Ass'yWheel 141 Ass'y
-
15503191313 Wheel 141 With Pattern Ass'y, Full MoonWheel 141 With Pattern Ass'y, Full Moon
-
16503191833 SupportSupport
-
17233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
18570063600 Wheel CapWheel Cap
-
19503190434 Labyrinth SealLabyrinth Seal
-
205147672 Front armFront arm
-
21408200700 Grease FittingGrease Fitting
-
22512056700 Lock WasherLock Washer
-
23207004544 Hex. Screw M10 X 45Hex. Screw M10 X 45
-
245347713 Lower shaft, front armLower shaft, front arm
-
2520116 WasherWasher
-
2631024 SleeveSleeve
-
27207026044 Hex. Screw M12 x 60Hex. Screw M12 x 60
-
285448025 CoverCover
-
29250200005 Conical Spring Washer M12Conical Spring Washer M12
-
305347719 Upper shaft, front armUpper shaft, front arm
-
31232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
32503191743 Rear BeamRear Beam
-
34232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
35207781644 Carriage Bolt M8 x 16Carriage Bolt M8 x 16
-
36232381413 Hex. Domed Nut DIN.1587Hex. Domed Nut DIN.1587
-
3720072 Lock washerLock washer
-
38207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
39232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
40205004544 Socket Head Screw DIN 912Socket Head Screw DIN 912
-
41234001410 Flat Washer 10 mmFlat Washer 10 mm
-
42503192033 Strap StopperStrap Stopper
-
435347717 Shaft, stopper strapShaft, stopper strap
-
444181158 Fixing washerFixing washer
-
45207084544 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
46232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
47293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
485347726 Lower shaft, shockLower shaft, shock
-
4920068 Lock washerLock washer
-
505447940 Supprot washerSupprot washer
-
51205004547 Socket Head Screw DIN 912Socket Head Screw DIN 912
-
525347718 SleeveSleeve
-
535346649 SleeveSleeve
-
5431013 Shim ringShim ring
-
55605451897 Rearshock ShaftRearshock Shaft
-
56293370056 Circlip 20X1.75 DIN471Circlip 20X1.75 DIN471
-
5731091 Shim ringShim ring
-
58207004044 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
5920068 Lock washerLock washer
-
60503192085 Idler Wheel SleeveIdler Wheel Sleeve
-
61503192086 Idler Wheel SleeveIdler Wheel Sleeve
-
62503191316 Wheel 141 Ass'yWheel 141 Ass'y
-
63207087044 Hex. Screw M8 X 70Hex. Screw M8 X 70
-
64232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
65605349313 Rear Arm Weld LightRear Arm Weld Light
-
665346865 Shaft l=160mmShaft l=160mm
-
6731027 SleeveSleeve
-
68234001410 Flat Washer 10 mmFlat Washer 10 mm
-
69207004044 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
705347668 Rear swingRear swing
-
715347713 Lower shaft, front armLower shaft, front arm
-
7231024 SleeveSleeve
-
7320116 WasherWasher
-
74207004544 Hex. Screw M10 X 45Hex. Screw M10 X 45
-
75512056700 Lock WasherLock Washer
-
76570063600 Wheel CapWheel Cap
-
77503191110 Wheel 165 mm, Full MoonWheel 165 mm, Full Moon
-
78503191408 Rear AxleRear Axle
-
79503190439 WasherWasher
-
80207303544 Hex. Screw M10 x 35 (Scotch Grip)Hex. Screw M10 x 35 (Scotch Grip)
-
81503192047 SpacerSpacer
-
82503192048 SpacerSpacer
-
83230100044 Hex. Screw M10 X 100Hex. Screw M10 X 100
-
84605633002 SpacerSpacer
-
85293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
86503192053 Extension L.H.Extension L.H.
-
87503192054 Extension r.h.Extension r.h.
-
8820116 WasherWasher
-
89207103544 Hex. Screw M10 X 35Hex. Screw M10 X 35
-
90512056700 Lock WasherLock Washer
-
915447373 Screw for springScrew for spring
-
92232006414 Hex. Nut M10Hex. Nut M10
-
9325004 Plate springPlate spring
-
94234002410 Flat Washer 10 mmFlat Washer 10 mm
-
9533012 Elastic stop nut M10Elastic stop nut M10
-
96234001410 Flat Washer 10 mmFlat Washer 10 mm
-
9731024 Sleeve / BearingSleeve / Bearing
-
98605448429 SleeveSleeve
-
995343191 Sliding PadSliding Pad
-
100233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
101207764044 Bolt Carriage DIN.603Bolt Carriage DIN.603
-
102503192310 Shock ass'y rear armShock ass'y rear arm
-
103503192311 Rear ShockRear Shock
-
104503192359 Spring 255 mm - 70 N/mmSpring 255 mm - 70 N/mm
-
105230076 Spring SeatSpring Seat
-
106230078 Adjusting CamAdjusting Cam
-
107605348748 Arm Adjusting Ass'yArm Adjusting Ass'y
-
10831094 CushionCushion
-
10932161 Glue. LoctiteGlue. Loctite
-
1105346754 Cover for shock Rear/FrontCover for shock Rear/Front
-
111503192306 Shock ass'y front armShock ass'y front arm
-
113503192307 Center ShockCenter Shock
-
114503192358 Spring 237 mm - 65 N/mmSpring 237 mm - 65 N/mm
-
1155446652 Sleeve 10,2/20-25,5Sleeve 10,2/20-25,5
-
116293350055 Ball BearingBall Bearing
-
117503192376 SpacerSpacer
-
1185347851 Poker tubePoker tube
-
1195347852 Poker shaftPoker shaft
-
1205447853 Slide bearingSlide bearing
-
1215447848 SleeveSleeve
-
12240011 Hex. screw M8 x 60Hex. screw M8 x 60
