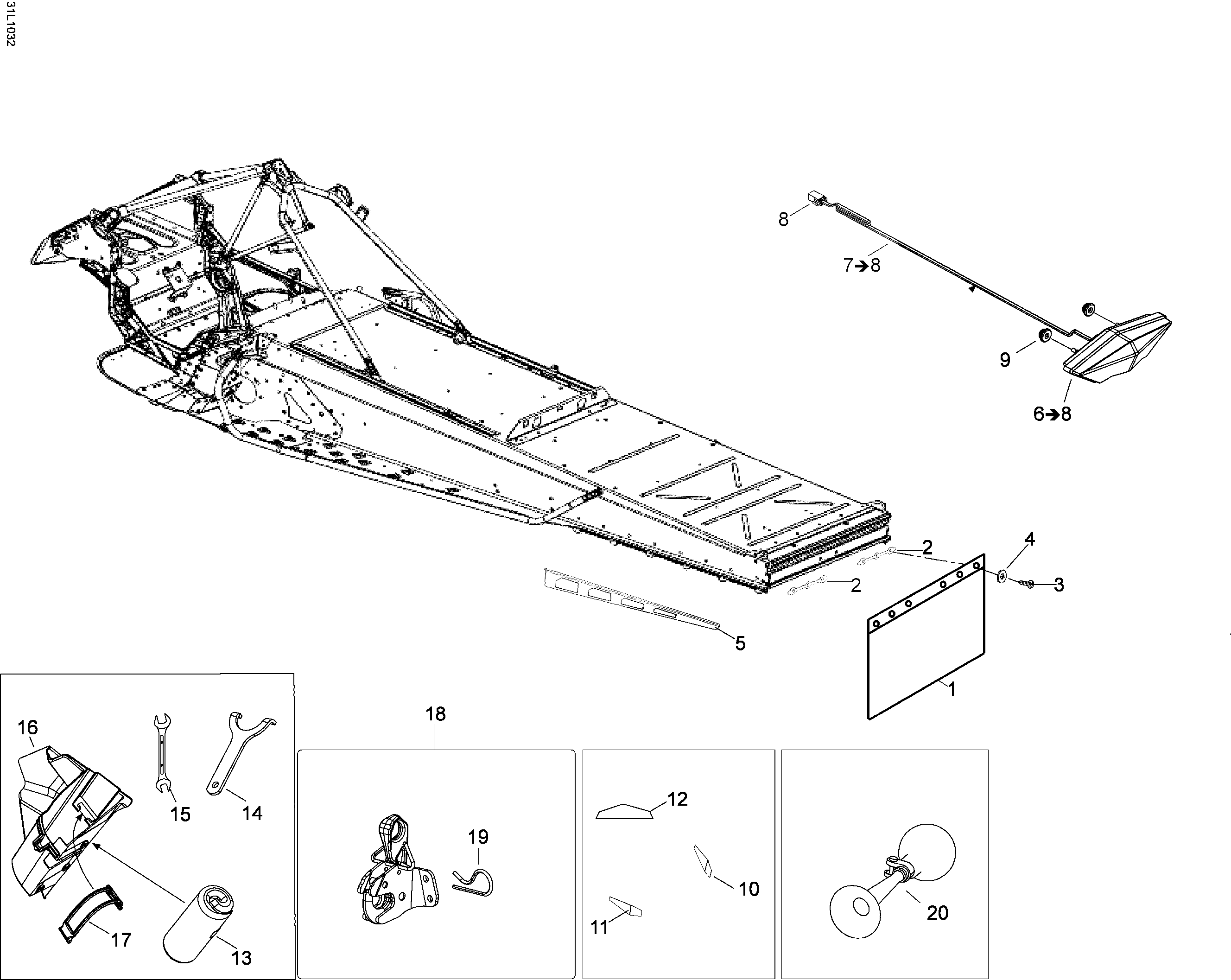

09- Utilities для BRP Lynx Adventure GT 1200 4-TEC - 2010
-
№АртикулНазвание
-
1520000857 Snow GuardSnow Guard
-
2520000847 Threaded PlateThreaded Plate
-
3250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
4250200025 Washer M5Washer M5
-
5520000693 RH ProtectorRH Protector
-
5520000694 LH ProtectorLH Protector
-
6520000692 Rear lightRear light
-
7520000849 Rear Wiring HarnessRear Wiring Harness
-
8515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
940611 Screw plastofastScrew plastofast
-
10520000843 RH ReflectorRH Reflector
-
11520000844 LH ReflectorLH Reflector
-
12705002423 Front Lateral Reflector, AmberFront Lateral Reflector, Amber
-
13529000050 Tool KitTool Kit
-
14529035582 Adjustment WrenchAdjustment Wrench
-
1534017 WrenchWrench
-
16520000720 Tool Kit RackTool Kit Rack
-
17520000528 LatchLatch
-
18520000796 Hitch Ass'yHitch Ass'y
-
1941029 Hair pinHair pin
-
20549011291 HornHorn
