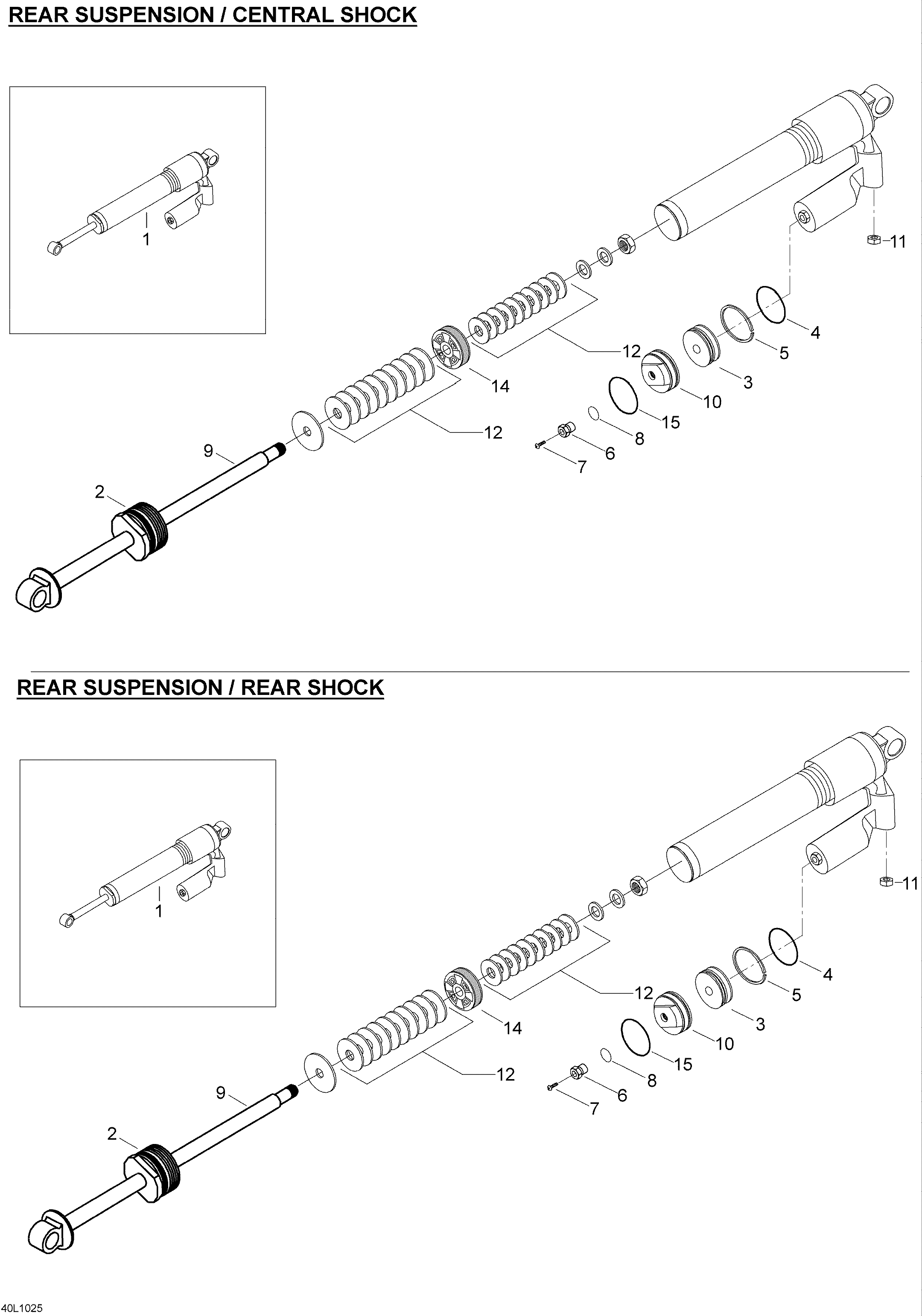

07- Take Apart Shock rear для BRP Lynx Rave RE 600 E-TEC - 2010
-
№АртикулНазвание
-
1619330003 Shock, front arm (service)Shock, front arm (service)
-
1619330005 Shock, rear arm (service)Shock, rear arm (service)
-
2230060 Seal carrier assySeal carrier assy
-
4415093807 O-RingO-Ring
-
5503189006 Piston RingPiston Ring
-
6505070398 Air Valve RingAir Valve Ring
-
7505070399 ScrewScrew
-
8505070400 O-RingO-Ring
-
9619300013 Rod ass'y, front armRod ass'y, front arm
-
10619300009 Seal carrier assySeal carrier assy
-
12230029 Leaf valve 20x0.114Leaf valve 20x0.114
-
12230030 Leaf valve 20x0.152Leaf valve 20x0.152
-
12230031 Leaf valve 20x0.203Leaf valve 20x0.203
-
12230032 Leaf valve 20x0.254Leaf valve 20x0.254
-
12503189011 Leaf Valve O22 X 0.114 (C46)Leaf Valve O22 X 0.114 (C46)
-
12503189012 Leaf Valve O22 X 0.152 (C46)Leaf Valve O22 X 0.152 (C46)
-
12503189016 Leaf Valve O24 X 0.114 (C46)Leaf Valve O24 X 0.114 (C46)
-
12503189017 Leaf Valve O24 X 0.152 (C46)Leaf Valve O24 X 0.152 (C46)
-
12503189018 Leaf Valve O24 X 0.203 (C46)Leaf Valve O24 X 0.203 (C46)
-
12503189019 Leaf Valve O24 X 0.254 (C46)Leaf Valve O24 X 0.254 (C46)
-
12503189021 Leaf Valve O26 X 0.114 (C46)Leaf Valve O26 X 0.114 (C46)
-
12503189023 Leaf Valve O26 X 0.203 (C46)Leaf Valve O26 X 0.203 (C46)
-
12503189026 Leaf Valve O28 X 0.114 (C46)Leaf Valve O28 X 0.114 (C46)
-
12503189027 Leaf Valve O28 X 0.152 (C46)Leaf Valve O28 X 0.152 (C46)
-
12503189033 Leaf Valve O30 X 0.203 (C46)Leaf Valve O30 X 0.203 (C46)
-
12230082 Leaf valve 32x0.114Leaf valve 32x0.114
-
12230033 Leaf valve 34x0.114Leaf valve 34x0.114
-
12230034 Leaf valve 34x0.152Leaf valve 34x0.152
-
12230035 Leaf valve 34x0.203Leaf valve 34x0.203
-
12230036 Leaf valve 34x0.254Leaf valve 34x0.254
-
12230037 Leaf valve 36x0.114Leaf valve 36x0.114
-
12503189036 Leaf Valve O36 X 0.152 (C46)Leaf Valve O36 X 0.152 (C46)
-
12503189038 Leaf Valve O36 X 0.254 (C46)Leaf Valve O36 X 0.254 (C46)
-
12230040 Leaf valve 38x0.152Leaf valve 38x0.152
-
12230041 Leaf valve 38x0.203Leaf valve 38x0.203
-
12230042 Leaf valve 38x0.254Leaf valve 38x0.254
-
12503189039 Leaf Valve O40 X 0.152 (C46)Leaf Valve O40 X 0.152 (C46)
-
13503189020 Leaf Valve O24 X 0.305 (C46)Leaf Valve O24 X 0.305 (C46)
-
14503189003 Piston, O1.2 (C46)Piston, O1.2 (C46)
-
14503189002 Piston, O1.7 (C46)Piston, O1.7 (C46)
-
14230039 Piston 2.0 mmPiston 2.0 mm
-
14230043 Piston 0mmPiston 0mm
-
15415093804 O-RingO-Ring
