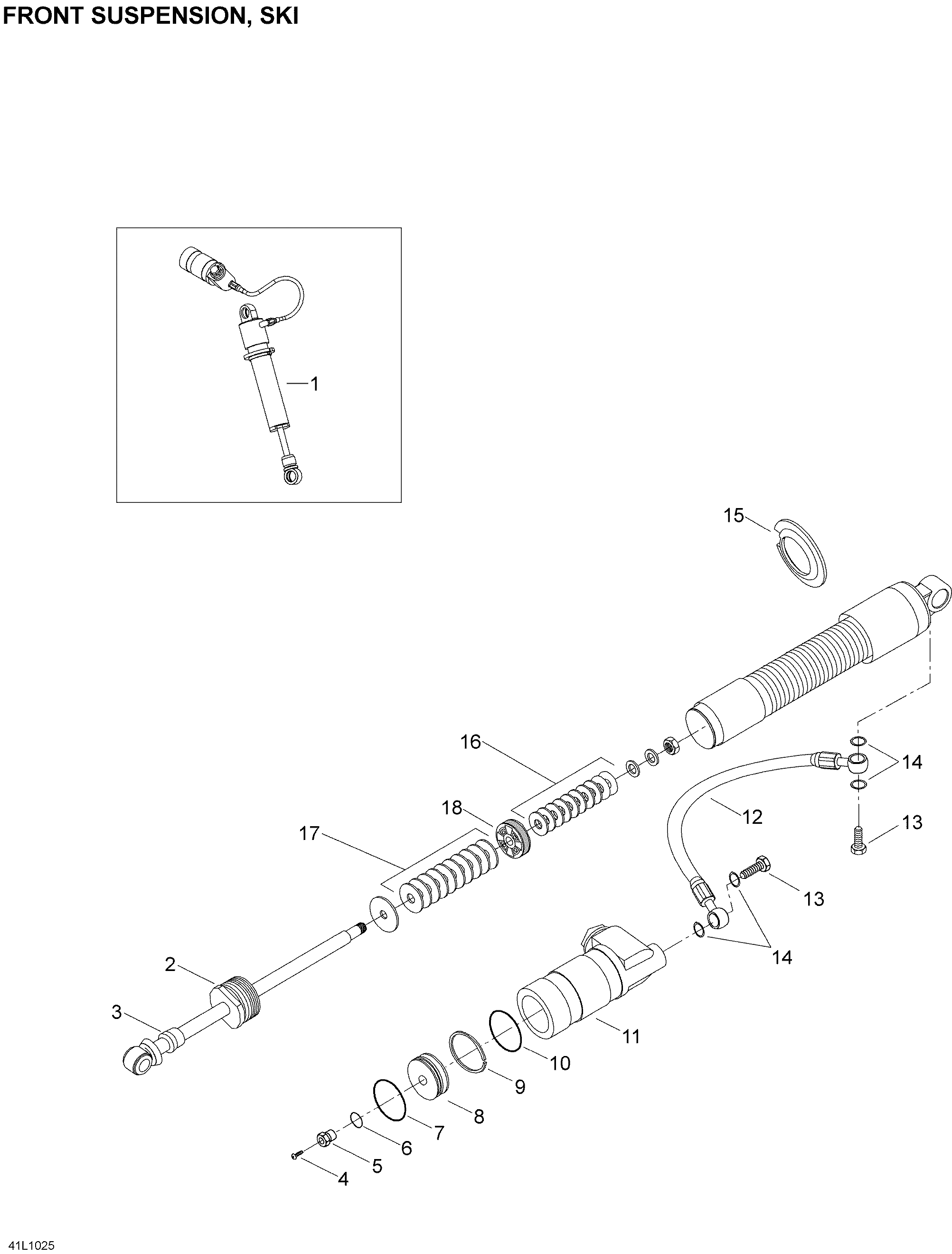

07- Take Apart Shock, Ski для BRP Lynx Rave RE 600 E-TEC - 2010
-
№АртикулНазвание
-
1505072819 R.H.Shock. Includes 1 to 14R.H.Shock. Includes 1 to 14
-
1505072817 L.H.Shock. Includes 1 to 14L.H.Shock. Includes 1 to 14
-
2619300004 Seal carrier ass'ySeal carrier ass'y
-
3619300005 Rod assyRod assy
-
4505070398 Air Valve RingAir Valve Ring
-
5505070399 ScrewScrew
-
6505070400 O-RingO-Ring
-
7619300006 Ring stopRing stop
-
8619300007 Floating pistonFloating piston
-
9415093806 Piston RingPiston Ring
-
10415093807 O-RingO-Ring
-
11415128596 ReservoirReservoir
-
12619300008 HoseHose
-
13415093810 BoltBolt
-
14415038700 O-RingO-Ring
-
15415128598 Spring CollarSpring Collar
-
16230121 Leaf valve 17x0.203Leaf valve 17x0.203
-
16230015 Leaf valve 18x0.114Leaf valve 18x0.114
-
16230016 Leaf valve 18x0.254Leaf valve 18x0.254
-
16230017 Leaf valve 20x0.254Leaf valve 20x0.254
-
16230018 Leaf valve 22x0.114Leaf valve 22x0.114
-
16230019 Leaf valve 22x0.254Leaf valve 22x0.254
-
16230021 Leaf valve 24x0.114Leaf valve 24x0.114
-
16230022 Leaf valve 24x0.152Leaf valve 24x0.152
-
16230023 Leaf valve 24x0.203Leaf valve 24x0.203
-
16230024 Leaf valve 26x0.114Leaf valve 26x0.114
-
16230025 Leaf valve 28x0.114Leaf valve 28x0.114
-
16230026 Leaf valve 28x0.254Leaf valve 28x0.254
-
16619300168 Leaf valve 30x0.254Leaf valve 30x0.254
-
17230121 Leaf valve 17x0.203Leaf valve 17x0.203
-
17230015 Leaf valve 18x0.114Leaf valve 18x0.114
-
17230016 Leaf valve 18x0.254Leaf valve 18x0.254
-
17230017 Leaf valve 20x0.254Leaf valve 20x0.254
-
17230018 Leaf valve 22x0.114Leaf valve 22x0.114
-
17414888324 Leaf Valve O22 X 0.203 (C36)Leaf Valve O22 X 0.203 (C36)
-
17230019 Leaf valve 22x0.254Leaf valve 22x0.254
-
17230021 Leaf valve 24x0.114Leaf valve 24x0.114
-
17230022 Leaf valve 24x0.152Leaf valve 24x0.152
-
17230023 Leaf valve 24x0.203Leaf valve 24x0.203
-
17230024 Leaf valve 26x0.114Leaf valve 26x0.114
-
17230025 Leaf valve 28x0.114Leaf valve 28x0.114
-
17230026 Leaf valve 28x0.254Leaf valve 28x0.254
-
18230027 Piston, 1 slitsPiston, 1 slits
-
18414888305 Piston (2 X 0.3-2) (C36)Piston (2 X 0.3-2) (C36)
-
18230028 Piston, 3 slitsPiston, 3 slits
