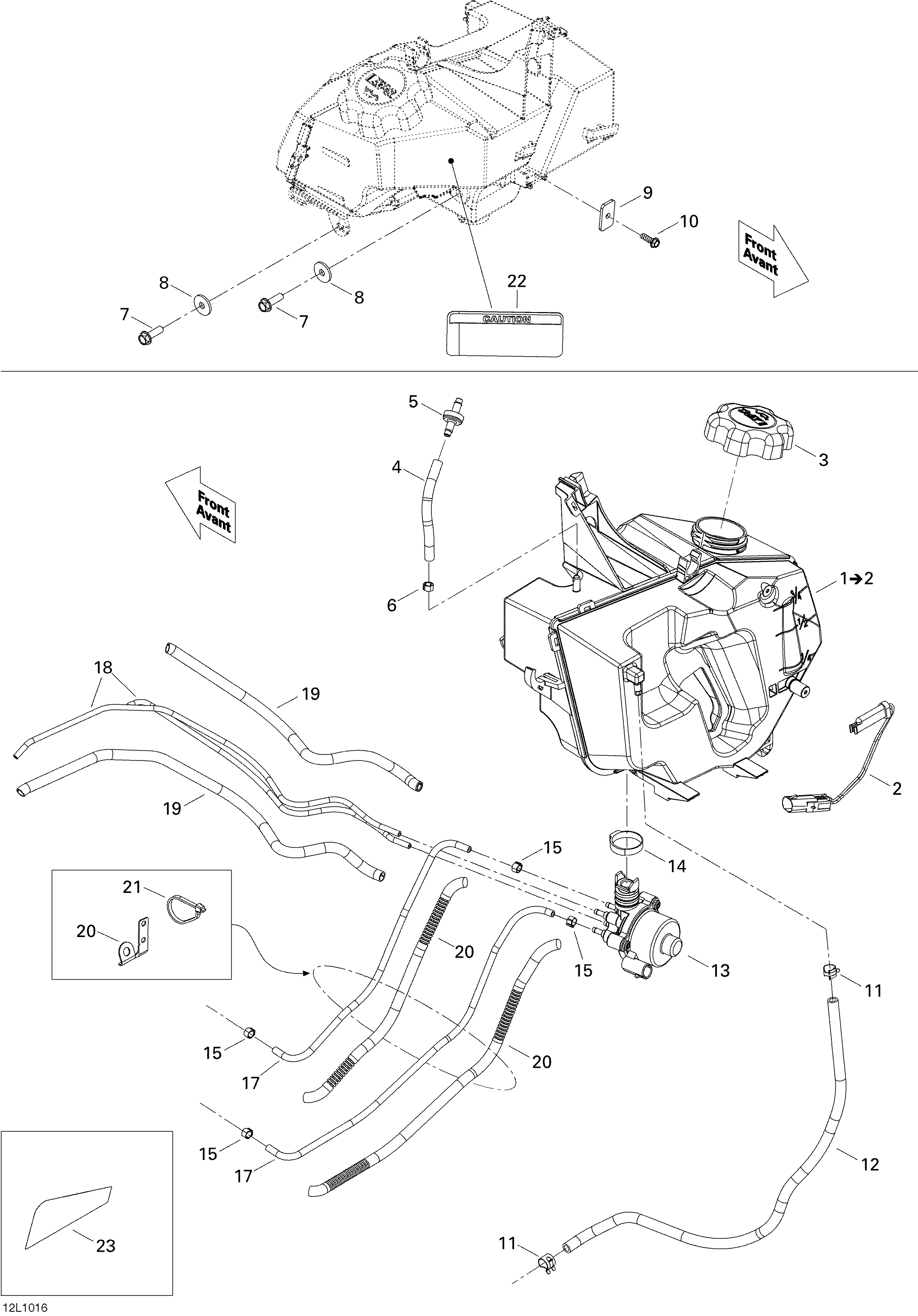

02- Oil System 600 HO ETEC для BRP Lynx Xtrim 600 E-TEC - 2010
-
№АртикулНазвание
-
1519000237 Oil Tank. Includes 1 to 2Oil Tank. Includes 1 to 2
-
2515176508 Level SensorLevel Sensor
-
3519000194 CapCap
-
4415080200 Hose, PolyurethaneHose, Polyurethane
-
5275500398 Check ValveCheck Valve
-
6414554800 Spring ClampSpring Clamp
-
7250000331 Hex. Head Flanged Forming Screw M6X20Hex. Head Flanged Forming Screw M6X20
-
8224061201 Flat WasherFlat Washer
-
9519000179 BracketBracket
-
10241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
11414554800 Spring ClampSpring Clamp
-
12415080200 Hose, PolyurethaneHose, Polyurethane
-
13519000240 Oil PumpOil Pump
-
14293650099 Oetiker Gear ClampOetiker Gear Clamp
-
15293650100 Oetiker ClampOetiker Clamp
-
17519000182 HoseHose
-
18519000184 HoseHose
-
19515175442 Tubing 6 mmTubing 6 mm
-
20519000245 BracketBracket
-
21293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
22516003875 Warning DecalWarning Decal
-
23516003861 Protect DecalProtect Decal
