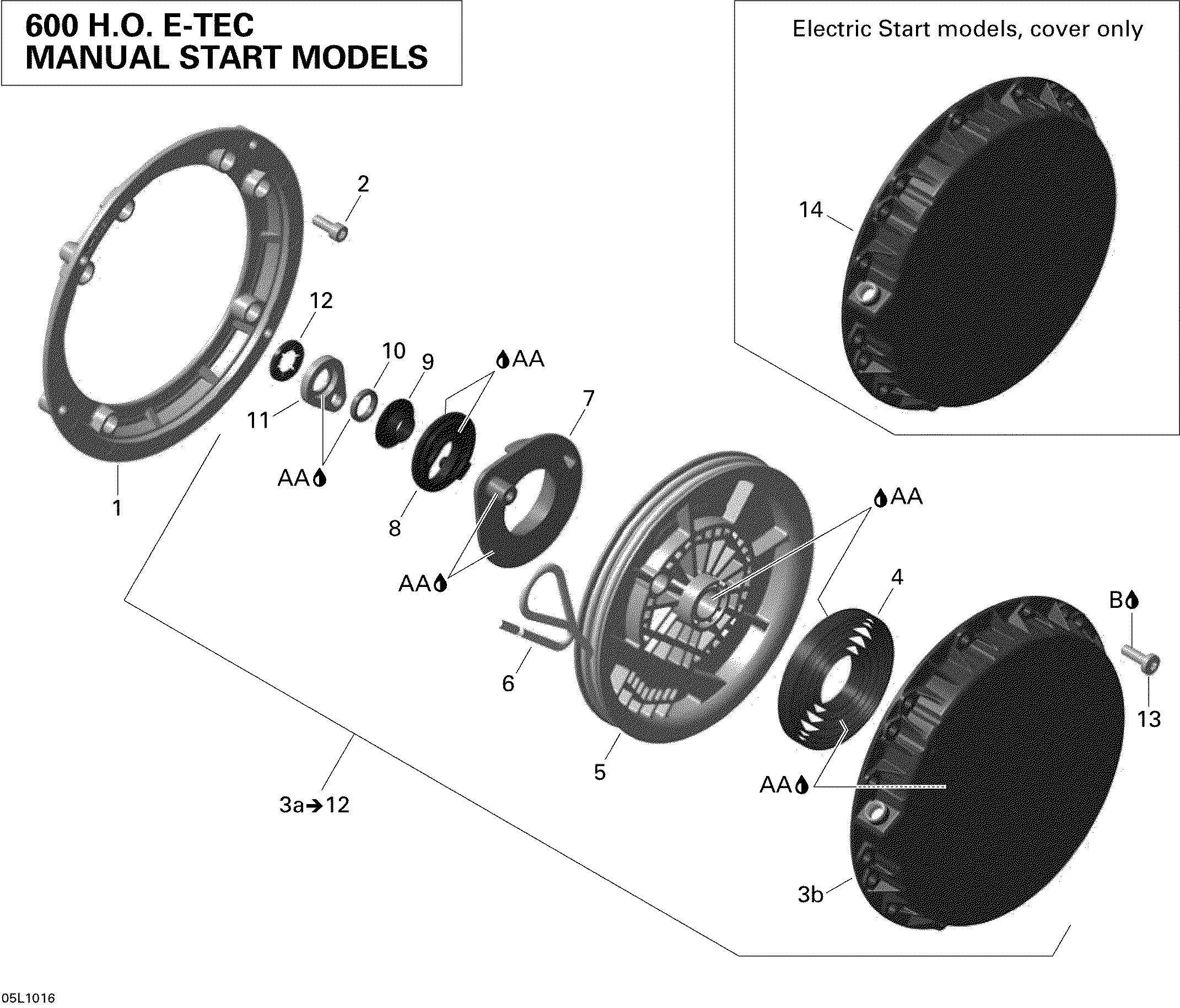

04- Rewind Starter для BRP Lynx Xtrim 600 E-TEC - 2010
-
№АртикулНазвание
-
1420810868 Flange ConnectorFlange Connector
-
2420241236 Socket Head Screw M6 X 16Socket Head Screw M6 X 16
-
3a420892615 Rewind Starter Ass'y. Includes 3a to 12, Manual StartRewind Starter Ass'y. Includes 3a to 12, Manual Start
-
3b420910253 Starter Housing. Manual StartStarter Housing. Manual Start
-
4420939115 Rewind Spring. Manual StartRewind Spring. Manual Start
-
5420852288 Rope Sheave. Manual StartRope Sheave. Manual Start
-
6412500200 Starter Rope, Meter. Manual StartStarter Rope, Meter. Manual Start
-
7420852292 Pawl. Manual StartPawl. Manual Start
-
8420852308 Pawl Lock. Manual StartPawl Lock. Manual Start
-
9420847926 Stage Sleeve. Manual StartStage Sleeve. Manual Start
-
10420250407 O-Ring. Manual StartO-Ring. Manual Start
-
11420852520 Lock Ring. Manual StartLock Ring. Manual Start
-
12420845560 Locking Element. Manual StartLocking Element. Manual Start
-
13420941256 Hex. Collar ScrewHex. Collar Screw
-
14420910254 Cover. Electrical StartCover. Electrical Start
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
AA420899763 Molykote PG 54, 10 gMolykote PG 54, 10 g
