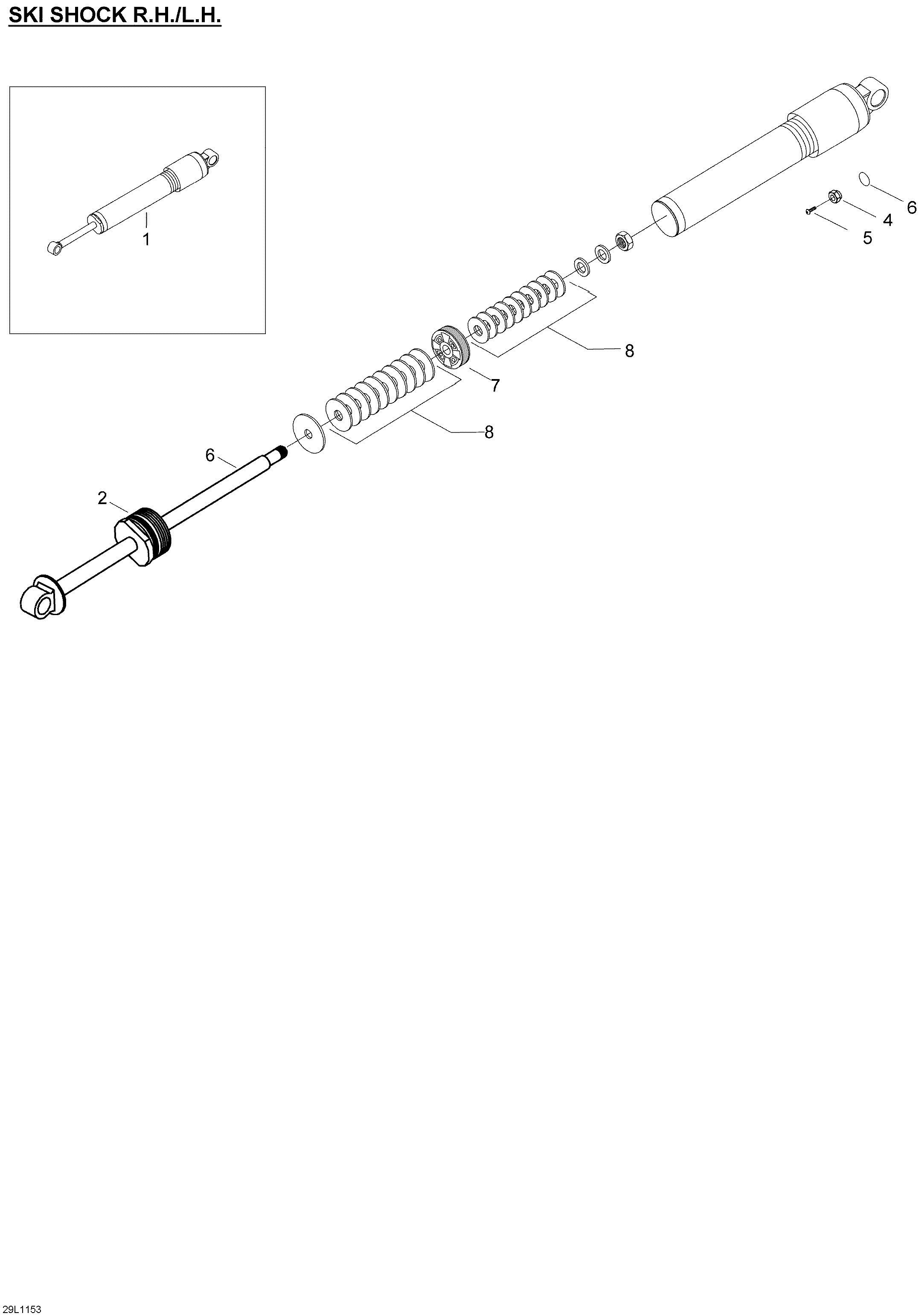

07- Take Apart Shock, Ski для BRP Lynx Xtrim BoonDocker 800R E-TEC - 2011
-
№АртикулНазвание
-
1505073004 R.H.ShockR.H.Shock
-
1505073004 L.H.ShockL.H.Shock
-
2619300004 Seal carrier ass'ySeal carrier ass'y
-
3619300005 Rod assyRod assy
-
4505070398 Air Valve RingAir Valve Ring
-
5505070399 ScrewScrew
-
6505070400 O-RingO-Ring
-
7619300108 Piston 36mm., 0 X 0,3 SlitsPiston 36mm., 0 X 0,3 Slits
-
7415128848 Piston (2 X 0,3-1) (C36)Piston (2 X 0,3-1) (C36)
-
7414888305 Piston (2 X 0.3-2) (C36)Piston (2 X 0.3-2) (C36)
-
7619300071 Piston 36mm., 3 X 0,3 SlitsPiston 36mm., 3 X 0,3 Slits
-
7619300109 Piston 36mm., 4 X 0,3 SlitsPiston 36mm., 4 X 0,3 Slits
-
7619300111 Piston 36mm., 5 X 0,3 SlitsPiston 36mm., 5 X 0,3 Slits
-
7619300110 Piston 36mm., 6 X 0,3 SlitsPiston 36mm., 6 X 0,3 Slits
-
8415038800 Leaf Valve O12 X 0.114 (C36)Leaf Valve O12 X 0.114 (C36)
-
8619300075 Shim 36/40 mm. 12 X 0,152Shim 36/40 mm. 12 X 0,152
-
8619300117 Shim 36/40 mm. 12 X 0,203Shim 36/40 mm. 12 X 0,203
-
8619300120 Shim 36/40 mm. 12 X 0,254Shim 36/40 mm. 12 X 0,254
-
8619300076 Shim 36/40 mm. 13 X 0,114Shim 36/40 mm. 13 X 0,114
-
8619300077 Shim 36/40 mm. 13 X 0,152Shim 36/40 mm. 13 X 0,152
-
8619300078 Shim 36/40 mm. 13 X 0,203Shim 36/40 mm. 13 X 0,203
-
8619300079 Shim 36/40 mm. 13 X 0,254Shim 36/40 mm. 13 X 0,254
-
8619300080 Shim 36/40 mm. 14 X 0,114Shim 36/40 mm. 14 X 0,114
-
8619300081 Shim 36/40 mm. 14 X 0,152Shim 36/40 mm. 14 X 0,152
-
8619300082 Shim 36/40 mm. 14 X 0,203Shim 36/40 mm. 14 X 0,203
-
8619300083 Shim 36/40 mm. 14 X 0,254Shim 36/40 mm. 14 X 0,254
-
8414888337 Leaf Valve O15 X 0.114 (C36)Leaf Valve O15 X 0.114 (C36)
-
8619300115 Shim 36/40 mm. 15 X 0,152Shim 36/40 mm. 15 X 0,152
-
8414888335 Leaf Valve O15 X 0.203 (C36)Leaf Valve O15 X 0.203 (C36)
-
8619300118 Shim 36/40 mm. 15 X 0,254Shim 36/40 mm. 15 X 0,254
-
8619300084 Shim 36/40 mm. 16 X 0,114Shim 36/40 mm. 16 X 0,114
-
8619300114 Shim 36/40 mm. 16 X 0,152Shim 36/40 mm. 16 X 0,152
-
8619300119 Shim 36/40 mm. 16 X 0,203Shim 36/40 mm. 16 X 0,203
-
8619300116 Shim 36/40 mm. 16 X 0,254Shim 36/40 mm. 16 X 0,254
-
8619300085 Shim 36/40 mm. 17 X 0,114Shim 36/40 mm. 17 X 0,114
-
8619300086 Shim 36/40 mm. 17 X 0,152Shim 36/40 mm. 17 X 0,152
-
8619300087 Shim 36/40 mm. 17 X 0,203Shim 36/40 mm. 17 X 0,203
-
8619300058 Shim 36/40 mm. 17 X 0,254Shim 36/40 mm. 17 X 0,254
-
8230015 Shim 36/40 mm. 18 X 0,114Shim 36/40 mm. 18 X 0,114
-
8414888330 Leaf Valve O18 X 0.152 (C36)Leaf Valve O18 X 0.152 (C36)
-
8414888329 Leaf Valve O18 X 0.203 (C36)Leaf Valve O18 X 0.203 (C36)
-
8230016 Shim 36/40 mm. 18 X 0,254Shim 36/40 mm. 18 X 0,254
-
8619300088 Shim 36/40 mm. 19 X 0,114Shim 36/40 mm. 19 X 0,114
-
8619300089 Shim 36/40 mm. 19 X 0,152Shim 36/40 mm. 19 X 0,152
-
8619300090 Shim 36/40 mm. 19 X 0,203Shim 36/40 mm. 19 X 0,203
-
8619300091 Shim 36/40 mm. 19 X 0,254Shim 36/40 mm. 19 X 0,254
-
8414888328 Leaf Valve O20 X 0.114 (C36)Leaf Valve O20 X 0.114 (C36)
-
8414888327 Leaf Valve O20 X 0.152 (C36)Leaf Valve O20 X 0.152 (C36)
-
8414888326 Leaf Valve O20 X 0.203 (C36)Leaf Valve O20 X 0.203 (C36)
-
8230017 Shim 36/40 mm. 20 X 0,254Shim 36/40 mm. 20 X 0,254
-
8414888340 Leaf Valve O21 X 0.114 (C36)Leaf Valve O21 X 0.114 (C36)
-
8619300092 Shim 36/40 mm. 21 X 0,152Shim 36/40 mm. 21 X 0,152
-
8619300093 Shim 36/40 mm. 21 X 0,203Shim 36/40 mm. 21 X 0,203
-
8619300094 Shim 36/40 mm. 21 X 0,254Shim 36/40 mm. 21 X 0,254
-
8230018 Shim 36/40 mm. 22 X 0,114Shim 36/40 mm. 22 X 0,114
-
8619300129 Shim 36/40 mm. 22 X 0,152Shim 36/40 mm. 22 X 0,152
-
8619300098 Shim 36/40 mm. 22 X 0,203Shim 36/40 mm. 22 X 0,203
-
8230019 Shim 36/40 mm. 22 X 0,254Shim 36/40 mm. 22 X 0,254
-
8230021 Shim 36/40 mm. 24 X 0,114Shim 36/40 mm. 24 X 0,114
-
8230022 Shim 36/40 mm. 24 X 0,152Shim 36/40 mm. 24 X 0,152
-
8230023 Shim 36/40 mm. 24 X 0,203Shim 36/40 mm. 24 X 0,203
-
8619300095 Shim 36/40 mm. 24 X 0,254Shim 36/40 mm. 24 X 0,254
-
8230024 Shim 36/40 mm. 26 X 0,114Shim 36/40 mm. 26 X 0,114
-
8619300130 Shim 36/40 mm. 26 X 0,152Shim 36/40 mm. 26 X 0,152
-
8414888322 Leaf Valve O26 X 0.203 (C36)Leaf Valve O26 X 0.203 (C36)
-
8619300099 Shim 36/40 mm. 26 X 0,254Shim 36/40 mm. 26 X 0,254
-
8230025 Shim 36/40 mm. 28 X 0,114Shim 36/40 mm. 28 X 0,114
-
8619300096 Shim 36/40 mm. 28 X 0,152Shim 36/40 mm. 28 X 0,152
-
8619300102 Shim 36/40 mm. 28 X 0,203Shim 36/40 mm. 28 X 0,203
-
8230026 Shim 36/40 mm. 28 X 0,254Shim 36/40 mm. 28 X 0,254
-
8619300167 Shim 36/40 mm. 30 X 0,152Shim 36/40 mm. 30 X 0,152
-
8619300132 Shim 36/40 mm. 30 X 0,203Shim 36/40 mm. 30 X 0,203
-
8619300168 Shim 36/40 mm. 30 X 0,254Shim 36/40 mm. 30 X 0,254
