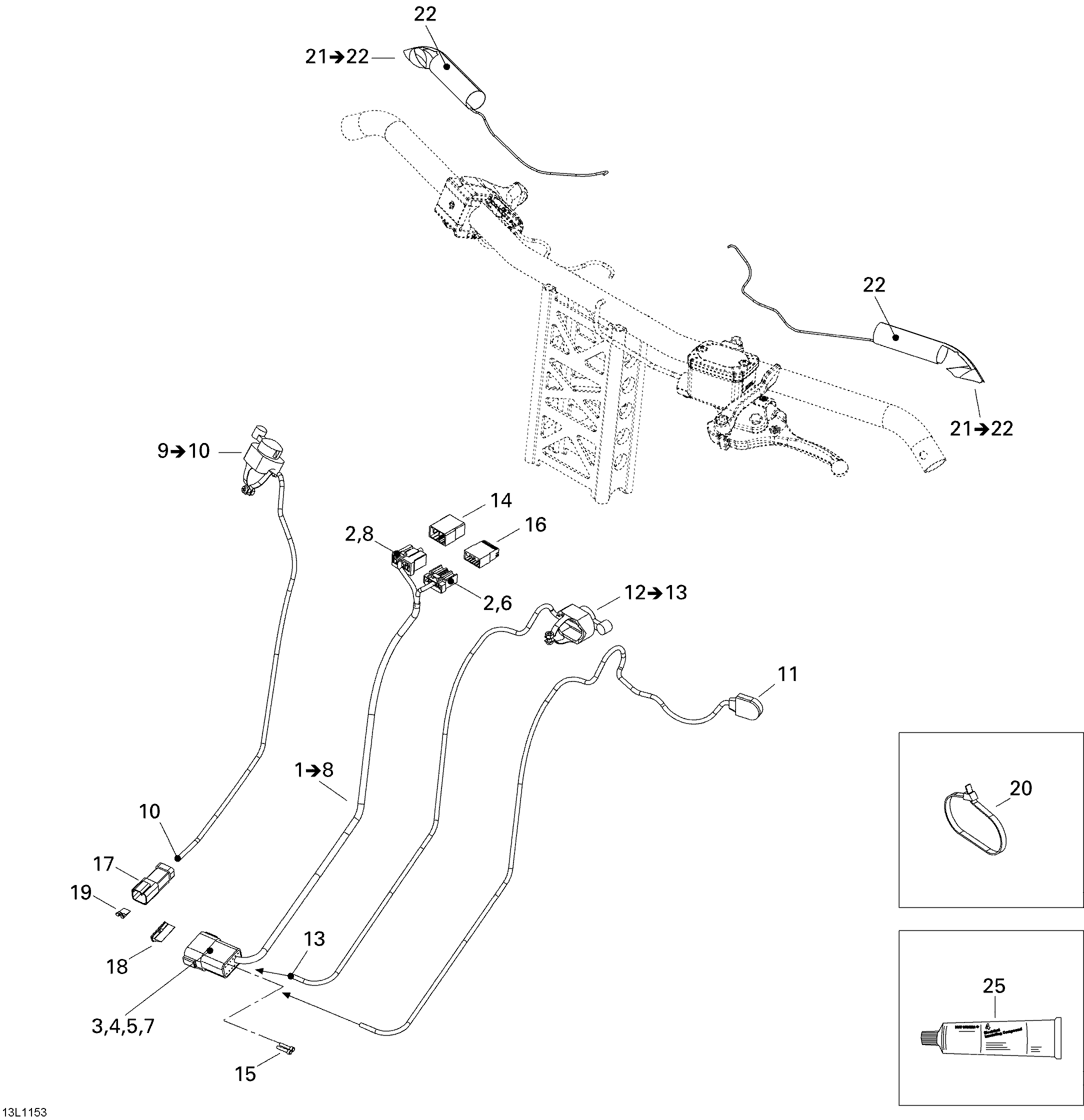

10- Steering Harness для BRP Lynx Xtrim BoonDocker 800R E-TEC - 2011
-
№АртикулНазвание
-
1515176984 Steering Wiring Harness Ass'y. Includes 1 to 8Steering Wiring Harness Ass'y. Includes 1 to 8
-
2515175231 Female TerminalFemale Terminal
-
3278000631 Male TerminalMale Terminal
-
4409015600 Male Lock, 12 CircuitsMale Lock, 12 Circuits
-
5293000052 Sealing CapSealing Cap
-
6515175543 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
7515175669 Male HousingMale Housing
-
8515175819 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
9515176988 Kill Switch. Includes 9 to 10Kill Switch. Includes 9 to 10
-
10515175768 Male TerminalMale Terminal
-
11515176987 SwitchSwitch
-
12515176997 Dimmer Switch. Includes 12 to 13Dimmer Switch. Includes 12 to 13
-
13515175768 Male TerminalMale Terminal
-
14515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
15293000052 Sealing CapSealing Cap
-
16515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
17515175665 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
18409015600 Male Lock, 12 CircuitsMale Lock, 12 Circuits
-
19409207500 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
20293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
21506152515 Heating ElementHeating Element
-
22515175232 Male TerminalMale Terminal
-
23293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
24293750008 Tie-Rap 350 mmTie-Rap 350 mm
