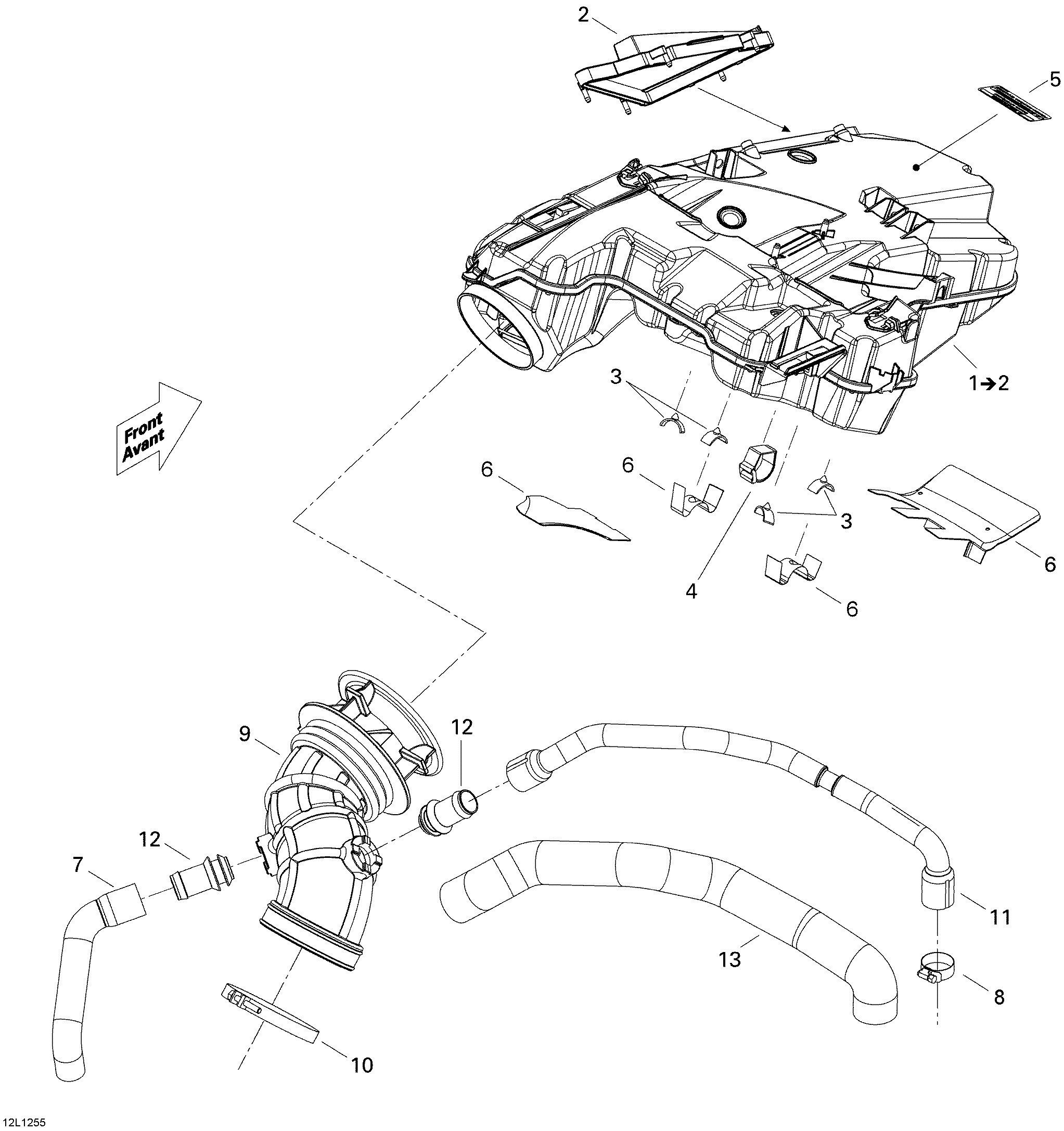

02- Air Intake System для BRP Lynx Adventure GT 1200 4-TEC CE - 2012
-
№АртикулНазвание
-
1508000693 Secondary Chamber Ass'ySecondary Chamber Ass'y
-
2508000609 Air FilterAir Filter
-
3508000537 StopperStopper
-
4508000532 Strip VelcroStrip Velcro
-
5516004651 Caution Label, Air IntakeCaution Label, Air Intake
-
644001 Reflective Sheet (1m X 1m)Reflective Sheet (1m X 1m)
-
7508000616 Formed HoseFormed Hose
-
8293650172 Tridon Gear ClampTridon Gear Clamp
-
9508000549 Intake HoseIntake Hose
-
10508000346 Gemi ClampGemi Clamp
-
11508000615 Vent HoseVent Hose
-
12273000234 BreatherBreather
-
13508000648 Tube IsolatorTube Isolator
