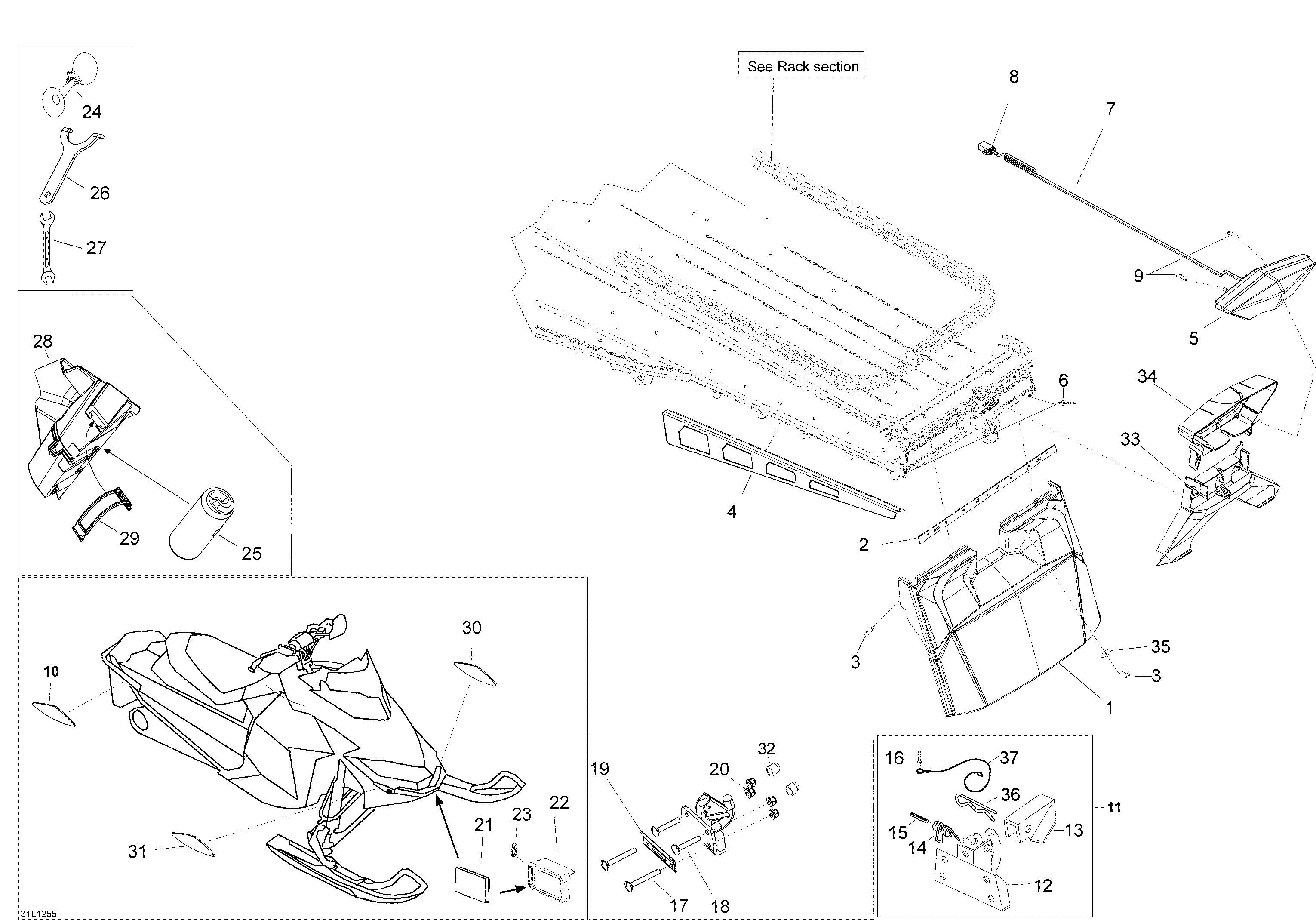

09- Utilities для BRP Lynx Adventure GT 1200 4-TEC CE - 2012
-
№АртикулНазвание
-
1520001001 Snow guardSnow guard
-
2520001021 PlatePlate
-
3732600030 ScrewScrew
-
4520000693 RH ProtectorRH Protector
-
4520000694 LH ProtectorLH Protector
-
5520000692 Rear lightRear light
-
6293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
7520000849 Rear Wiring HarnessRear Wiring Harness
-
8515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
940611 Screw plastofaxScrew plastofax
-
10705002423 Front Lateral Reflector, AmberFront Lateral Reflector, Amber
-
11520001039 Hitch Ass'yHitch Ass'y
-
12520001040 Hook HitchHook Hitch
-
13520001041 Locking PlateLocking Plate
-
14545693 SpringSpring
-
1541012 PinPin
-
16390909100 Avex RivetAvex Rivet
-
17207784044 Bolt Carriage M8 X 40Bolt Carriage M8 X 40
-
18207782544 Carriage Bolt, M8 X 25Carriage Bolt, M8 X 25
-
19520000727 PlatePlate
-
20233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
2121118 Reflector (Bright)Reflector (Bright)
-
22520000871 Reflector SupportReflector Support
-
2327120 Tie rapTie rap
-
24549011291 HornHorn
-
25529000055 Tool KitTool Kit
-
26529035582 Adjustment WrenchAdjustment Wrench
-
2734017 WrenchWrench
-
28520000720 Tool Kit RackTool Kit Rack
-
29520000528 LatchLatch
-
30520000844 LH ReflectorLH Reflector
-
31520000843 RH ReflectorRH Reflector
-
3228056 CoverCover
-
33511000559 Rear Light SupportRear Light Support
-
34511000763 Rear light coverRear light cover
-
35250200025 Washer M5Washer M5
-
3641029 Hair pinHair pin
-
375446839 Retainer CableRetainer Cable
