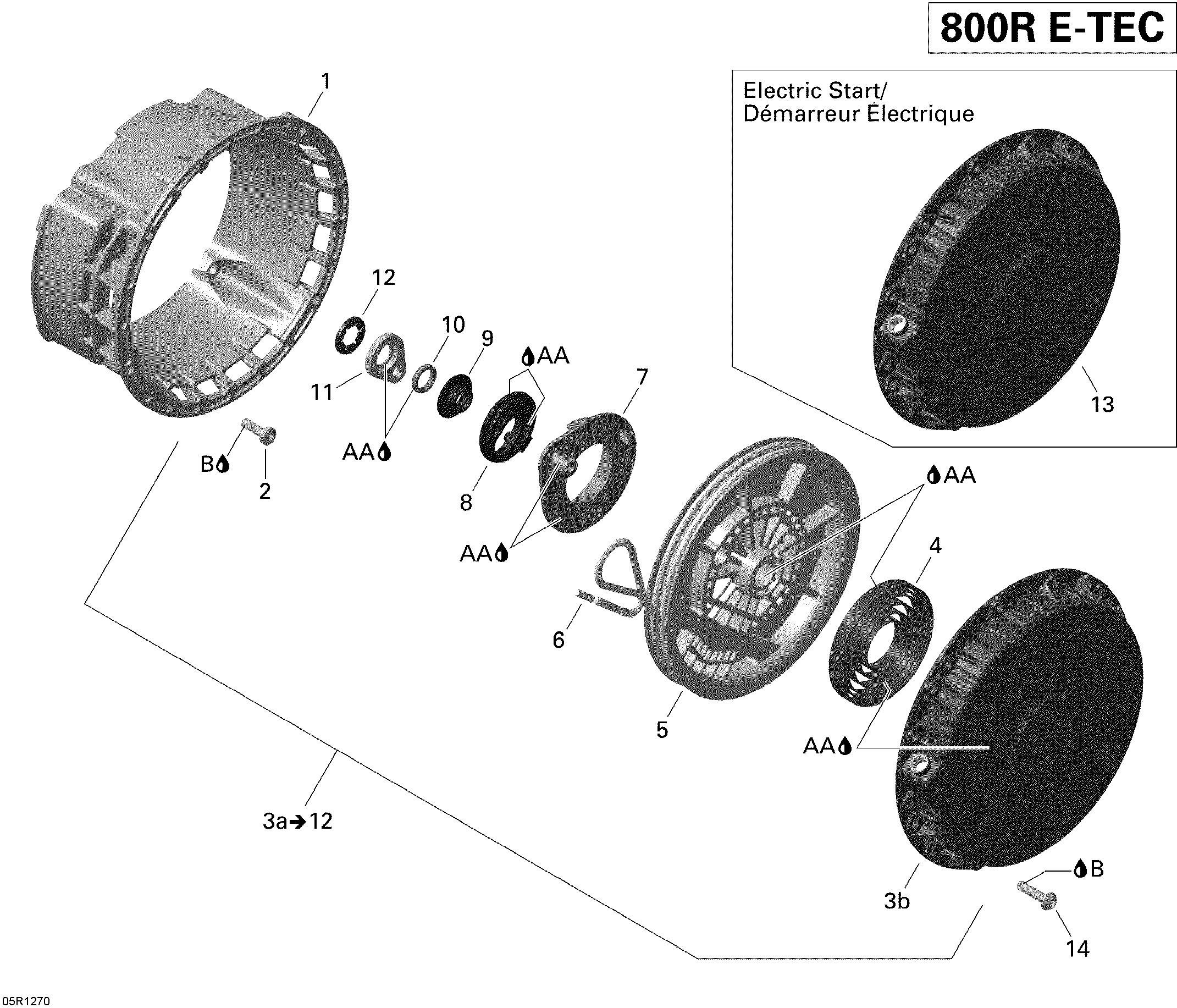

04- Rewind Starter для BRP Lynx Rave RE 800R E-TEC (E) - 2012
-
№АртикулНазвание
-
1420812941 Flange ConnectorFlange Connector
-
2420941256 Hex. Collar ScrewHex. Collar Screw
-
3a420892616 Rewind Starter Ass'y. Includes 3a to 12, Manual StartRewind Starter Ass'y. Includes 3a to 12, Manual Start
-
3b420910255 Starter Housing. Manual StartStarter Housing. Manual Start
-
4420939115 Rewind Spring. Manual StartRewind Spring. Manual Start
-
5420852288 Rope Sheave. Manual StartRope Sheave. Manual Start
-
6412500200 Starter Rope, Meter. Manual StartStarter Rope, Meter. Manual Start
-
7420852295 Pawl. Manual StartPawl. Manual Start
-
8420852640 Pawl Lock. Manual StartPawl Lock. Manual Start
-
9420847926 Stage Sleeve. Manual StartStage Sleeve. Manual Start
-
10420250407 O-Ring. Manual StartO-Ring. Manual Start
-
11420852520 Lock Ring. Manual StartLock Ring. Manual Start
-
12420845560 Locking Element. Manual StartLocking Element. Manual Start
-
13420910254 Cover. Electrical StartCover. Electrical Start
-
14420940431 ScrewScrew
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
AA420899763 Molykote PG 54, 10 gMolykote PG 54, 10 g
