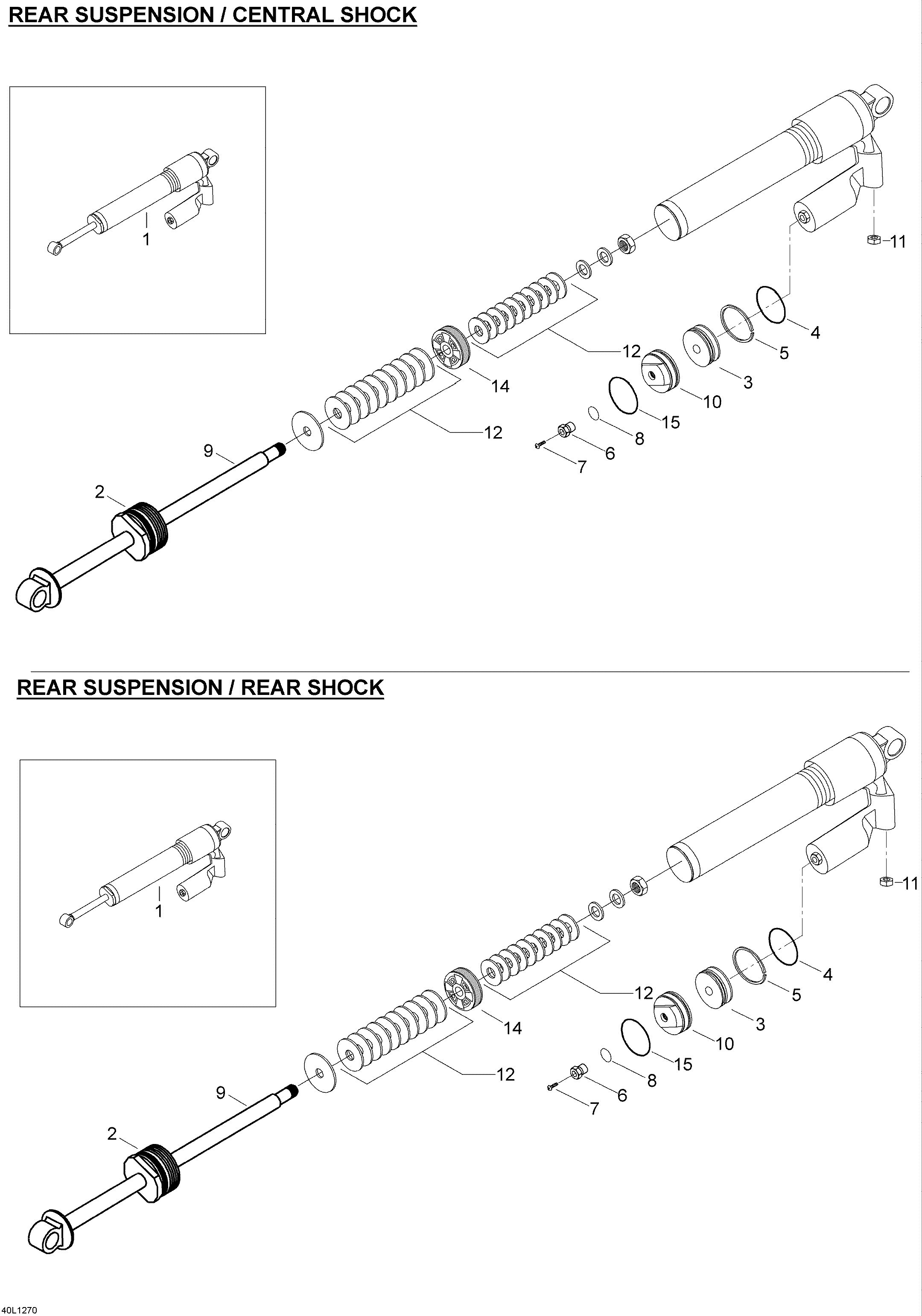

08- Rear Shocks для BRP Lynx Rave RE 800R E-TEC (E) - 2012
-
№АртикулНазвание
-
1503193039 Shock, front arm (503192039)Shock, front arm (503192039)
-
1503193041 Shock, rear arm (503193041)Shock, rear arm (503193041)
-
2230060 Seal carrier assySeal carrier assy
-
4415093807 O-RingO-Ring
-
5503189006 Piston RingPiston Ring
-
6505070398 Air ValveAir Valve
-
7505070399 ScrewScrew
-
8505070400 O-RingO-Ring
-
9619300013 Rod ass'y, front armRod ass'y, front arm
-
9619300021 Rod ass'y, rear armRod ass'y, rear arm
-
10619300009 Seal carrier assySeal carrier assy
-
11619300015 Valve ass'yValve ass'y
-
12619300060 Shim 46 mm. 17 X 0,114Shim 46 mm. 17 X 0,114
-
12619300069 Shim 46 mm. 17 X 0,203Shim 46 mm. 17 X 0,203
-
12619300068 Shim 46 mm. 18 X 0,114Shim 46 mm. 18 X 0,114
-
12619300067 Shim 46 mm. 18 X 0,152Shim 46 mm. 18 X 0,152
-
12230029 Shim 46 mm. 20 X 0,114Shim 46 mm. 20 X 0,114
-
12230030 Shim 46 mm. 20 X 0,152Shim 46 mm. 20 X 0,152
-
12230031 Shim 46 mm. 20 X 0,203Shim 46 mm. 20 X 0,203
-
12230032 Shim 46 mm. 20 X 0,254Shim 46 mm. 20 X 0,254
-
12619300097 Shim 46 mm. 20 X 0,305Shim 46 mm. 20 X 0,305
-
12619300143 Shim 46 mm. 22 X 0,114Shim 46 mm. 22 X 0,114
-
12619300140 Shim 46 mm. 22 X 0,152Shim 46 mm. 22 X 0,152
-
12619300098 Shim 46 mm. 22 X 0,203Shim 46 mm. 22 X 0,203
-
12619300134 Shim 46 mm. 22 X 0,254Shim 46 mm. 22 X 0,254
-
12619300144 Shim 46 mm. 22 X 0,305Shim 46 mm. 22 X 0,305
-
12619300145 Shim 46 mm. 24 X 0,114Shim 46 mm. 24 X 0,114
-
12619300146 Shim 46 mm. 24 X 0,152Shim 46 mm. 24 X 0,152
-
12619300147 Shim 46 mm. 24 X 0,203Shim 46 mm. 24 X 0,203
-
12619300095 Shim 46 mm. 24 X 0,254Shim 46 mm. 24 X 0,254
-
12619300148 Shim 46 mm. 24 X 0,305Shim 46 mm. 24 X 0,305
-
12619300149 Shim 46 mm. 26 X 0,114Shim 46 mm. 26 X 0,114
-
12619300141 Shim 46 mm. 26 X 0,152Shim 46 mm. 26 X 0,152
-
12619300150 Shim 46 mm. 26 X 0,203Shim 46 mm. 26 X 0,203
-
12619300099 Shim 46 mm. 26 X 0,254Shim 46 mm. 26 X 0,254
-
12619300100 Shim 46 mm. 26 X 0,305Shim 46 mm. 26 X 0,305
-
12619300101 Shim 46 mm. 28 X 0,114Shim 46 mm. 28 X 0,114
-
12619300151 Shim 46 mm. 28 X 0,152Shim 46 mm. 28 X 0,152
-
12619300102 Shim 46 mm. 28 X 0,203Shim 46 mm. 28 X 0,203
-
12619300103 Shim 46 mm. 28 X 0,254Shim 46 mm. 28 X 0,254
-
12619300152 Shim 46 mm. 28 X 0,305Shim 46 mm. 28 X 0,305
-
12619300153 Shim 46 mm. 30 X 0,114Shim 46 mm. 30 X 0,114
-
12619300104 Shim 46 mm. 30 X 0,152Shim 46 mm. 30 X 0,152
-
12619300154 Shim 46 mm. 30 X 0,203Shim 46 mm. 30 X 0,203
-
12619300113 Shim 46 mm. 30 X 0,254Shim 46 mm. 30 X 0,254
-
12619300056 Shim 46 mm. 30 X 0,305Shim 46 mm. 30 X 0,305
-
12230082 Shim 46 mm. 32 X 0,114Shim 46 mm. 32 X 0,114
-
12619300137 Shim 46 mm. 32 X 0,152Shim 46 mm. 32 X 0,152
-
12619300138 Shim 46 mm. 32 X 0,203Shim 46 mm. 32 X 0,203
-
12619300059 Shim 46 mm. 32 X 0,254Shim 46 mm. 32 X 0,254
-
12619300022 Shim 46 mm. 32 X 0,305Shim 46 mm. 32 X 0,305
-
12230033 Shim 46 mm. 34 X 0,114Shim 46 mm. 34 X 0,114
-
12230034 Shim 46 mm. 34 X 0,152Shim 46 mm. 34 X 0,152
-
12230035 Shim 46 mm. 34 X 0,203Shim 46 mm. 34 X 0,203
-
12230036 Shim 46 mm. 34 X 0,254Shim 46 mm. 34 X 0,254
-
12619300070 Shim 46 mm. 34 X 0,305Shim 46 mm. 34 X 0,305
-
12230037 Shim 46 mm. 36 X 0,114Shim 46 mm. 36 X 0,114
-
12619300155 Shim 46 mm. 36 X 0,152Shim 46 mm. 36 X 0,152
-
12619300142 Shim 46 mm. 36 X 0,203Shim 46 mm. 36 X 0,203
-
12619300156 Shim 46 mm. 36 X 0,254Shim 46 mm. 36 X 0,254
-
12619300105 Shim 46 mm. 36 X 0,305Shim 46 mm. 36 X 0,305
-
12230040 Shim 46 mm. 38 X 0,152Shim 46 mm. 38 X 0,152
-
12230041 Shim 46 mm. 38 X 0,203Shim 46 mm. 38 X 0,203
-
12230042 Shim 46 mm. 38 X 0,254Shim 46 mm. 38 X 0,254
-
12619300106 Shim 46 mm. 38 X 0,305Shim 46 mm. 38 X 0,305
-
12619300157 Shim 46 mm. 40 X 0,152Shim 46 mm. 40 X 0,152
-
12619300112 Shim 46 mm. 40 X 0,203Shim 46 mm. 40 X 0,203
-
12619300136 Shim 46 mm. 40 X 0,254Shim 46 mm. 40 X 0,254
-
12619300107 Shim 46 mm. 40 X 0,305Shim 46 mm. 40 X 0,305
-
14619300159 Piston 1.2 mm (front arm)Piston 1.2 mm (front arm)
-
14619300160 Piston 1.7 mm (rear arm)Piston 1.7 mm (rear arm)
-
14230039 Piston 2.0 mmPiston 2.0 mm
-
14230043 Piston 0 mm.Piston 0 mm.
