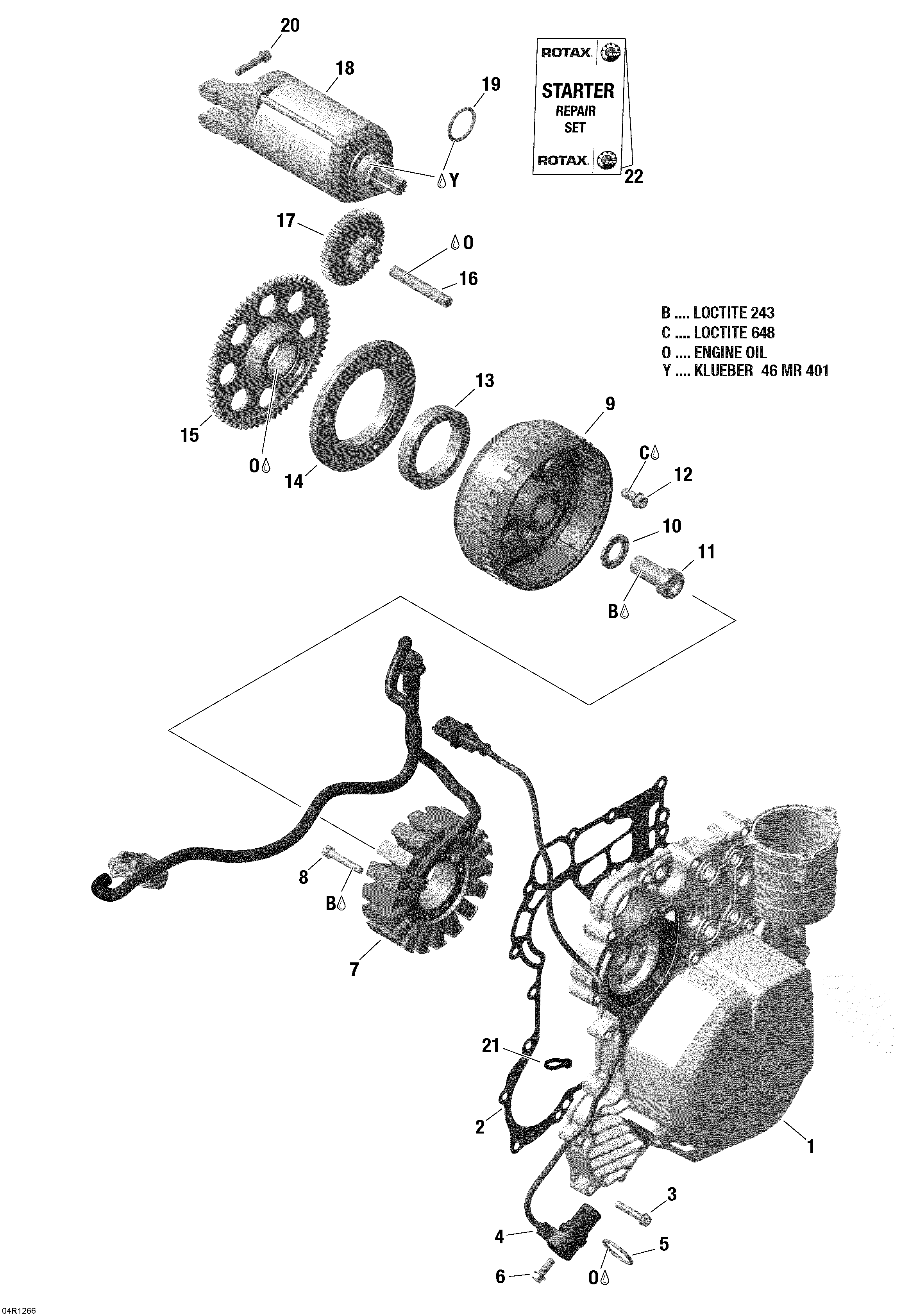

03- Magneto And Electric Starter для BRP Lynx Xtrim 600 ACE - 2012
-
№АртикулНазвание
-
1420911052 CoverCover
-
2420431640 Gasket. INCLUDED IN GASKET KITGasket. INCLUDED IN GASKET KIT
-
3420440647 Flanged Torx Screw M6 X 30. TIGHTENING TORQUE 11NM +/- 12%Flanged Torx Screw M6 X 30. TIGHTENING TORQUE 11NM +/- 12%
-
4-5420966570 Crankshaft Position Sensor Ass'yCrankshaft Position Sensor Ass'y
-
5420431580 O-Ring. INCLUDED IN GASKET KITO-Ring. INCLUDED IN GASKET KIT
-
6420440162 Flanged Torx Screw M6 X 16. TIGHTENING TORQUE 11NM +/- 12%Flanged Torx Screw M6 X 16. TIGHTENING TORQUE 11NM +/- 12%
-
7420296908 Stator Plate 420W.Stator Plate 420W.
-
8420241956 Allen Screw M6 X 40. TIGHTENING TORQUE 11NM +/- 12%Allen Screw M6 X 40. TIGHTENING TORQUE 11NM +/- 12%
-
9420685700 Magneto FlywheelMagneto Flywheel
-
10420627270 ShimShim
-
11420241549 Socket Head Screw M16 X 35. TIGHTENING TORQUE 150NM +/- 7%Socket Head Screw M16 X 35. TIGHTENING TORQUE 150NM +/- 7%
-
12420440854 Flanged Torx Screw M8 X 16. TIGHTENING TORQUE 30NM +/- 12%Flanged Torx Screw M8 X 16. TIGHTENING TORQUE 30NM +/- 12%
-
13420659113 Sprag ClutchSprag Clutch
-
14420659261 Sprag Clutch HousingSprag Clutch Housing
-
15420434237 Free Wheel Gear, 64 TeethFree Wheel Gear, 64 Teeth
-
16420229475 Needle PinNeedle Pin
-
17420634741 Double GearDouble Gear
-
18-19420892423 Starter Ass'yStarter Ass'y
-
19420250140 O-Ring. INCLUDED IN GASKET KITO-Ring. INCLUDED IN GASKET KIT
-
20420440647 Flanged Torx Screw M6 X 30. TIGHTENING TORQUE 11NM +/- 12%Flanged Torx Screw M6 X 30. TIGHTENING TORQUE 11NM +/- 12%
-
21420866714 Tie RapTie Rap
-
22420881140 Carbon Brush SetCarbon Brush Set
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
C413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
O293600112 Synthetic Oil 4T 12X1 L.Synthetic Oil 4T 12X1 L.
-
Y420297616 Klueber Paste, 46 MR 401, 60 gKlueber Paste, 46 MR 401, 60 g
