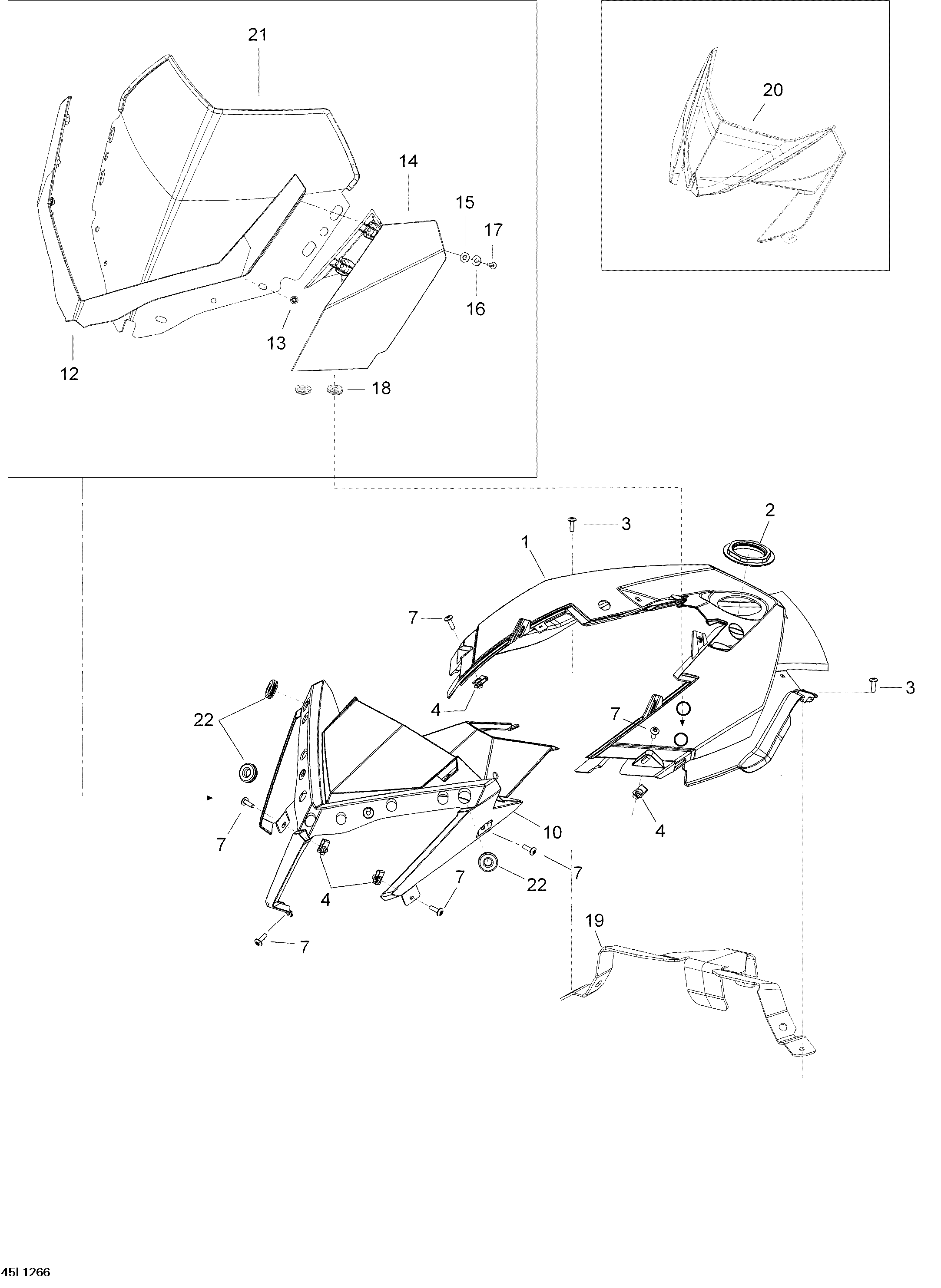

09- Windshield And Console для BRP Lynx Xtrim 600 ACE - 2012
-
№АртикулНазвание
-
1517304645 Console, whiteConsole, white
-
2517302575 Console NutConsole Nut
-
3293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
4250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
7250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
10517304575 Gauge SupportGauge Support
-
12860200091 Windshield Support Assy incl 12-13Windshield Support Assy incl 12-13
-
12517303607 Windshield SupportWindshield Support
-
13250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
14619560022 Wind deflector Kit RE-X incl. 14-18Wind deflector Kit RE-X incl. 14-18
-
14517303604 RH Air DeflectorRH Air Deflector
-
14517303605 LH Air DeflectorLH Air Deflector
-
15250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
16250200025 Washer M5Washer M5
-
17250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
18517303756 GrommetGrommet
-
19517304230 Support plate for consoleSupport plate for console
-
20517303979 Headlamp coverHeadlamp cover
-
21517303608 Medium WindshieldMedium Windshield
-
22517303756 GrommetGrommet
