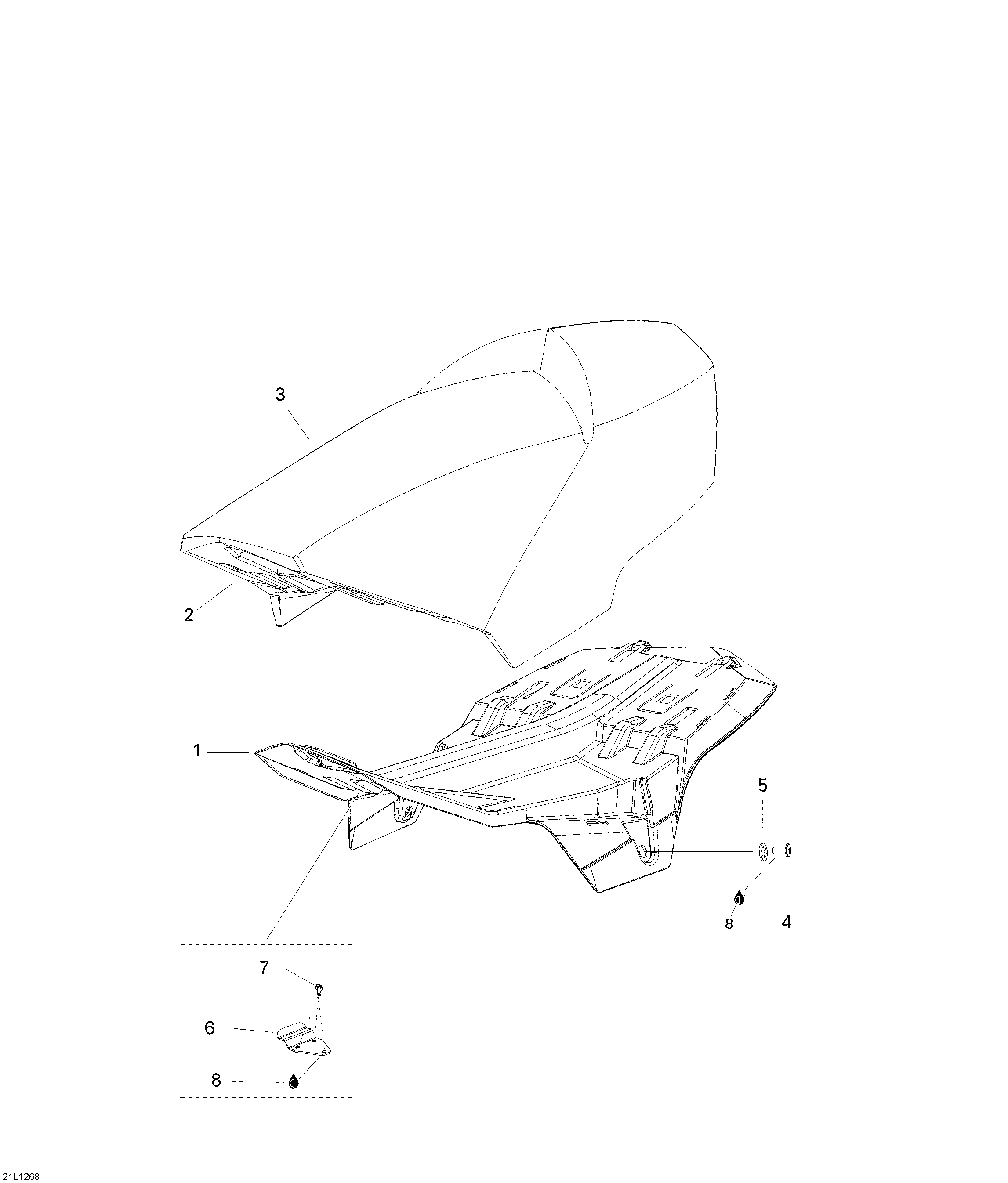

09- Seat для BRP Lynx Xtrim Boondocker 800R E-TEC (E) - 2012
-
№АртикулНазвание
-
1510004899 Seat baseSeat base
-
2510005097 FoamFoam
-
3510005516 CoverCover
-
4250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
5510005346 WasherWasher
-
6510005129 Seat front fastening plateSeat front fastening plate
-
7205461046 Screw socketScrew socket
-
8293800060 Loctite 243, 10 mlLoctite 243, 10 ml
