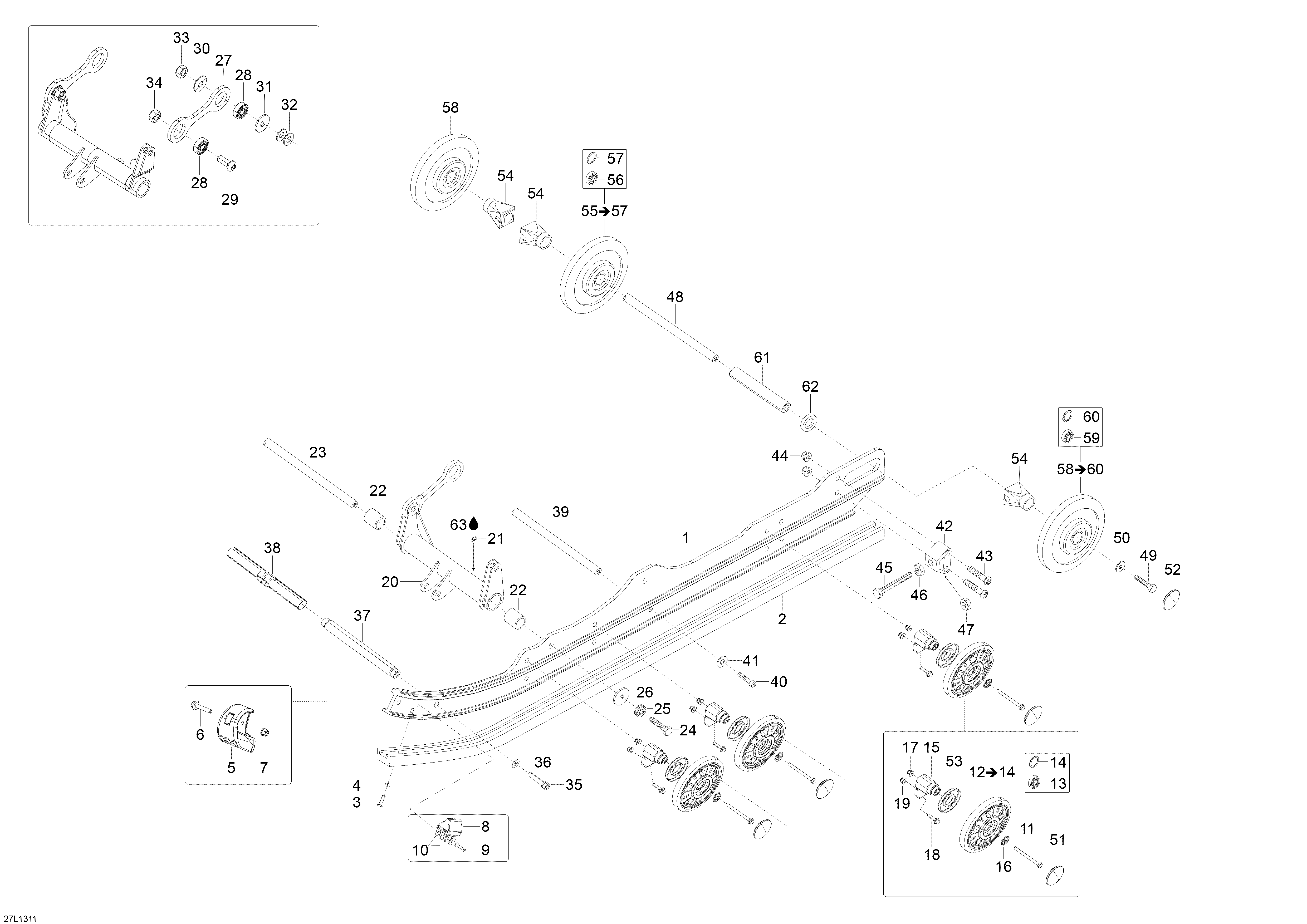

08- Rear Suspension для BRP Lynx Rave 600 ACE - 2013
-
№АртикулНазвание
-
1503191978 RunnerRunner
-
2503192189 Slider ShoeSlider Shoe
-
3208562531 Screw M6 x 25Screw M6 x 25
-
4232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503192299 ProtectorProtector
-
6207652544 Hex. Flanged Screw M5 x 25Hex. Flanged Screw M5 x 25
-
7233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
8503192106 Rubber StopperRubber Stopper
-
9293150142 Pop Rivet 3/16Pop Rivet 3/16
-
10503191273 WasherWasher
-
11250000475 Hex. Screw M6 x 70Hex. Screw M6 x 70
-
12503191942 Wheel 141mm. Includes 12 To 14Wheel 141mm. Includes 12 To 14
-
13503190396 Ball BearingBall Bearing
-
15503193082 SupportSupport
-
16503191820 Cup WasherCup Washer
-
17233261466 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
18250000522 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
19233261466 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
20503192518 Swing WeldSwing Weld
-
21408200700 Grease FittingGrease Fitting
-
2231024 CushionCushion
-
23605355800 ShaftShaft
-
24205505547 Screw M10 x 55Screw M10 x 55
-
25512056700 Lock WasherLock Washer
-
2620068 Lock WasherLock Washer
-
27605254159 Connecting RodConnecting Rod
-
28605631003 Ball BearingBall Bearing
-
29205402546 Socket Head Screw M10 x 25Socket Head Screw M10 x 25
-
3025004 Spring CupSpring Cup
-
31234002600 Washer M10Washer M10
-
32234001410 Washer M10Washer M10
-
33233401414 Lock Spring M10Lock Spring M10
-
34232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
35205505044 Socket Head Screw M10 x 50Socket Head Screw M10 x 50
-
36234001410 Washer M10Washer M10
-
37605353958 ShaftShaft
-
38605355096 LimiterLimiter
-
395343471 ShaftShaft
-
40205505044 Socket Head Screw M10 x 50Socket Head Screw M10 x 50
-
41234001410 Flat Washer M10Flat Washer M10
-
425341633 Tensioner HousingTensioner Housing
-
43205484546 Socket Head Screw M8 x 45Socket Head Screw M8 x 45
-
44233281414 Nut M8Nut M8
-
45230100044 Hex. Screw M10 x 100Hex. Screw M10 x 100
-
46232006414 Nut M10Nut M10
-
47232500416 Nut M10Nut M10
-
48503190429 AxleAxle
-
49207303544 Hex. Screw M10 x 35Hex. Screw M10 x 35
-
50503190439 WasherWasher
-
51503192771 Cap WheelCap Wheel
-
52503192771 Cap WheelCap Wheel
-
53503190434 Labyrinth SealLabyrinth Seal
-
54503190428 SpacerSpacer
-
55503192140 Wheel 165mm. Includes 55 To 57Wheel 165mm. Includes 55 To 57
-
56503190396 Ball BearingBall Bearing
-
57415129371 CirclipCirclip
-
58503192676 Wheel 165mm. Includes 58 To 60Wheel 165mm. Includes 58 To 60
-
59503190396 Ball BearingBall Bearing
-
60415129371 CirclipCirclip
-
61503190430 SpacerSpacer
-
62503190432 WasherWasher
