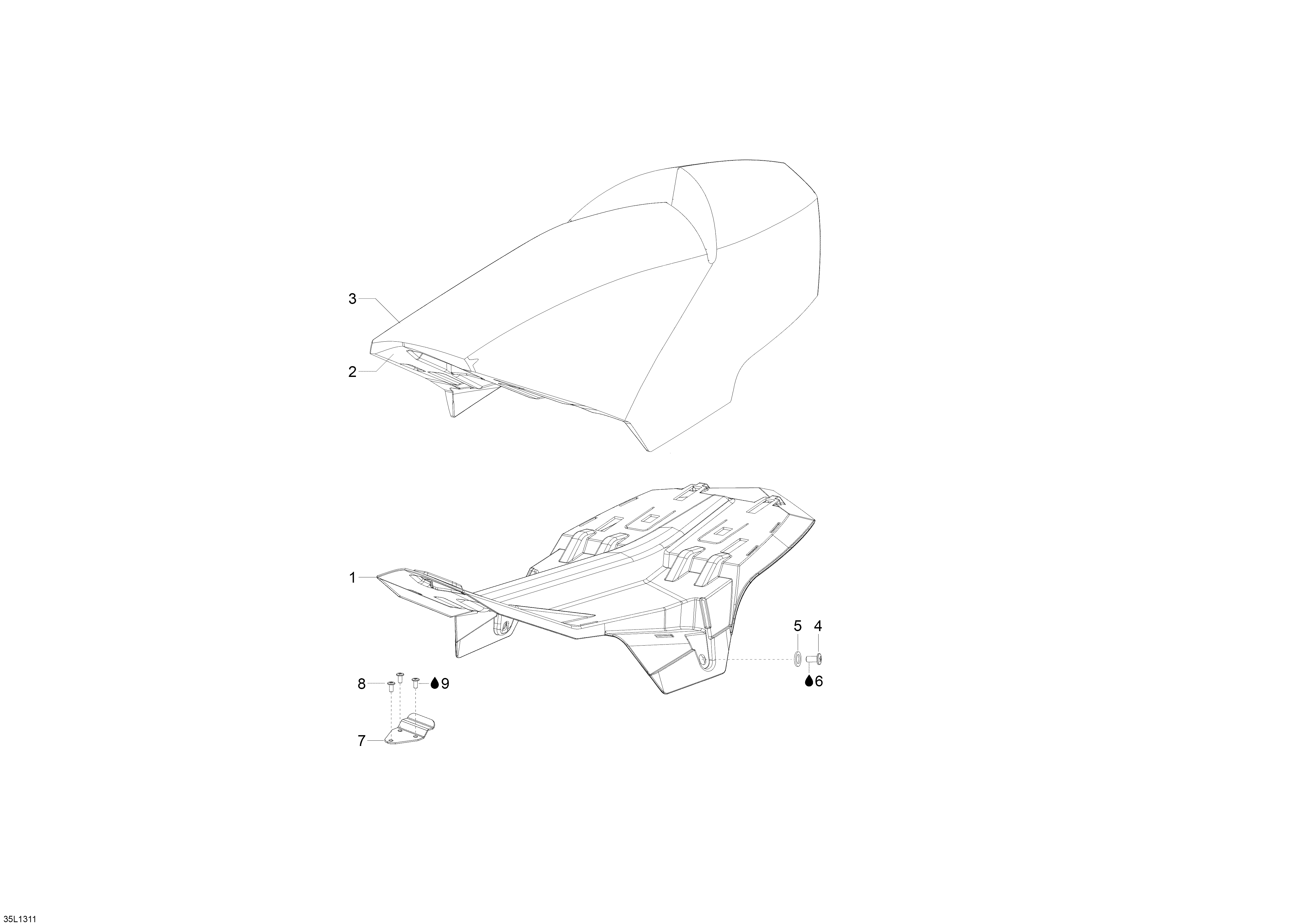

09- Seat для BRP Lynx Rave 600 ACE - 2013
![](/wa-data/public/shop/sheme/bombardier/lynx/f39f14b7-247a-4147-8b0b-911bbf17bed3.png)
-
№АртикулНазвание
-
1510004899 Seat BaseSeat Base
-
2510005097 Seat FoamSeat Foam
-
3510005518 Seat CoverSeat Cover
-
4250000128 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
5510005346 WasherWasher
-
6293800060 Loctite 243, 10mlLoctite 243, 10ml
-
7510005129 Seat Front Fastening PlateSeat Front Fastening Plate
-
8205461046 Socket Screw M6 x 10Socket Screw M6 x 10
-
9293800060 Loctite 243, 10mlLoctite 243, 10ml
