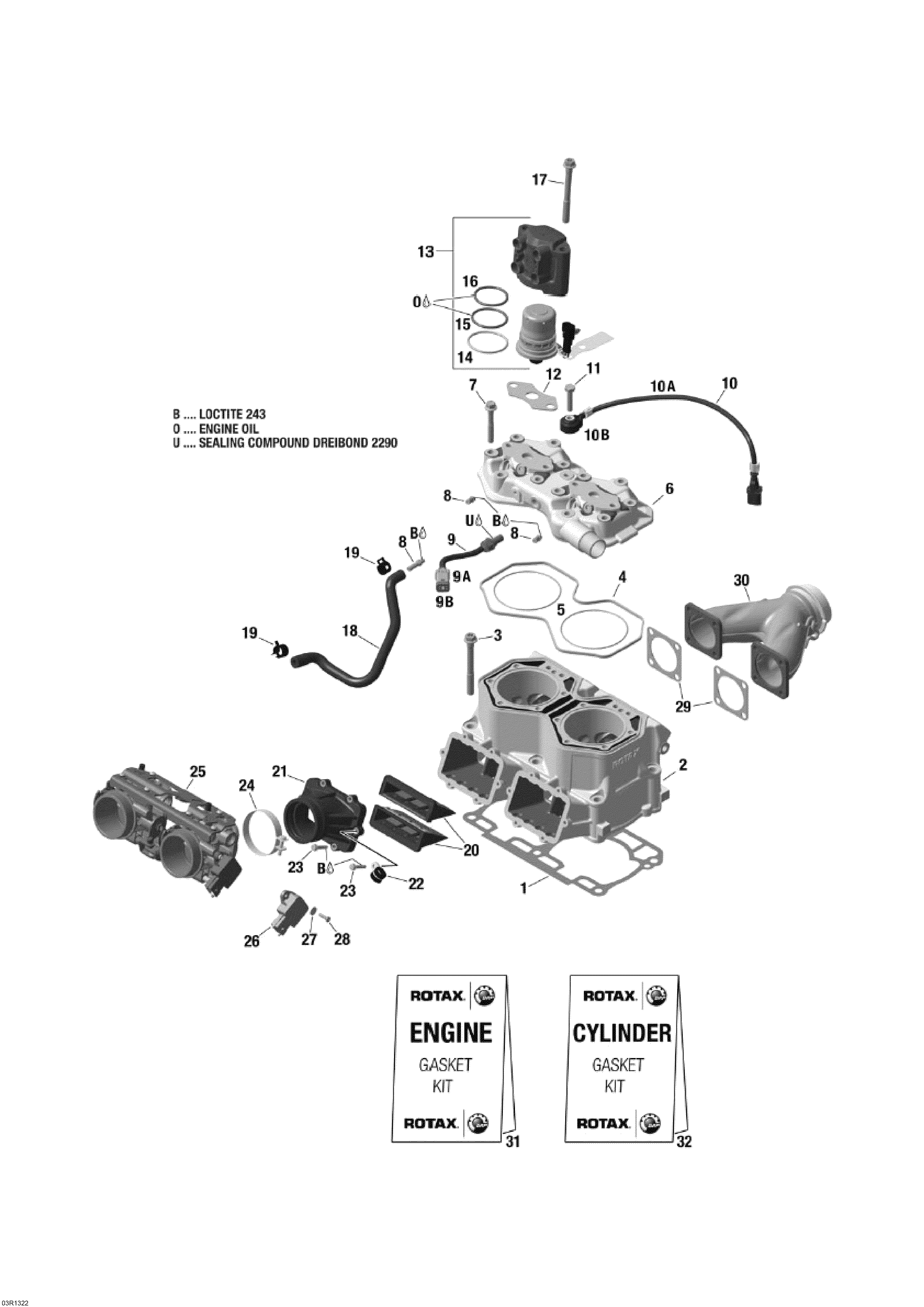

01- Cylinder And Injection System для BRP Lynx Rave GLS 800R E-TEC - 2013

№

Артикул

Название
1

420430080 Double Gasket 0.5 mm. Included In Gasket Kit

Double Gasket 0.5 mm. Included In Gasket Kit

8 330 ₽
1

420430081 Double Gasket 0.6 mm. Included In Gasket Kit

Double Gasket 0.6 mm. Included In Gasket Kit

2 430 ₽
1

420430082 Double Gasket 0.7 mm. Included In Gasket Kit

Double Gasket 0.7 mm. Included In Gasket Kit

11 450 ₽
1

420430083 Double Gasket 0.8 mm. Included In Gasket Kit

Double Gasket 0.8 mm. Included In Gasket Kit

11 450 ₽
1

420430084 Double Gasket 0.9 mm. Included In Gasket Kit

Double Gasket 0.9 mm. Included In Gasket Kit

6 480 ₽
2

420413041 Cylinder

Cylinder

167 040 ₽
3

420441187 Flanged Torx Screw M10 x 90. Tightening Torque 48-52 Nm

Flanged Torx Screw M10 x 90. Tightening Torque 48-52 Nm

2 760 ₽
4

420430040 O-Ring. Included In Gasket Kit

O-Ring. Included In Gasket Kit

5 570 ₽
5

420931410 O-Ring. Included In Gasket Kit

O-Ring. Included In Gasket Kit

11 030 ₽
6

420623303 Head Cylinder Cover

Head Cylinder Cover

0 ₽
7

420941627 Hex. Screw M8 x 56.5. Tightening Torque 28-30 Nm

Hex. Screw M8 x 56.5. Tightening Torque 28-30 Nm

2 770 ₽
8

420924724 Hose Nipple. Tightening Torque 4-5 Nm

Hose Nipple. Tightening Torque 4-5 Nm

2 400 ₽
9

515177471 Temperature Sensor. Includes 9 To 9B

Temperature Sensor. Includes 9 To 9B

7 110 ₽
9a

515175670 Female Terminal Housing, 2 Circuits

Female Terminal Housing, 2 Circuits

790 ₽
9b

278000632 Female Terminal

Female Terminal

200 ₽
10

270000484 Noise Sensor

Noise Sensor

20 670 ₽
10a

420460010 Tube

Tube

710 ₽
10b

420960890 Clip

Clip

170 ₽
11

207083544 Hex. Screw M8 x 35. Tightening Torque 22-25 Nm

Hex. Screw M8 x 35. Tightening Torque 22-25 Nm

390 ₽
12

420430930 Gasket. Included In Gasket Kit

Gasket. Included In Gasket Kit

2 770 ₽
13

512060650 Fuel Injector. Includes 13 To 16

Fuel Injector. Includes 13 To 16

0 ₽
14

415129497 Crush Ring

Crush Ring

6 020 ₽
15

415129498 O-Ring

O-Ring

5 710 ₽
16

415129499 O-Ring

O-Ring

5 150 ₽
17

420441187 Flanged Torx Screw M10 x 90

Flanged Torx Screw M10 x 90

2 760 ₽
18

420460867 Molded Hose

Molded Hose

6 020 ₽
19

420853511 Clamp

Clamp

2 440 ₽
20

420924794 Reed Valve Ass'y

Reed Valve Ass'y

0 ₽
21

420867333 Intake Socket

Intake Socket

42 910 ₽
22

420851250 Clamp

Clamp

4 640 ₽
23

420841550 Hex. Taptite Screw M5 x 25. Tightening Torque 5-6 Nm

Hex. Taptite Screw M5 x 25. Tightening Torque 5-6 Nm

840 ₽
24

420851815 Clamp

Clamp

800 ₽
25

420889199 Throttle Body

Throttle Body

107 070 ₽
26

420866120 Position Sensor

Position Sensor

26 850 ₽
27

234041600 Flat Washer 4 mm, Stainless

Flat Washer 4 mm, Stainless

390 ₽
28

208641660 Phillips Screw M4 x 16

Phillips Screw M4 x 16

90 ₽
29

420430482 Gasket. Included In Gasket Kit

Gasket. Included In Gasket Kit

7 490 ₽
30

420673373 Exhaust Manifold

Exhaust Manifold

22 330 ₽
31

420893500 Gasket Set, Engine

Gasket Set, Engine

56 320 ₽
32

420893505 Gasket Set, Cylinder

Gasket Set, Cylinder

65 210 ₽
B

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml

2 760 ₽
U

420297906 Sealing Compound, 30 ml

Sealing Compound, 30 ml

3 950 ₽
