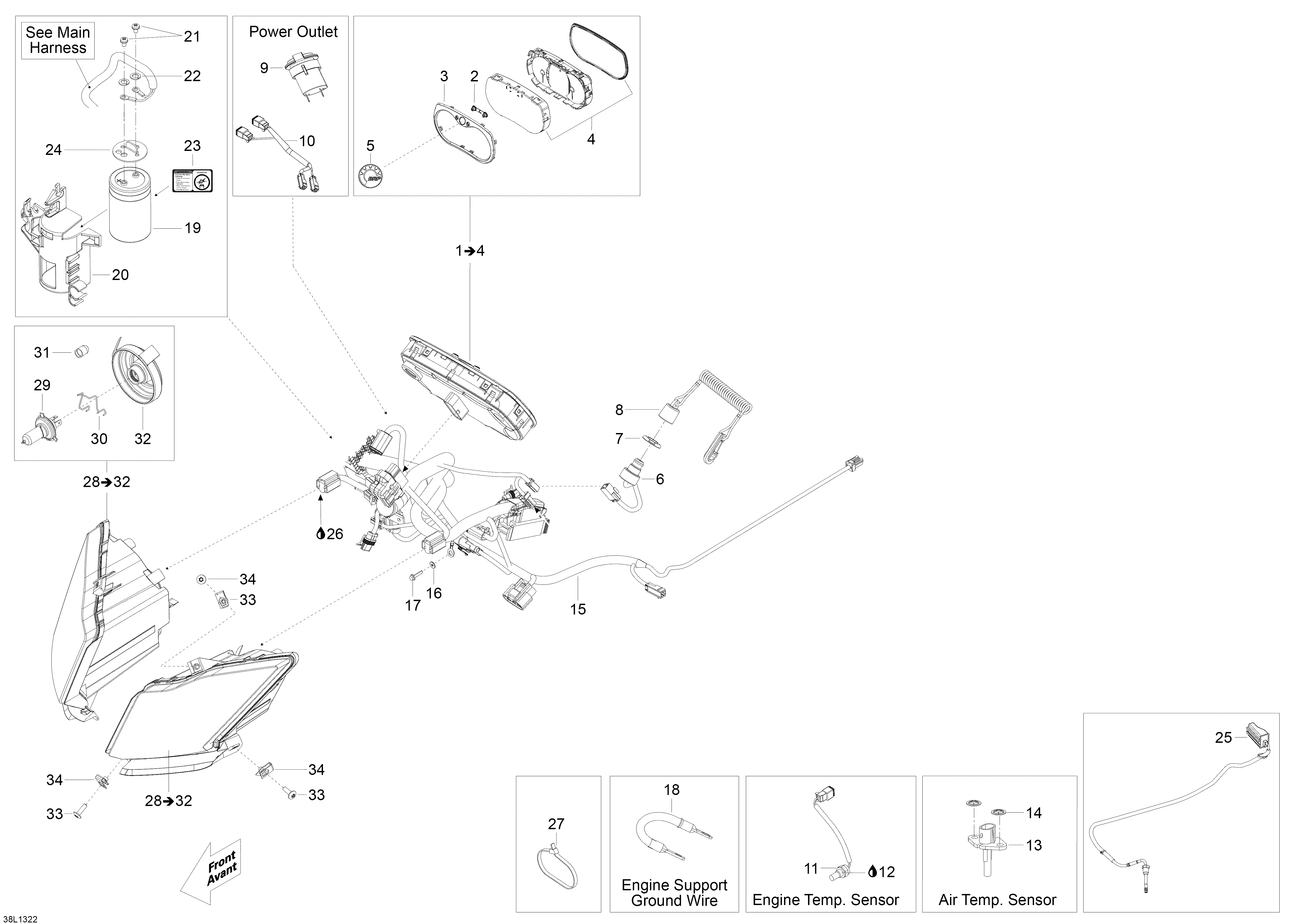

10- Electrical System для BRP Lynx Rave GLS 800R E-TEC - 2013
-
№АртикулНазвание
-
1515177470 Speedometer. Includes 1 To 4Speedometer. Includes 1 To 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129348 Gauge RingGauge Ring
-
4415129349 LensLens
-
5219902677 BRP LogoBRP Logo
-
6515177249 Dess SwitchDess Switch
-
7278000508 Safety Switch NutSafety Switch Nut
-
8515177057 DESS CapDESS Cap
-
9710001248 Power OutletPower Outlet
-
10515177188 HarnessHarness
-
11515177471 Temperature SensorTemperature Sensor
-
13515176366 Air Temperature SensorAir Temperature Sensor
-
14389804300 Push NutPush Nut
-
15515177098 Main HarnessMain Harness
-
16234141601 Lock Washer M4Lock Washer M4
-
17250000127 Torx Truss Screw M4 x 8Torx Truss Screw M4 x 8
-
18515177289 Ground WireGround Wire
-
19515176349 CapacitorCapacitor
-
20515176607 Capacitor SupportCapacitor Support
-
21250000462 Socket Head Screw M10 x 32Socket Head Screw M10 x 32
-
22250200026 Lock washerLock washer
-
23516005515 Capacitor DecalCapacitor Decal
-
24515177193 CapCap
-
25515177473 ModuleModule
-
26619600021 Loctite 8104 (Dielectric Grease), 75mlLoctite 8104 (Dielectric Grease), 75ml
-
27414115200 Tie Rap 180mmTie Rap 180mm
-
27293750008 Tie Rap 350mmTie Rap 350mm
-
27293750001 Tie Rap 94mmTie Rap 94mm
-
28517304194 Headlamp Ass'y RH. Includes 28 To 32Headlamp Ass'y RH. Includes 28 To 32
-
28517304195 Headlamp Ass'y LH. Includes 28 To 32Headlamp Ass'y LH. Includes 28 To 32
-
29515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
31515176141 CapCap
-
32515176499 CoverCover
-
33250000128 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
34250100113 Panel Nut M6Panel Nut M6
