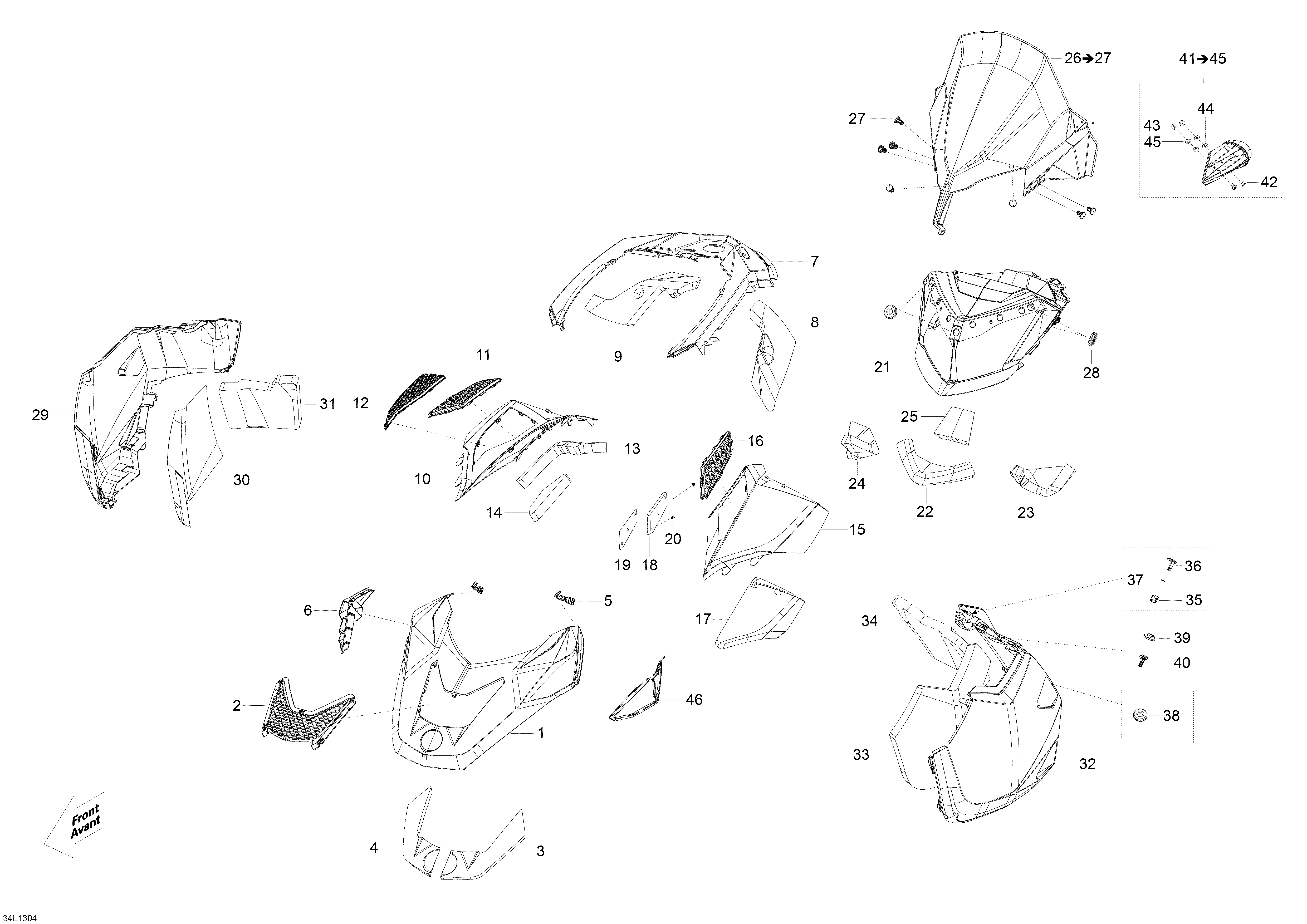

09- Hood для BRP Lynx 69 YETI Army 600 E-TEC - 2013
-
№АртикулНазвание
-
1517304814 HoodHood
-
2517304843 Hood GrillHood Grill
-
3517304330 InsulatorInsulator
-
4517304214 InsulatorInsulator
-
5517304289 LatchLatch
-
6517304155 Scoop GrillScoop Grill
-
7517304820 ConsoleConsole
-
8517304317 InsulatorInsulator
-
9517304318 InsulatorInsulator
-
10517304826 Side Access Panel RHSide Access Panel RH
-
11517304015 Access Panel Grill RHAccess Panel Grill RH
-
12517304016 Access Panel Grill Lower RHAccess Panel Grill Lower RH
-
13517304311 InsulatorInsulator
-
14517304312 InsulatorInsulator
-
15517304837 Side Access Panel LHSide Access Panel LH
-
16517303893 Access Panel Grill LHAccess Panel Grill LH
-
17517304313 InsulatorInsulator
-
18517305311 InsulatorInsulator
-
19502007312 Grill PlateGrill Plate
-
20414644300 DartDart
-
21517304272 Indicator SupportIndicator Support
-
22517304314 InsulatorInsulator
-
23517304315 InsulatorInsulator
-
24517304316 InsulatorInsulator
-
25517304319 InsulatorInsulator
-
26860200555 Windshield Ass'y. Includes 26 To 27Windshield Ass'y. Includes 26 To 27
-
27517304744 KnobKnob
-
28517303756 GrommetGrommet
-
29517304328 Side Panel RHSide Panel RH
-
30517304709 Foam RHFoam RH
-
31517304310 Foam Rear RHFoam Rear RH
-
32517304329 Side Panel LHSide Panel LH
-
33517304707 Foam LHFoam LH
-
34517304309 Foam Rear LHFoam Rear LH
-
35517304297 Quarter-Turn Handle FastenerQuarter-Turn Handle Fastener
-
36517304296 Quarter-Turn HandleQuarter-Turn Handle
-
37517304538 Locking PlateLocking Plate
-
38517303756 GrommetGrommet
-
39860200239 End PieceEnd Piece
-
40517304573 Latch-PanelLatch-Panel
-
41517304628 Mirror Ass'y RH/LH. Includes 41 To 45Mirror Ass'y RH/LH. Includes 41 To 45
-
42250000129 Torx Truss Screw M6 x 16Torx Truss Screw M6 x 16
-
43232361493 Nut Hex. Domed M6Nut Hex. Domed M6
-
44250200024 Rubber Washer M5Rubber Washer M5
-
4520117 WasherWasher
-
46508000609 Air FilterAir Filter
