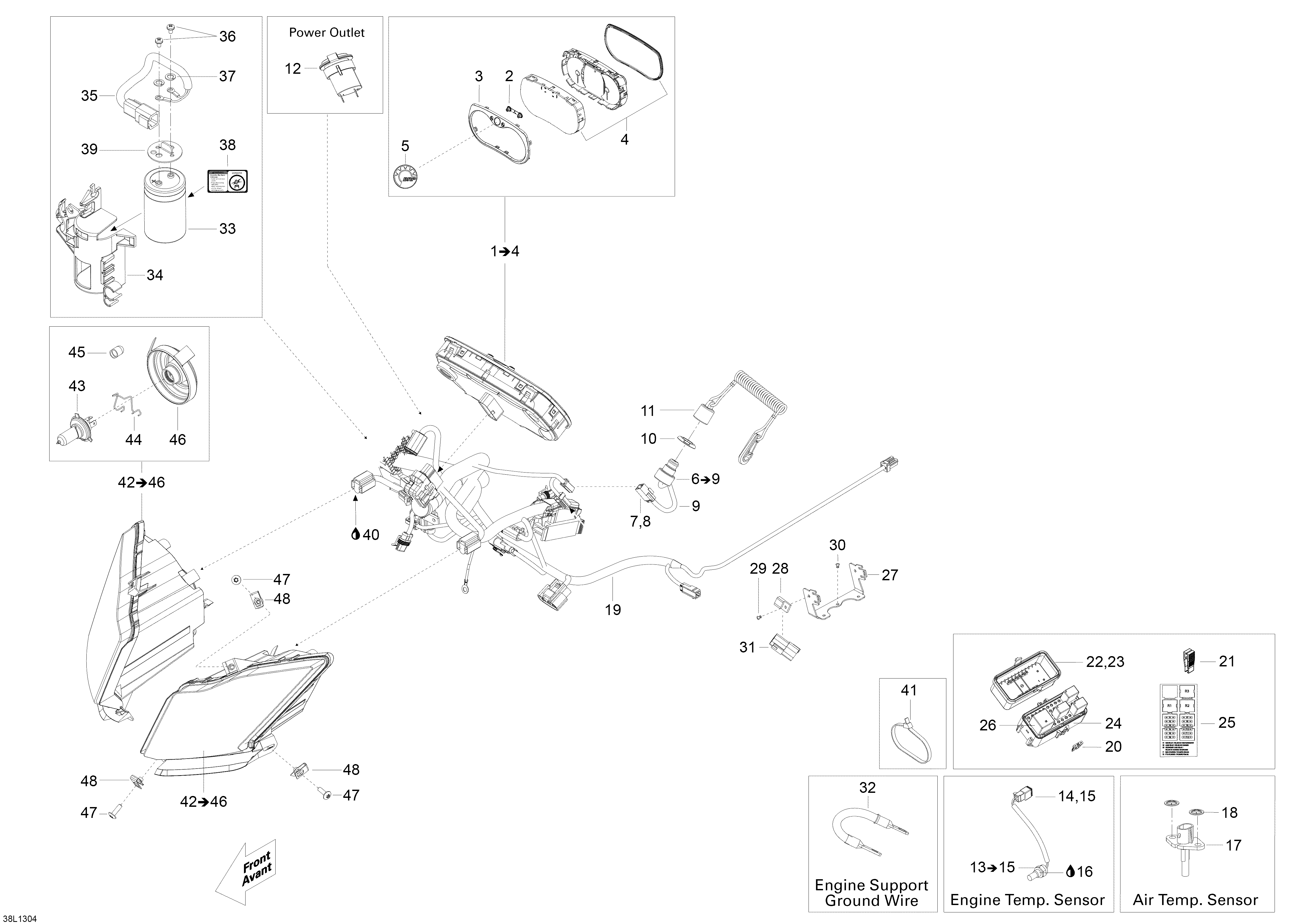

10- Electrical System для BRP Lynx 69 YETI Army 600 E-TEC - 2013
-
№АртикулНазвание
-
1515177492 Speedometer Ass'y. Includes 1 To 4Speedometer Ass'y. Includes 1 To 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129348 Gauge RingGauge Ring
-
4415129349 Lens And SealLens And Seal
-
5219902677 BRP LogoBRP Logo
-
6515177249 Dess Switch. Includes 6 To 9Dess Switch. Includes 6 To 9
-
7515175232 Male TerminalMale Terminal
-
8515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
9409902000 Tubing 12mmTubing 12mm
-
10278000508 Safety Switch NutSafety Switch Nut
-
11515177057 DESS CapDESS Cap
-
12710001248 Power Outlet-DCPower Outlet-DC
-
13515176398 Temperature Sensor. Includes 13 To 15Temperature Sensor. Includes 13 To 15
-
14515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
15278000632 Female TerminalFemale Terminal
-
17515176366 Air Temperature SensorAir Temperature Sensor
-
18389804300 Push NutPush Nut
-
19515177077 Main HarnessMain Harness
-
20710000742 Fuse 5AFuse 5A
-
20710000743 Fuse 7,5AFuse 7,5A
-
20710000744 Fuse 10AFuse 10A
-
20710000745 Fuse 15AFuse 15A
-
20710000746 Fuse 20AFuse 20A
-
20710000747 Fuse 30AFuse 30A
-
21710000781 Fuse Puller ToolFuse Puller Tool
-
22710001026 Fuse Box CoverFuse Box Cover
-
23278002172 FoamFoam
-
24710000660 Fuse Box Base Ass'yFuse Box Base Ass'y
-
25516005892 Decal, FuseboxDecal, Fusebox
-
26515176775 Relay 50ARelay 50A
-
26515176774 Relay 30ARelay 30A
-
27515177073 Fusebox SupportFusebox Support
-
28270000141 ClipClip
-
29293150037 RivetRivet
-
30390402200 Pop Rivet 3/16Pop Rivet 3/16
-
31515176234 Female HousingFemale Housing
-
32515176861 Ground WireGround Wire
-
33515176349 CapacitorCapacitor
-
34515176607 SupportSupport
-
35515176605 HarnessHarness
-
36250000462 Screw 10-32 x 5/16''Screw 10-32 x 5/16''
-
37250200026 Lock WasherLock Washer
-
38516005515 Capacitor DecalCapacitor Decal
-
39515177193 CapCap
-
40619600021 Loctite 8104 (Dielectric Grease), 75mlLoctite 8104 (Dielectric Grease), 75ml
-
41414115200 Tie-Rap 180mmTie-Rap 180mm
-
41293750008 Tie-Rap 350mmTie-Rap 350mm
-
41293750001 Tie-Rap 94mmTie-Rap 94mm
-
42517304194 Headlamp RH. Includes 42 To 46Headlamp RH. Includes 42 To 46
-
42517304195 Headlamp LH. Includes 42 To 46Headlamp LH. Includes 42 To 46
-
43515176274 Halogen Bulb, 60/55W, 12VHalogen Bulb, 60/55W, 12V
-
45515176498 CapCap
-
46515176499 CoverCover
-
47250000128 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
48250100113 Pannel Nut M6 x 1.0Pannel Nut M6 x 1.0
