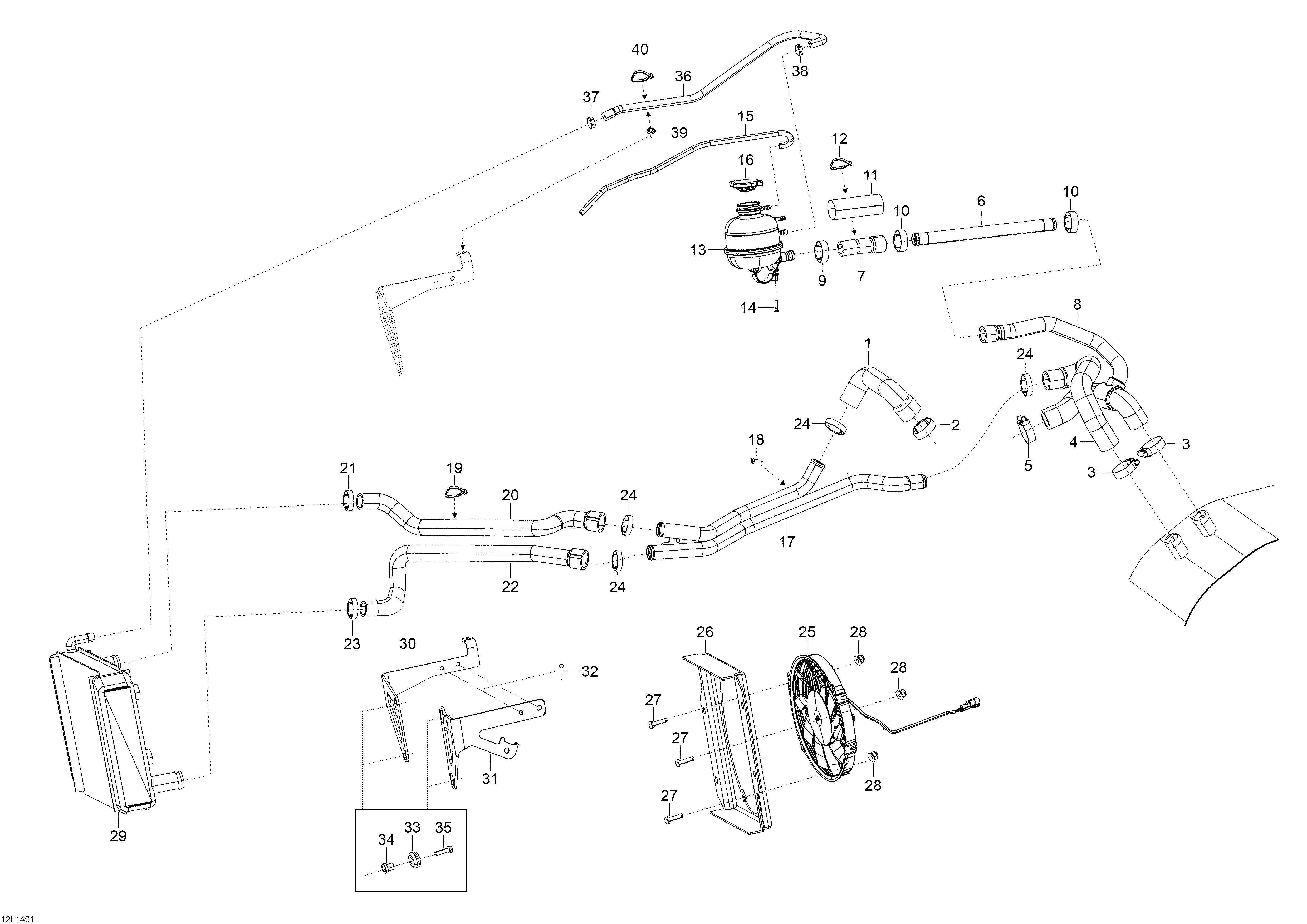

01- Cooling System для BRP Lynx Adventure LX 600 ACE - 2014
-
№АртикулНазвание
-
1509000564 Hose, Engine OutletHose, Engine Outlet
-
2509000443 Gear ClampGear Clamp
-
3509000443 Gear ClampGear Clamp
-
4509000762 Hose, Front Air Rad. -> Tunnel Rad.Hose, Front Air Rad. -> Tunnel Rad.
-
5509000443 Gear ClampGear Clamp
-
6509000644 PipePipe
-
7509000698 Hose, RadiatorHose, Radiator
-
8509000806 Hose, Tunnel Rad. -> Engine FillingHose, Tunnel Rad. -> Engine Filling
-
9509000442 Crimp ClampCrimp Clamp
-
10293650099 Crimp ClampCrimp Clamp
-
11707001349 Protector TubeProtector Tube
-
12414115200 Tie Rap 180mmTie Rap 180mm
-
13509000368 Coolant TankCoolant Tank
-
14241151640 Hex. Flange Screw K50 x 16Hex. Flange Screw K50 x 16
-
15276000048 HoseHose
-
16509000180 Pressure CapPressure Cap
-
17509000800 Water PipeWater Pipe
-
18207561634 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
19414115200 Tie Rap 180mmTie Rap 180mm
-
20509000636 Hose, RadiatorHose, Radiator
-
21293650165 Crimp ClampCrimp Clamp
-
22509000637 Hose, RadiatorHose, Radiator
-
23293650165 Crimp ClampCrimp Clamp
-
24509000735 Crimp ClampCrimp Clamp
-
25709200230 FanFan
-
26509000714 Fan SupportFan Support
-
27207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
28233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
29509000756 RadiatorRadiator
-
30509000754 SupportSupport
-
31509000755 SupportSupport
-
32390909100 RivetRivet
-
33293720053 GrommetGrommet
-
34293900100 BushingBushing
-
35207562034 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
36509000750 Breather HoseBreather Hose
-
37293650046 Crimp ClampCrimp Clamp
-
38293650025 Crimp ClampCrimp Clamp
-
39293730040 Dart MountDart Mount
-
40414115200 Tie Rap 180mmTie Rap 180mm
