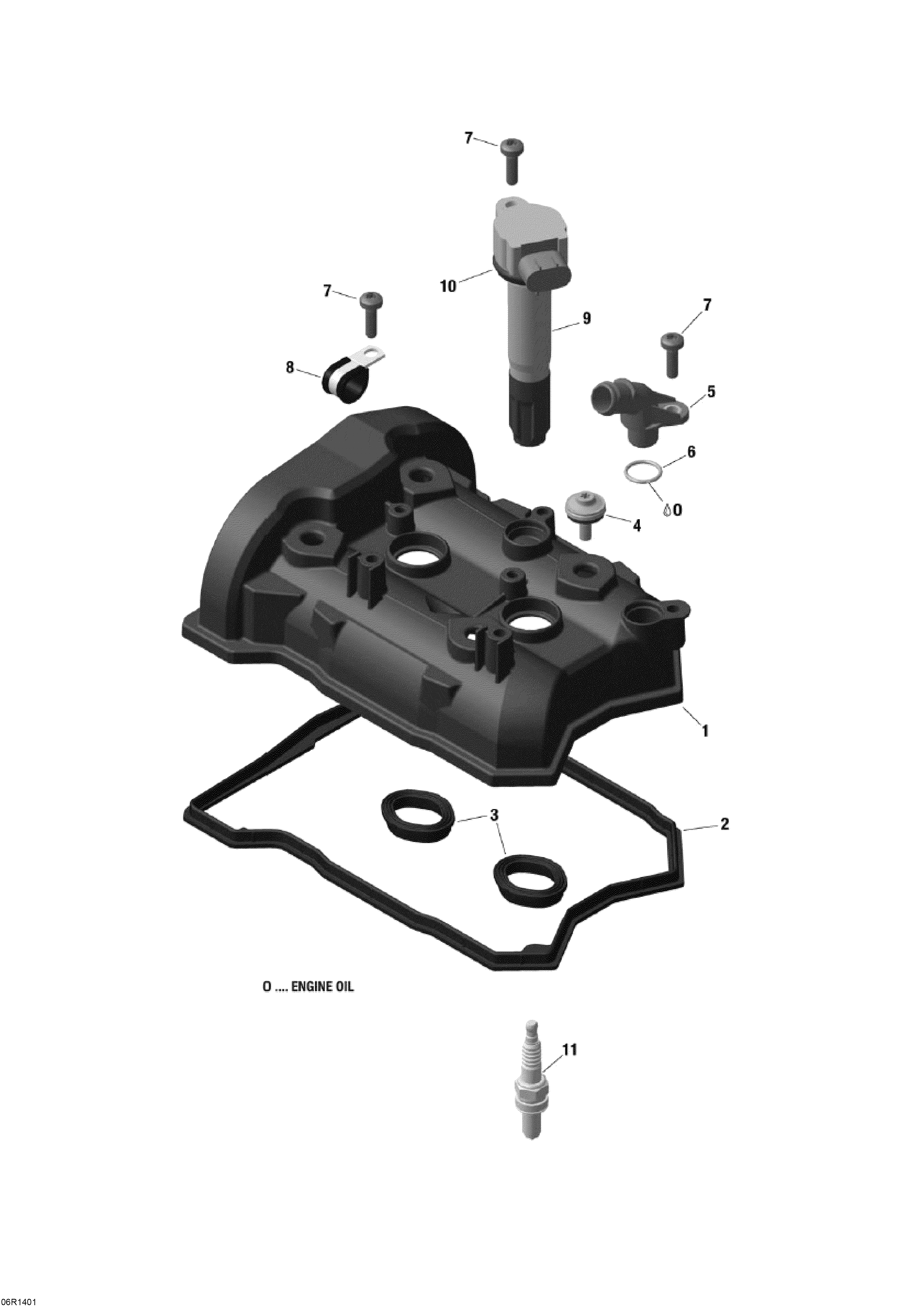

01- Valve Cover для BRP Lynx Adventure LX 600 ACE - 2014
-
№АртикулНазвание
-
1420911040 Valve CoverValve Cover
-
2420431621 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
3420431750 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
4420440495 Torx Distance Screw Ass'y M6. Tightening Torque 9 Nm +/- 12%Torx Distance Screw Ass'y M6. Tightening Torque 9 Nm +/- 12%
-
5420611240 Blow By ConnectorBlow By Connector
-
6420631240 O-Ring. Included In Gasket KitO-Ring. Included In Gasket Kit
-
7420441386 Torx TR Screw M6 x 20. Tightening Torque 9 Nm +/- 12%Torx TR Screw M6 x 20. Tightening Torque 9 Nm +/- 12%
-
8420851492 Cable ClampCable Clamp
-
9420666141 Stick CoilStick Coil
-
10420201430 Protection CapProtection Cap
-
11415129670 Spark Plug (MR7BI-8). Tightening Torque 13 Nm +/- 12%Spark Plug (MR7BI-8). Tightening Torque 13 Nm +/- 12%
