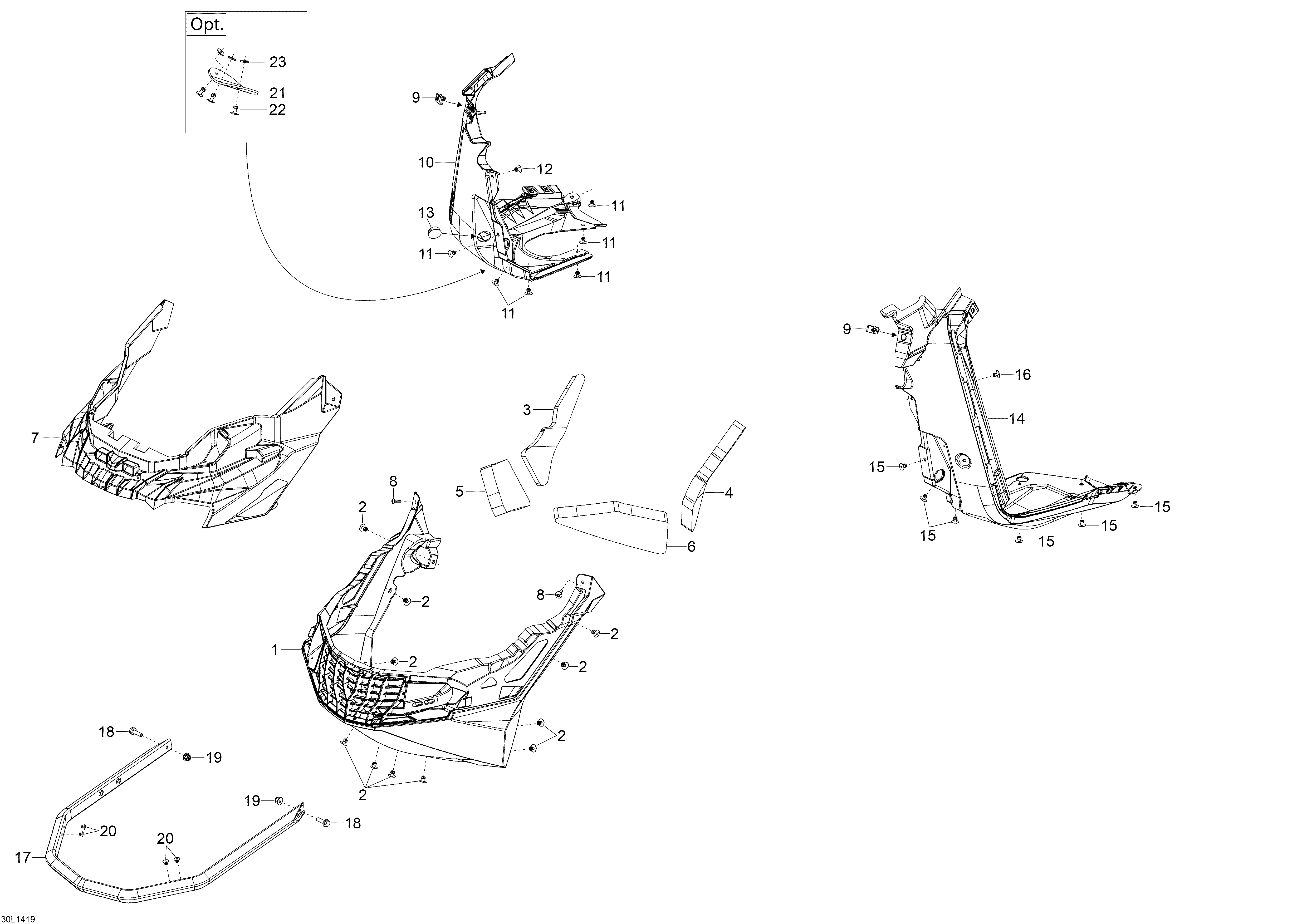

09- Bottom Pan для BRP Lynx BoonDocker 600 E-TEC - 2014
-
№АртикулНазвание
-
1502007172 Bottom PanBottom Pan
-
2293150104 Pop Rivet 3/16Pop Rivet 3/16
-
3502007243 Foam Upper RHFoam Upper RH
-
4502007244 Foam Upper LHFoam Upper LH
-
5502007245 Foam Lower RHFoam Lower RH
-
6502007246 Foam Lower LHFoam Lower LH
-
7502007284 Front CapFront Cap
-
8250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
9250000079 Panel Nut M5Panel Nut M5
-
10502007259 Bottom Pan RHBottom Pan RH
-
11293150104 Pop Rivet 3/16Pop Rivet 3/16
-
12293150103 Pop Rivet 3/16Pop Rivet 3/16
-
13414916600 PlugPlug
-
14502007260 Bottom Pan LHBottom Pan LH
-
15293150104 Pop Rivet 3/16Pop Rivet 3/16
-
16293150103 Pop Rivet 3/16Pop Rivet 3/16
-
17502007281 BumperBumper
-
18207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
19233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
20293150104 Pop Rivet 3/16Pop Rivet 3/16
-
21502006935 Snow Deflector (Opt.)Snow Deflector (Opt.)
-
22293150104 Pop Rivet 3/16Pop Rivet 3/16
-
23517124300 WasherWasher
