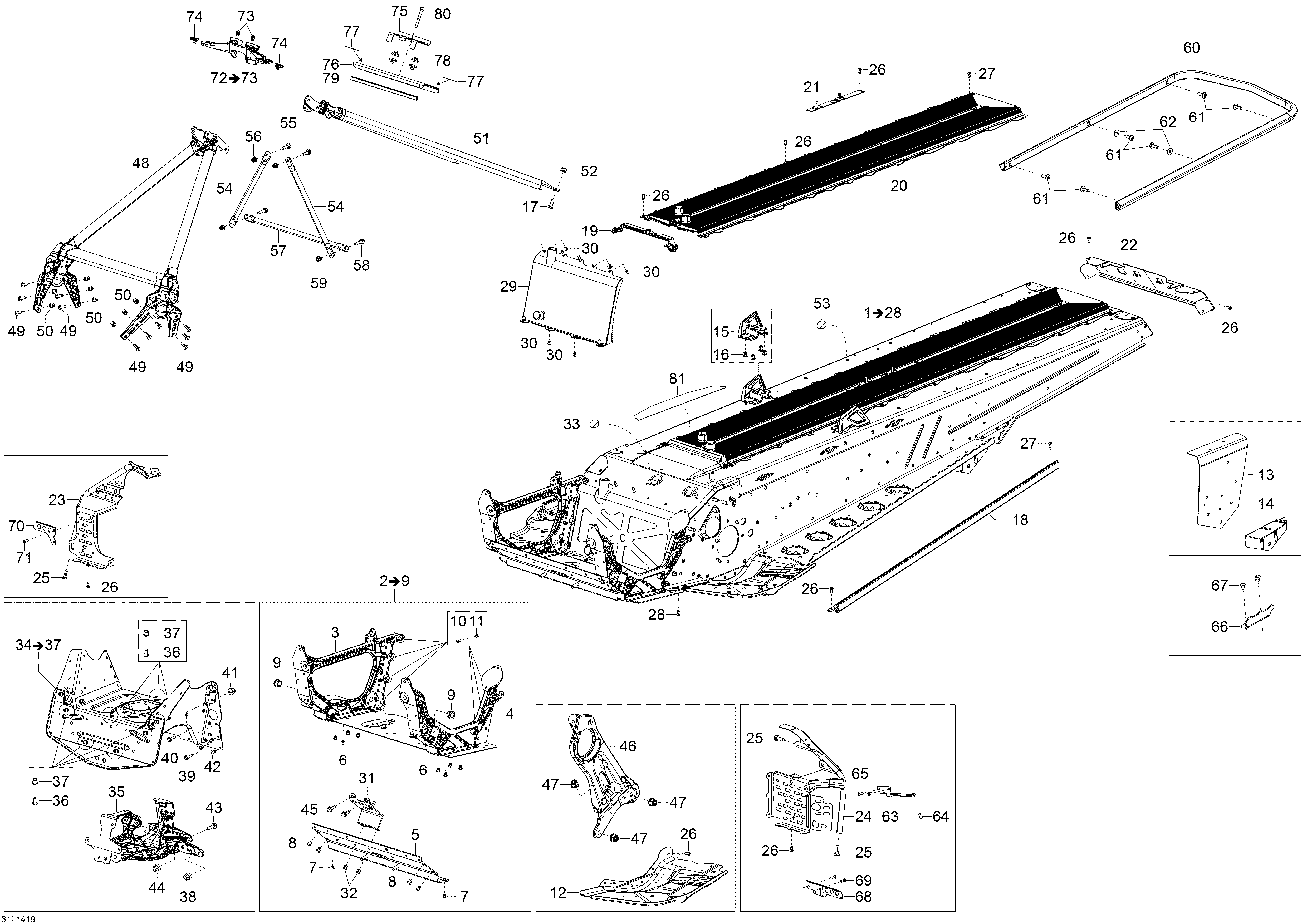

09- Frame для BRP Lynx BoonDocker 600 E-TEC - 2014
-
№АртикулНазвание
-
1518327887 Frame Ass?y. (3700) Includes 1 To 28Frame Ass?y. (3700) Includes 1 To 28
-
1518327888 Frame Ass?y. (3900) Includes 1 To 28Frame Ass?y. (3900) Includes 1 To 28
-
2518327646 E Module. Includes 2 To 9E Module. Includes 2 To 9
-
3518326795 Member RHMember RH
-
4518326796 Member LHMember LH
-
5518326198 Front MemberFront Member
-
6390909100 RivetRivet
-
7293150120 RivetRivet
-
8293150119 RivetRivet
-
9505072690 CushionCushion
-
10207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
11233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
12518328083 Front Tunnel LHFront Tunnel LH
-
12518328084 Front Tunnel RHFront Tunnel RH
-
14518327453 Rear Support LHRear Support LH
-
14518327474 Rear Support RHRear Support RH
-
15518327371 Rear Base RHRear Base RH
-
15518327370 Rear Base LHRear Base LH
-
16293150147 RivetRivet
-
17207182044 Hex. Cap Screw M8 x 20Hex. Cap Screw M8 x 20
-
18518327465 Side ProfileSide Profile
-
19518326656 SealSeal
-
20518326728 Rear Radiator. (3700)Rear Radiator. (3700)
-
20518326692 Rear Radiator. (3900)Rear Radiator. (3900)
-
22518327240 Rear CapRear Cap
-
23518327841 Stirrup RHStirrup RH
-
24518327937 Stirrup LHStirrup LH
-
25250000248 Pan HD Torx Screw M8 x 25Pan HD Torx Screw M8 x 25
-
26390909200 RivetRivet
-
27390909100 RivetRivet
-
28293150096 RivetRivet
-
29518326485 Front RadiatorFront Radiator
-
30390909200 RivetRivet
-
31518325943 MAG SupportMAG Support
-
32293150119 RivetRivet
-
33518325560 Adhesive PatchAdhesive Patch
-
34518327546 Cross Member. Includes 34 To 37Cross Member. Includes 34 To 37
-
35518327475 SupportSupport
-
36207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
37233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
38233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
39210262080 Forming Screw M6 x 20Forming Screw M6 x 20
-
40207662544 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
41233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
42293150179 RivetRivet
-
43207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
44233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
45207661644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
46518327460 Pulley SupportPulley Support
-
47233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
48518327565 Front MemberFront Member
-
49207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
50233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
51518327237 Rear MemberRear Member
-
52233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
53518325560 Adhesive PatchAdhesive Patch
-
54518325114 SupportSupport
-
55207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
56233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
57518325115 Upper ColumnUpper Column
-
58207662556 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
59233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
60518327554 Rear Bumper. (3700)Rear Bumper. (3700)
-
60518327555 Rear Bumper. (3900)Rear Bumper. (3900)
-
61250000402 Torx Truss M6 x 18Torx Truss M6 x 18
-
62224061201 Flat WasherFlat Washer
-
63518328079 Brake Cover SupportBrake Cover Support
-
64390909200 RivetRivet
-
65293150103 Pop Rivet 3/16Pop Rivet 3/16
-
66518328050 Side GripSide Grip
-
67293150119 RivetRivet
-
68518327613 Spring Support Plate LHSpring Support Plate LH
-
69293150103 Pop Rivet 3/16Pop Rivet 3/16
-
70518327614 Spring Support Plate RHSpring Support Plate RH
-
71390909200 RivetRivet
-
72518327145 Support. Includes 72 To 73Support. Includes 72 To 73
-
74250000079 Panel Nut M5Panel Nut M5
-
75513033746 Upper Support PlateUpper Support Plate
-
76513033747 Lower Support PlateLower Support Plate
-
78605452114 Rubber PlugRubber Plug
-
80205065044 Socket HD Screw M6 x 50Socket HD Screw M6 x 50
