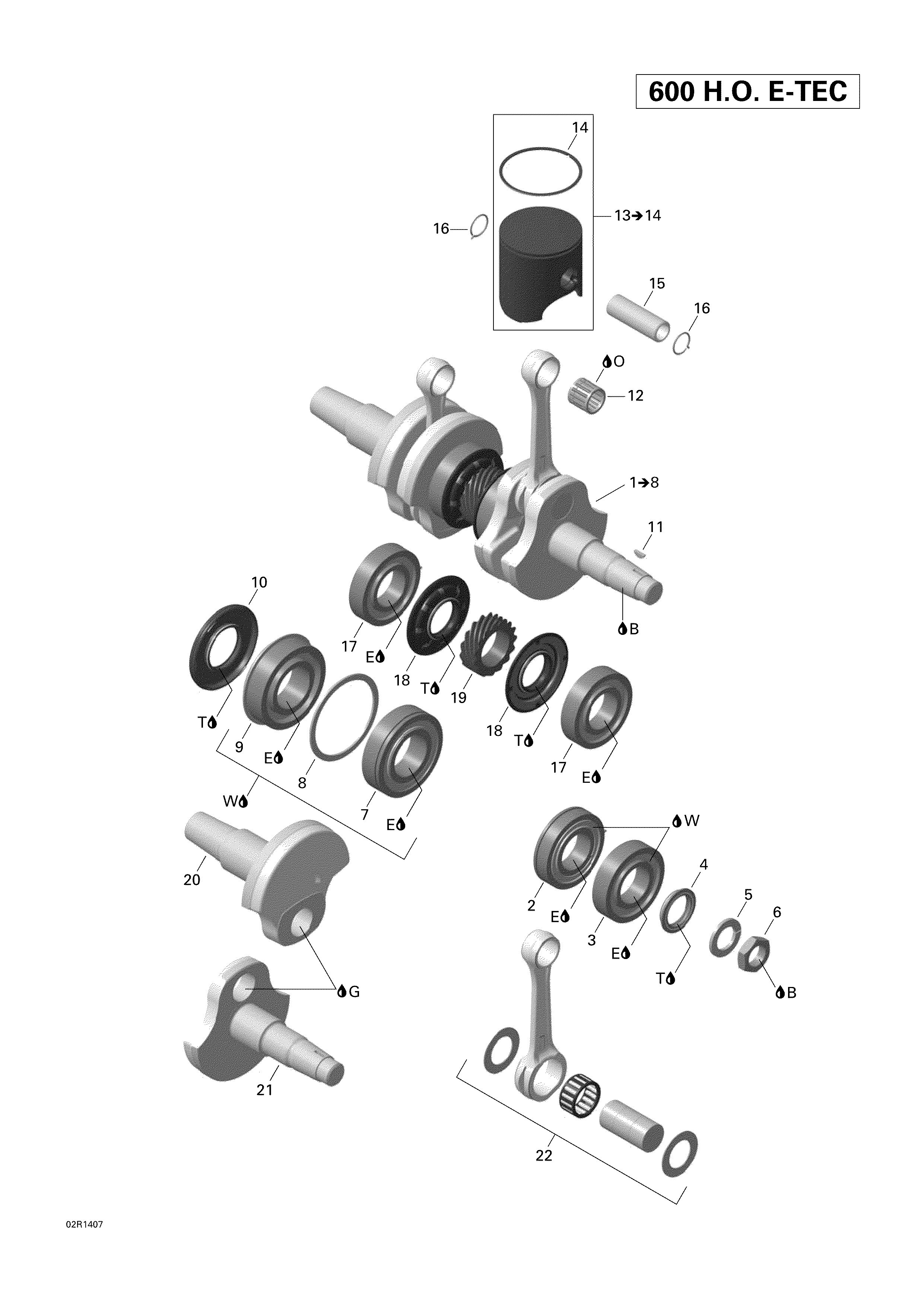

01_Crankshaft and Pistons для BRP Lynx Xtrim Commander 600 E-TEC - 2014

№

Артикул

Название
1

420890953 Crankshaft Ass'y. Includes 1 to 8

Crankshaft Ass'y. Includes 1 to 8

166 180 ₽
2

420832175 Ball Bearing

Ball Bearing

8 620 ₽
3

420832575 Ball Bearing

Ball Bearing

8 480 ₽
4

420931795 Oil Seal

Oil Seal

3 110 ₽
5

420945759 Lock Washer, 22 mm

Lock Washer, 22 mm

660 ₽
6

420842239 Hex. Nut, M22 X 1.5

Hex. Nut, M22 X 1.5

1 610 ₽
7

420832602 Ball Bearing

Ball Bearing

8 950 ₽
8

420926190 Washer

Washer

3 990 ₽
9

420832702 Ball Bearing

Ball Bearing

15 160 ₽
10

420931284 Oil Seal

Oil Seal

14 210 ₽
11

420246015 Woodruff Key

Woodruff Key

1 040 ₽
12

420832445 Needle Bearing

Needle Bearing

5 090 ₽
13

420892388 Piston Ass'y With Rings, 71.89 mm. Includes 13 to 14

Piston Ass'y With Rings, 71.89 mm. Includes 13 to 14

37 920 ₽
14

420815295 Semi-Trapez Ring

Semi-Trapez Ring

17 160 ₽
15

420916412 Piston Pin

Piston Pin

5 280 ₽
16

420845106 Piston Circlip

Piston Circlip

2 410 ₽
17

420832575 Ball Bearing

Ball Bearing

8 480 ₽
18

420931455 Oil Seal

Oil Seal

5 240 ₽
19

420834355 Central Gear

Central Gear

9 030 ₽
20

420818709 Crankshaft, PTO Side

Crankshaft, PTO Side

27 720 ₽
21

420819232 Crankshaft, MAG Side

Crankshaft, MAG Side

0 ₽
22

420890958 Rod Repair Kit, PTO Side

Rod Repair Kit, PTO Side

52 160 ₽
22

420890959 Rod Repair Kit, MAG Side

Rod Repair Kit, MAG Side

52 160 ₽
B

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml

2 760 ₽
E

619600013 Loctite 8151, Antiseize Lubricant, 8 oz

Loctite 8151, Antiseize Lubricant, 8 oz

6 350 ₽
G

619600012 Loctite 609, 10 ml

Loctite 609, 10 ml

8 390 ₽
O

619590101 Injection Oil, 12 X 1 Liter

Injection Oil, 12 X 1 Liter

2 530 ₽
T

619600023 Petamo Grease, GHY133N, 400 g

Petamo Grease, GHY133N, 400 g

11 160 ₽
W

619600025 Isoflex Grease, TOPAS NB52, 50 g

Isoflex Grease, TOPAS NB52, 50 g

42 210 ₽
