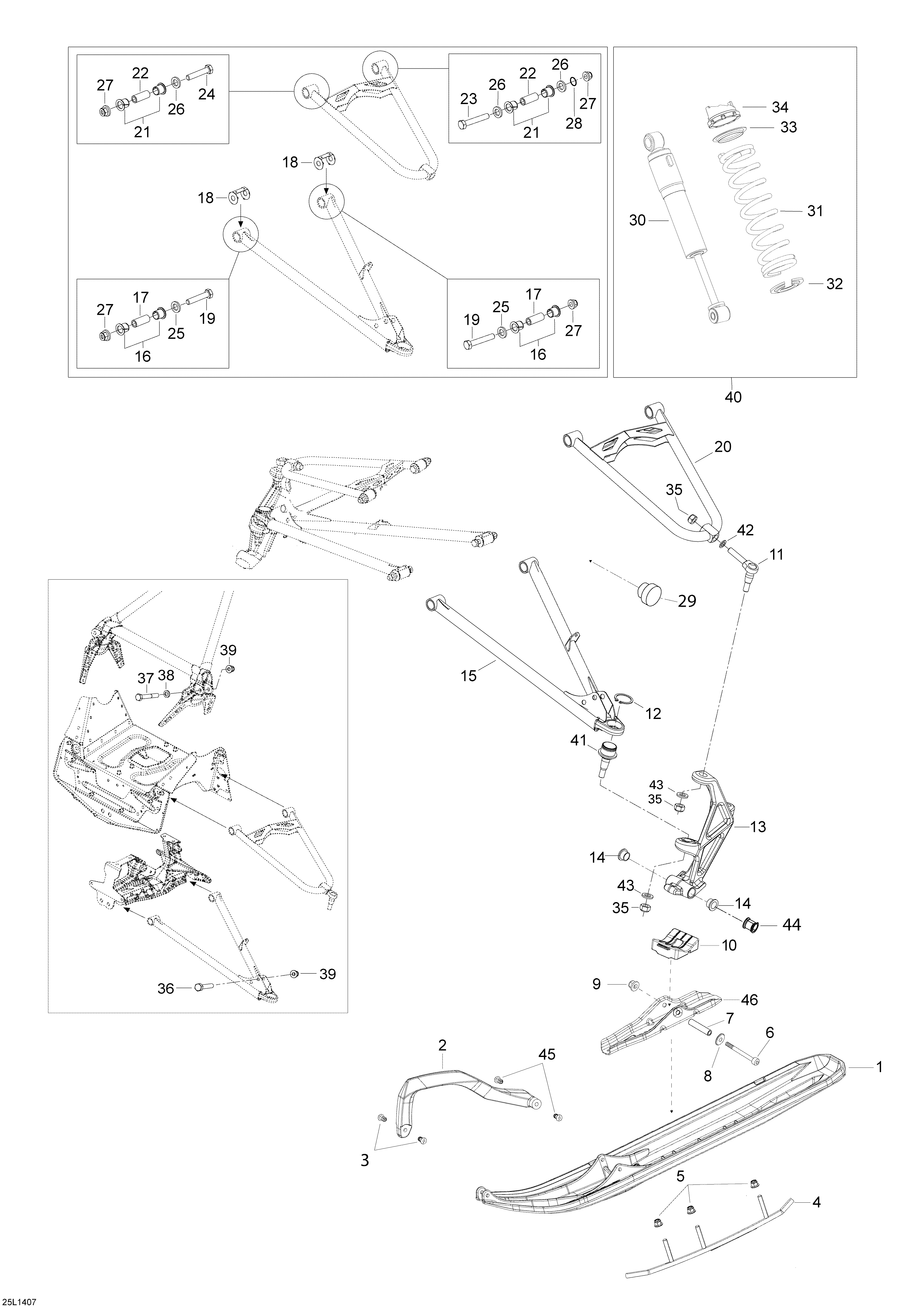

07- Front Suspension And Ski для BRP Lynx Xtrim Commander 600 E-TEC - 2014
-
№АртикулНазвание
-
1505073154 Ski BLADE (Black)Ski BLADE (Black)
-
2505072976 Plastic handle, black BLADEPlastic handle, black BLADE
-
2505073108 Plastic handle, White BLADE. LTD modelsPlastic handle, White BLADE. LTD models
-
3505071812 RetainerRetainer
-
4505073492 Runner (3 carb.)Runner (3 carb.)
-
4605349378 Runner Kit (5 carb.) Opt.Runner Kit (5 carb.) Opt.
-
5233201414 Elastic flanged nut M10Elastic flanged nut M10
-
6230003044 Socket head screw M10 x 130Socket head screw M10 x 130
-
7506133300 Axle skiAxle ski
-
8732900049 WasherWasher
-
9233201414 Elastic stop nut M10Elastic stop nut M10
-
10505073411 Rubber damperRubber damper
-
11505072257 Upper Ball JointUpper Ball Joint
-
12293370035 CirclipCirclip
-
13505073011 LH Ski LegLH Ski Leg
-
13505073012 RH Ski LegRH Ski Leg
-
14505072690 BushingBushing
-
15505072497 RH Lower ArmRH Lower Arm
-
15505072498 LH Lower ArmLH Lower Arm
-
16505073330 CushionCushion
-
17505072393 BushingBushing
-
18505072634 Wear PlateWear Plate
-
19250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
20505072375 Upper ArmUpper Arm
-
21505073329 Swivel BushingSwivel Bushing
-
22505072143 Aluminum BushingAluminum Bushing
-
23250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
24250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
25503189564 WasherWasher
-
26505072392 WasherWasher
-
27250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
29572091300 CapCap
-
30505073342 Front ShockFront Shock
-
31503192286 Spring 14 Nm.Spring 14 Nm.
-
32706200881 Spring StopperSpring Stopper
-
33503191872 Guide-springGuide-spring
-
34505070150 CamCam
-
35250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
36207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
37207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
38503189564 WasherWasher
-
39233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
41505072682 Lower Ball JointLower Ball Joint
-
42503189276 WasherWasher
-
43234021410 Flat Washer 12 mmFlat Washer 12 mm
-
44505071999 SpacerSpacer
-
45505072133 RetainerRetainer
-
46505073240 Ski bridge weldSki bridge weld
