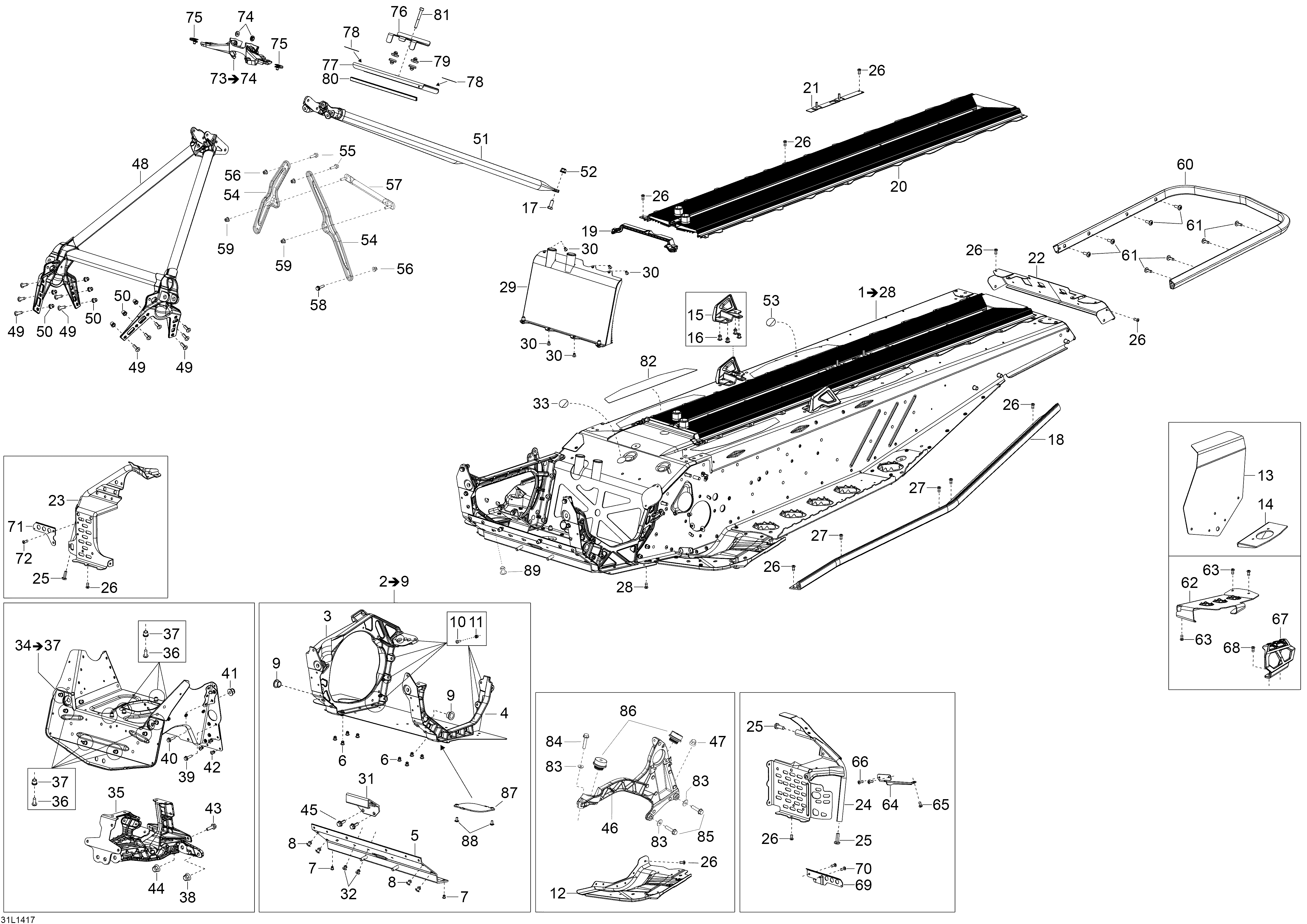

09- Frame для BRP Lynx Xtrim SC 900 ACE - 2014
-
№АртикулНазвание
-
1518327552 Frame Ass?y, Black. Includes 1 To 28Frame Ass?y, Black. Includes 1 To 28
-
2518327754 E Module. Includes 2 To 9E Module. Includes 2 To 9
-
3518326328 Member RHMember RH
-
4518326330 Member LHMember LH
-
5518326198 Front MemberFront Member
-
6390909100 RivetRivet
-
7293150120 RivetRivet
-
8293150119 RivetRivet
-
9505072690 BushingBushing
-
10207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
11233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
12518327242 Front Tunnel LHFront Tunnel LH
-
12518327243 Front Tunnel RHFront Tunnel RH
-
15518327371 Rear Base RHRear Base RH
-
15518327370 Rear Base LHRear Base LH
-
16293150147 RivetRivet
-
17207182044 Hex. Cap Screw M8 x 20Hex. Cap Screw M8 x 20
-
18518327517 Side Profile LHSide Profile LH
-
18518327518 Side Profile RHSide Profile RH
-
19518326656 SealSeal
-
20518326786 Rear RadiatorRear Radiator
-
22518327240 Rear CapRear Cap
-
23518327841 Stirrup RHStirrup RH
-
24518327937 Stirrup LHStirrup LH
-
25250000248 Pan HD Torx Screw M8 x 25Pan HD Torx Screw M8 x 25
-
26390909200 RivetRivet
-
27390909100 RivetRivet
-
28293150096 RivetRivet
-
29518327907 Front RadiatorFront Radiator
-
30390909200 RivetRivet
-
31518326178 MAG SupportMAG Support
-
32293150119 RivetRivet
-
33518325560 Adhesive PatchAdhesive Patch
-
34518327553 Cross Member, 4-TECCross Member, 4-TEC
-
35518327475 SupportSupport
-
36207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
37233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
38233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
39210262080 Forming Screw M6 x 20Forming Screw M6 x 20
-
40207662544 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
41233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
42293150179 RivetRivet
-
43207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
44233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
45207661644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
46518327535 BraceBrace
-
47233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
48518327565 Front MemberFront Member
-
49207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
50233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
51518327237 Rear MemberRear Member
-
52233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
53518325560 Adhesive PatchAdhesive Patch
-
54518326848 SupportSupport
-
55207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
56233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
57518326355 Upper ColumnUpper Column
-
58207662556 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
59233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
60518328086 Rear BumperRear Bumper
-
61250000402 Torx Truss M6 x 18Torx Truss M6 x 18
-
62518327979 Footrest LH, BlackFootrest LH, Black
-
62518327980 Footrest RH, BlackFootrest RH, Black
-
6336005 RivetRivet
-
64518328079 Brake Cover SupportBrake Cover Support
-
65390909200 RivetRivet
-
66293150103 Pop RivetPop Rivet
-
67518327507 Side Foot Support LHSide Foot Support LH
-
67518327508 Side Foot Support RHSide Foot Support RH
-
68293150183 RivetRivet
-
69518327613 Spring Support Plate LHSpring Support Plate LH
-
70293150103 Pop Rivet 3/16Pop Rivet 3/16
-
71518327614 Spring Support Plate RHSpring Support Plate RH
-
72390909200 RivetRivet
-
73518327145 Support. Includes 73 To 74Support. Includes 73 To 74
-
75250000079 Panel Nut M5Panel Nut M5
-
76513033746 Upper Support PlateUpper Support Plate
-
77513033747 Lower Support PlateLower Support Plate
-
78516006434 Protection DecalProtection Decal
-
79605452114 Rubber PlugRubber Plug
-
80293740049 Sealing ListSealing List
-
81205065044 Socket HD Screw M6 x 50Socket HD Screw M6 x 50
-
83234281474 Spring WasherSpring Washer
-
84207584044 Hex. Flange Screw M8 x 40Hex. Flange Screw M8 x 40
-
85205083544 Socket HD. Screw M8 x 35Socket HD. Screw M8 x 35
-
86512060295 Rubber MountRubber Mount
-
87518326757 Oil PlateOil Plate
-
88250000325 Torx-Truss M6 x 12Torx-Truss M6 x 12
-
89293730042 DartDart
